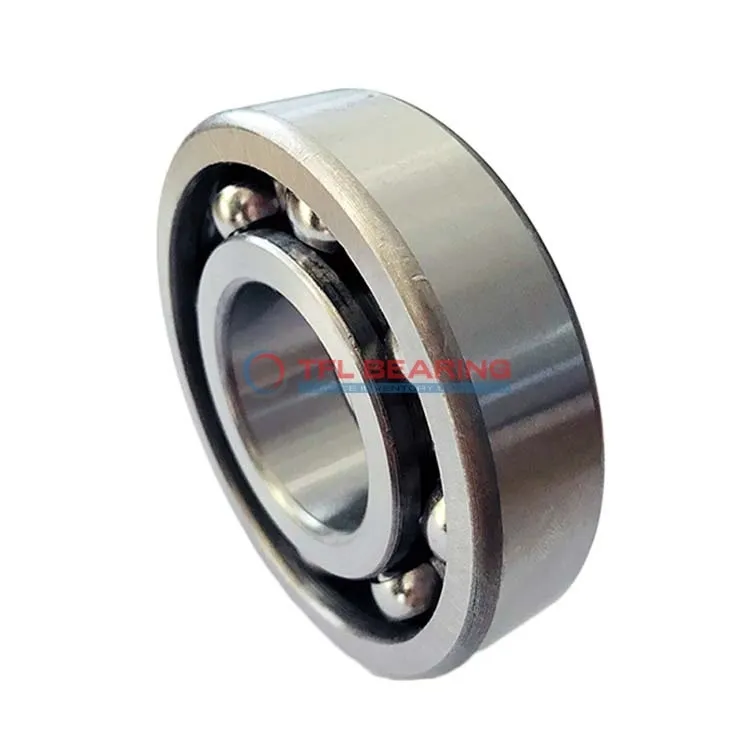

Single Row Deep Groove Ball Bearings 6305 ETN9/C3

The 6305 ETN9/C3 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5845 lbf and spins smoothly at speeds up to 16,000 RPM.
Its open design and nylon cage reduce friction, making it efficient for various applications. The bearing operates well in temperatures from -30°C to 120°C.
With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. Ideal for electric motors, pumps, or industrial gearboxes where reliability is key.
Weighing just 0.22kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6305 ETN9/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 25 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.011mm to 0
Width 17 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 5845 lbf
Static Radial Load 3012 lbf
Max Speed 16000 rpm
Weight 0.22 kg
price（$） 4.815

Single Row Deep Groove Ball Bearings 6305 ETN9/C3 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6305 ETN9/C3 Bearing

6305 ETN9/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5845 lbf.
Its nylon cage ensures smooth operation and reduces friction, making it suitable for high-speed applications.
The open design allows for easy maintenance and lubrication, extending its service life.
With a maximum speed of 16,000 rpm, it delivers reliable performance in various conditions.

Application

Industrial Uses of 6305 ETN9/C3 Bearing
The 6305 ETN9/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance.
Its open design and C3 clearance make it suitable for applications with moderate speed and temperature variations.

How Does 6305 ETN9/C3 Bearing Improve Performance?
In automotive applications, 6305 ETN9/C3 Bearing enhances the efficiency of alternators and fans due to its smooth operation.
The chrome steel construction provides durability, while the nylon cage reduces friction for longer service life.

Perfect Fit for Automation: 6305 ETN9/C3 Bearing
This bearing is ideal for robotic arms and conveyor systems, where precision and low maintenance are key.
The metric sizing ensures compatibility with a wide range of automated equipment across industries.

Medical vs Industrial: Where 6305 ETN9/C3 Bearing Excels
In medical devices like centrifuges, 6305 ETN9/C3 Bearing offers quiet and reliable performance.
For industrial uses, its ability to handle radial loads makes it a go-to choice for gearboxes and compressors.

Where Is 6305 ETN9/C3 Bearing Used?
You’ll find 6305 ETN9/C3 Bearing in household appliances like washing machines, where its durability stands out.
The temperature range and load capacity make it versatile for both light and medium-duty applications.
