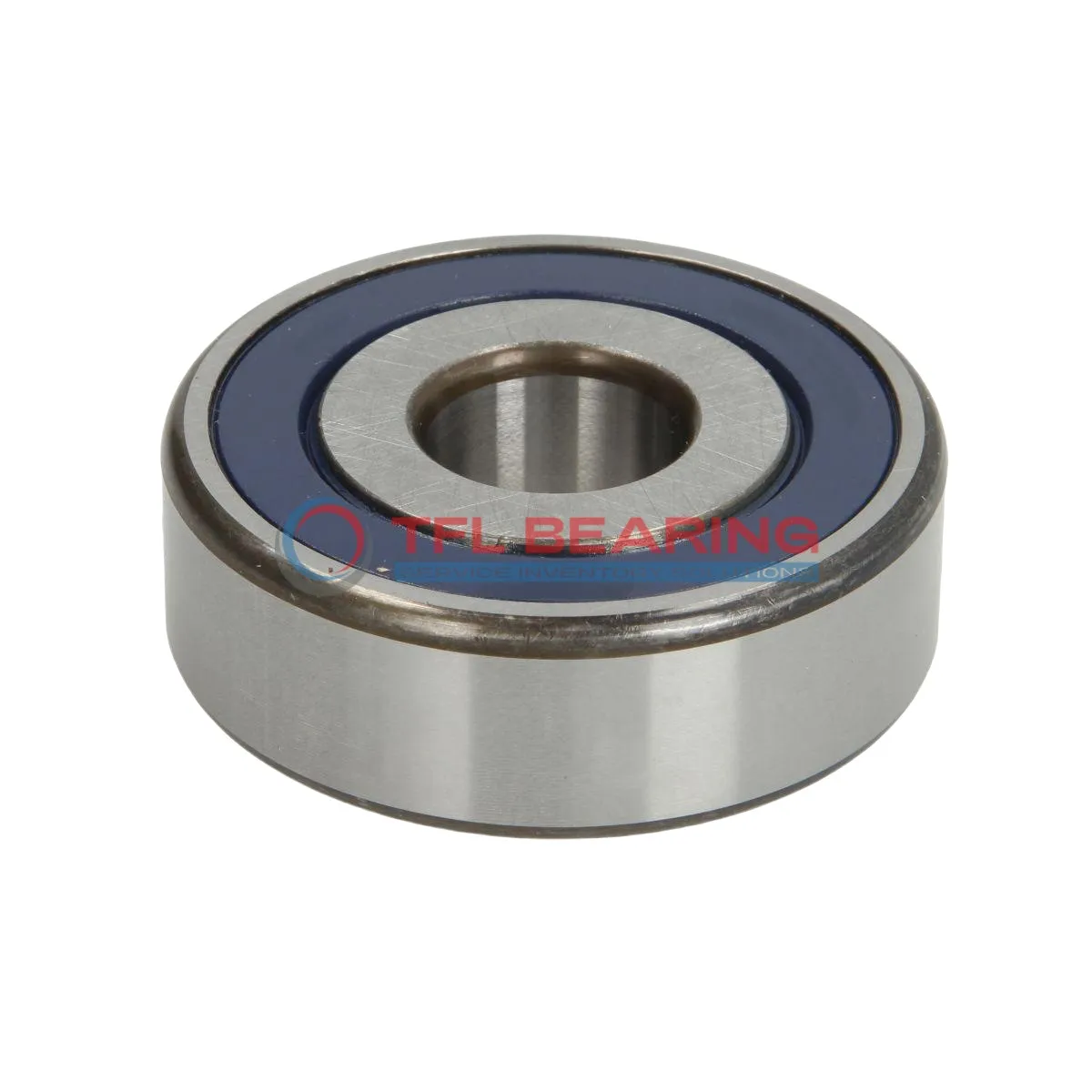

Single Row Deep Groove Ball Bearings 6305-2RS1/LHT55

Single Row Deep Groove Ball Bearings 6305-2RS1/LHT55

The 6305-2RS1/LHT55 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, and it works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. It’s ideal for electric motors, pumps, or machinery where reliable radial load support is needed.

Weighing 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/LHT55
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
  • price（$） 4.455
Single Row Deep Groove Ball Bearings 6305-2RS1/LHT55 dimension drawing
Download DWG Download PDF

Features

How Does 6305-2RS1/LHT55 Bearing Reduce Friction?

6305-2RS1/LHT55 Bearing features a single-row deep groove design, optimised for smooth radial load handling.

The sealed construction helps keep contaminants out, ensuring consistent performance over time.

Made from chrome steel, it offers good resistance to wear and operates quietly even at high speeds.

With a maximum speed of 11,000 rpm, it balances efficiency and durability in various applications.

Application

Common Applications of 6305-2RS1/LHT55 Bearing
6305-2RS1/LHT55 Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6305-2RS1/LHT55 Bearing can be found in components such as alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6305-2RS1/LHT55 Bearing works well in washing machines and fans, offering smooth operation and long service life. The sealed feature is particularly useful in preventing contamination from household dust.

In automation systems, 6305-2RS1/LHT55 Bearing supports robotic arms and small machinery, where precision and reliability are key. The ABEC 1 tolerance ensures consistent performance in these applications.
