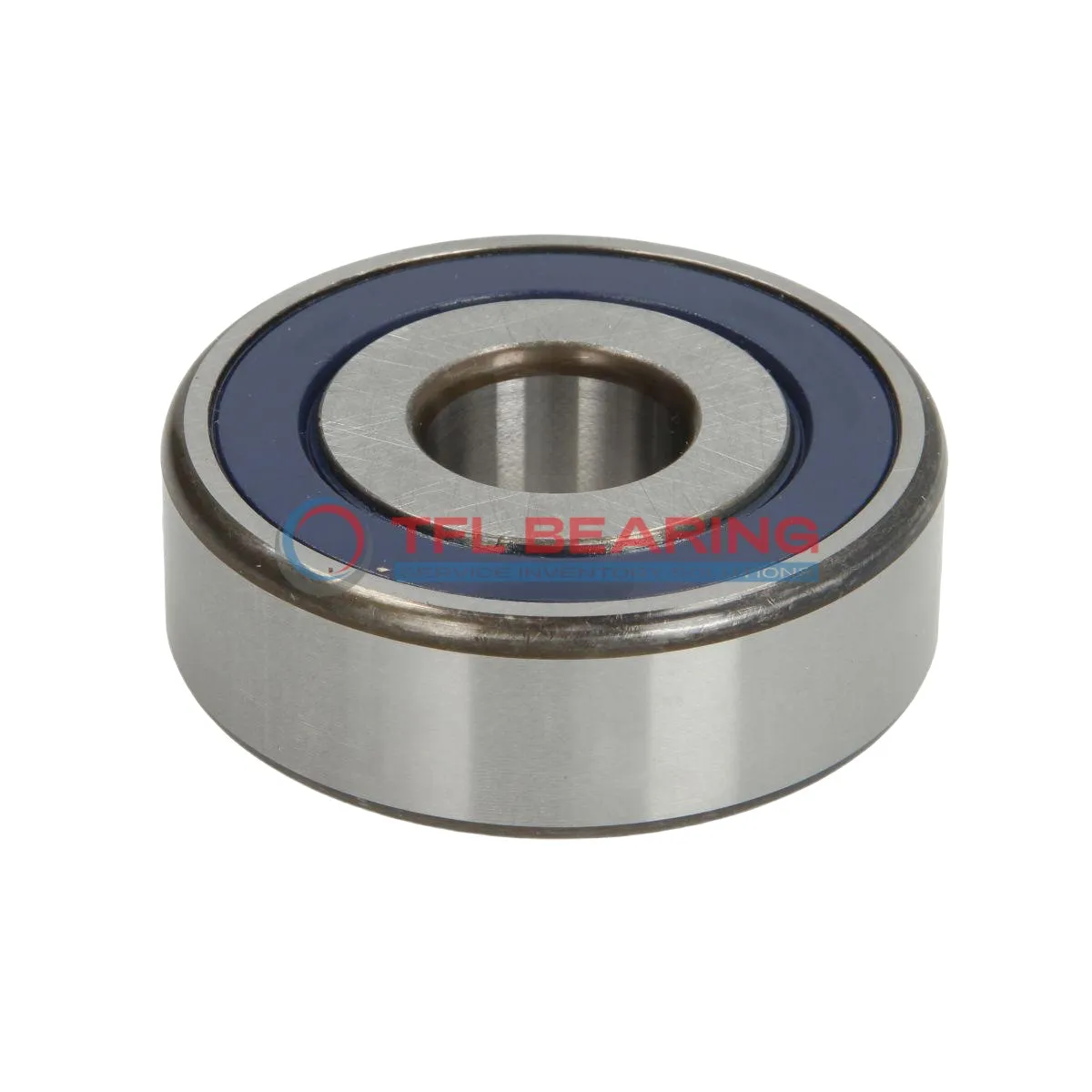

Single Row Deep Groove Ball Bearings 6305-2RS1/C4

Single Row Deep Groove Ball Bearings 6305-2RS1/C4

The 6305-2RS1/C4 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 4631 lbf and can reach speeds of 11000 RPM, making it versatile for various applications.

Its sealed design keeps dirt out and lubrication in, reducing maintenance needs. The chrome steel cage adds durability, ensuring smooth operation even under stress.

This bearing works well in temperatures from -30°C to 120°C, suitable for both industrial and automotive uses. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing just 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for radial load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
Single Row Deep Groove Ball Bearings 6305-2RS1/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305-2RS1/C4 Bearing

6305-2RS1/C4 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4631 lbf, ensuring reliable performance in various applications.

The sealed design of 6305-2RS1/C4 Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 11,000 rpm, it delivers smooth and efficient operation.

6305-2RS1/C4 Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
Its C4 radial clearance provides flexibility for thermal expansion in high-speed applications.

Application

Industrial Uses of 6305-2RS1/C4 Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C4 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6305-2RS1/C4 Bearing Used?
You’ll often find 6305-2RS1/C4 Bearing in automotive applications like alternators and water pumps, thanks to its radial load capacity. The chrome steel construction also makes it durable for long-term use.

Perfect Fit for Automation: 6305-2RS1/C4 Bearing
In robotic arms and automated machinery, 6305-2RS1/C4 Bearing offers smooth rotation and low maintenance. Its sealed design is ideal for environments where contamination must be avoided.

Medical vs Industrial: Where 6305-2RS1/C4 Bearing Excels
While 6305-2RS1/C4 Bearing handles industrial loads well, it’s also suitable for medical devices like centrifuges. The temperature range ensures stability in both high-use and precision settings.

How Does 6305-2RS1/C4 Bearing Support High-Speed Operations?
With a max speed of 11,000 rpm, 6305-2RS1/C4 Bearing works well in fans and small machinery. The ABEC 1 tolerance provides consistent performance without over-engineering.
