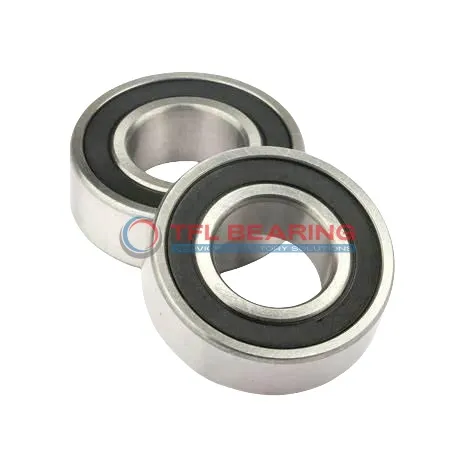

Single Row Deep Groove Ball Bearings 6305/17-2RS1/C3HTVP101

Single Row Deep Groove Ball Bearings 6305/17-2RS1/C3HTVP101

The 6305/17-2RS1/C3HTVP101 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305/17-2RS1/C3HTVP101
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g

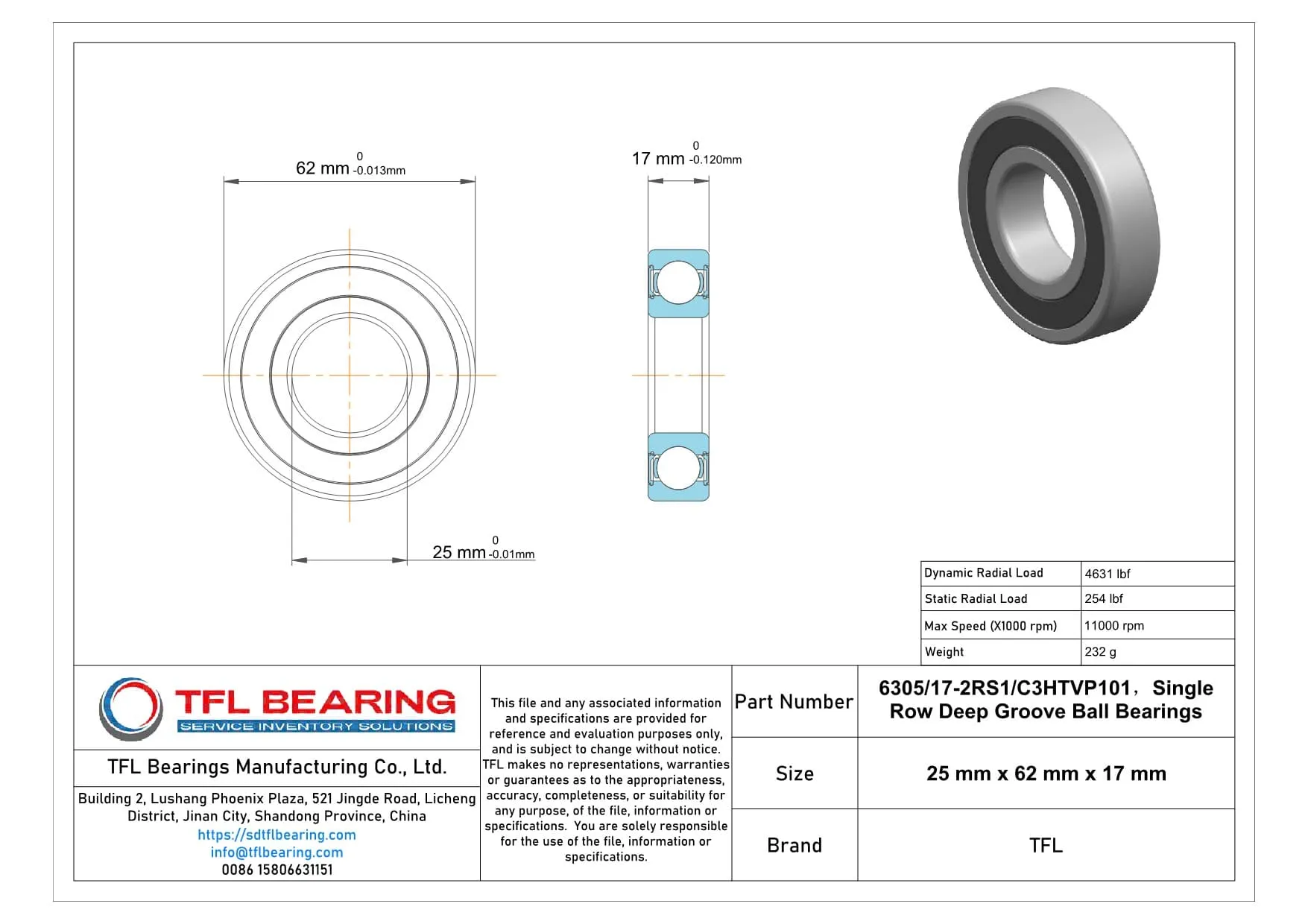

Single Row Deep Groove Ball Bearings 6305/17-2RS1/C3HTVP101 dimension drawing
Download DWG Download PDF

Features

Why Choose 6305/17-2RS1/C3HTVP101 Bearing for Precision Tasks?

6305/17-2RS1/C3HTVP101 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 4631 lbf, it handles demanding conditions while maintaining smooth operation.
The bearing operates efficiently at speeds up to 11,000 rpm, balancing speed and reliability.

Designed for temperatures from -30°C to 120°C, it performs well in varied environments.
The C3 radial clearance provides flexibility, reducing friction and extending service life.

Application

Practical Applications of 6305/17-2RS1/C3HTVP101 Bearing
In industrial settings, 6305/17-2RS1/C3HTVP101 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6305/17-2RS1/C3HTVP101 Bearing Used?
You’ll often find 6305/17-2RS1/C3HTVP101 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load capacity. The chrome steel construction also makes it durable for long-term use.

Built for Heavy-Duty Use: 6305/17-2RS1/C3HTVP101 Bearing
This bearing excels in conveyor systems and gearboxes, where its high dynamic radial load rating comes in handy. The sealed design is particularly useful in dusty or wet environments.

Automotive vs Industrial: Applications of 6305/17-2RS1/C3HTVP101 Bearing
In cars, 6305/17-2RS1/C3HTVP101 Bearing handles radial loads in components like fans and compressors. For factories, it’s a go-to choice for machinery requiring consistent performance under moderate speeds.
