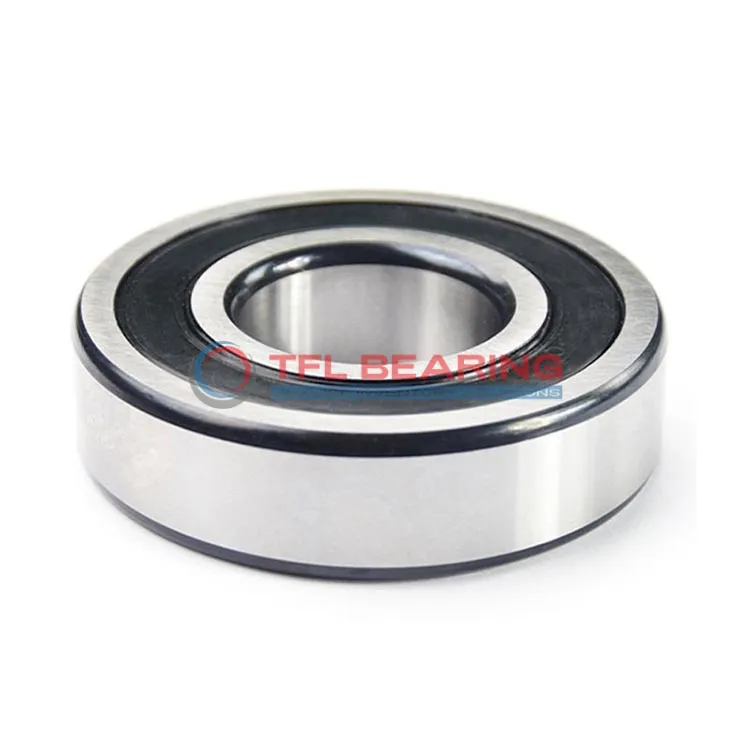

Single Row Deep Groove Ball Bearings 6302-RS1Z

Single Row Deep Groove Ball Bearings 6302-RS1Z

The 6302-RS1Z is a compact single-row deep groove ball bearing, measuring 15mm by 42mm by 13mm, crafted from sturdy chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its one-side shielded and one-side sealed design keeps dirt out while retaining lubrication, making it low-maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for electric motors or small machinery where radial loads are common.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-RS1Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type One Side Shielded,One Side Seal
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
Single Row Deep Groove Ball Bearings 6302-RS1Z dimension drawing
Download DWG Download PDF

Features

How Does 6302-RS1Z Bearing Reduce Friction?

6302-RS1Z Bearing features a single row deep groove design, optimised for smooth radial load handling.

The chrome steel construction ensures durability while reducing friction during operation.

With a dynamic radial load capacity of 2563 lbf, it performs reliably in various applications.

Its one-side shielded and one-side sealed design helps keep contaminants out, extending service life.

Application

Common Applications of 6302-RS1Z Bearing
The 6302-RS1Z Bearing works well in small electric motors, such as those found in household appliances. Its shielded design helps keep dust out while maintaining smooth rotation.

Industrial Uses of 6302-RS1Z Bearing
This bearing is commonly used in conveyor systems, where its radial load capacity handles constant movement. The chrome steel construction ensures long service life even in demanding conditions.

Where Is 6302-RS1Z Bearing Used?
You’ll often find 6302-RS1Z Bearing in power tools like drills and sanders. Its balanced design reduces vibration during high-speed operation.

Built for Versatility: 6302-RS1Z Bearing
This bearing fits nicely in automotive components such as alternators and water pumps. The sealed side protects against contaminants in engine environments.

Light-Duty vs Heavy-Duty: Best Uses for 6302-RS1Z Bearing
While suitable for light machinery, 6302-RS1Z Bearing also performs well in agricultural equipment. Its wide temperature range makes it adaptable to various working conditions.
