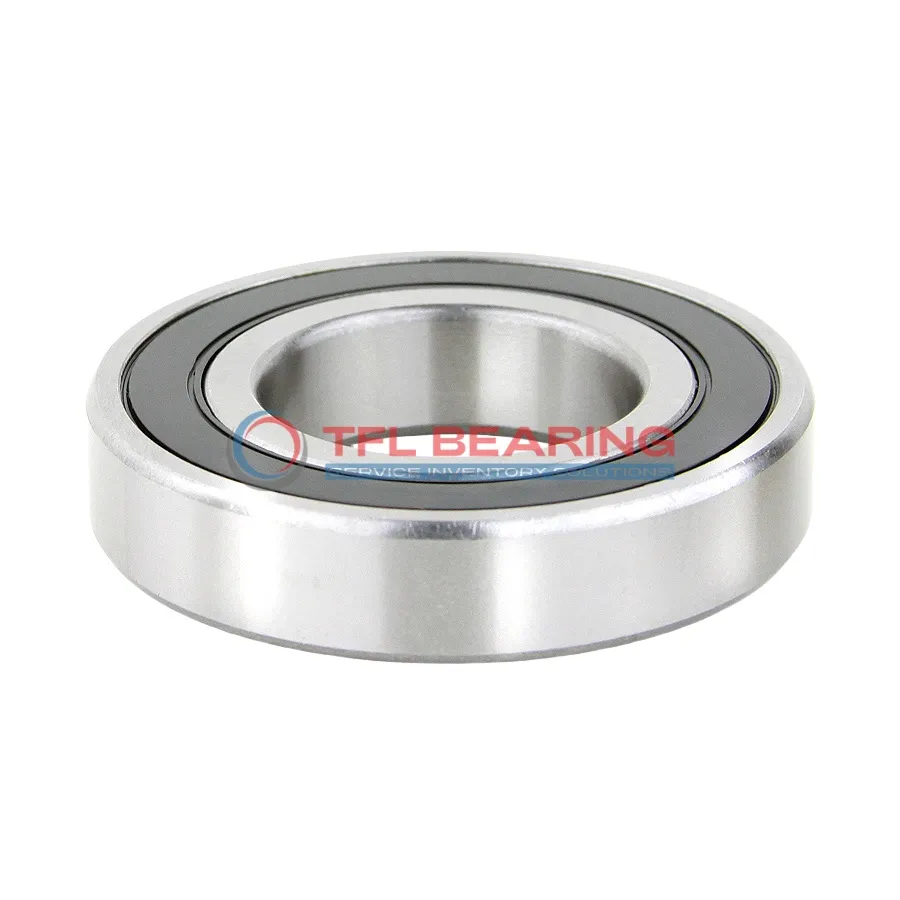

Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64

Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64

The 6302-2RSH/C3W64 is a single-row deep groove ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps out dust and moisture, while the solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-2RSH/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
  • price（$） 6.282
Single Row Deep Groove Ball Bearings 6302-2RSH/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6302-2RSH/C3W64 Bearing Reduce Friction?

6302-2RSH/C3W64 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its sealed construction and solid oil lubrication minimise friction, ensuring quiet and efficient operation.
The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 17,000 rpm, it delivers reliable performance across a wide temperature range.

Application

Essential Roles of 6302-2RSH/C3W64 Bearing
6302-2RSH/C3W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.
In automotive applications, 6302-2RSH/C3W64 Bearing fits well in alternators and small gearboxes, providing reliable radial load support. Its C3 clearance allows for slight misalignments without compromising performance.
For household appliances, 6302-2RSH/C3W64 Bearing works quietly in washing machines and fans, thanks to its smooth operation. The chrome steel construction makes it resistant to everyday wear and tear.
Robotics and automation systems benefit from 6302-2RSH/C3W64 Bearing’s precision, especially in robotic arms and conveyor belts. The metric sizing ensures easy integration with standard components.
