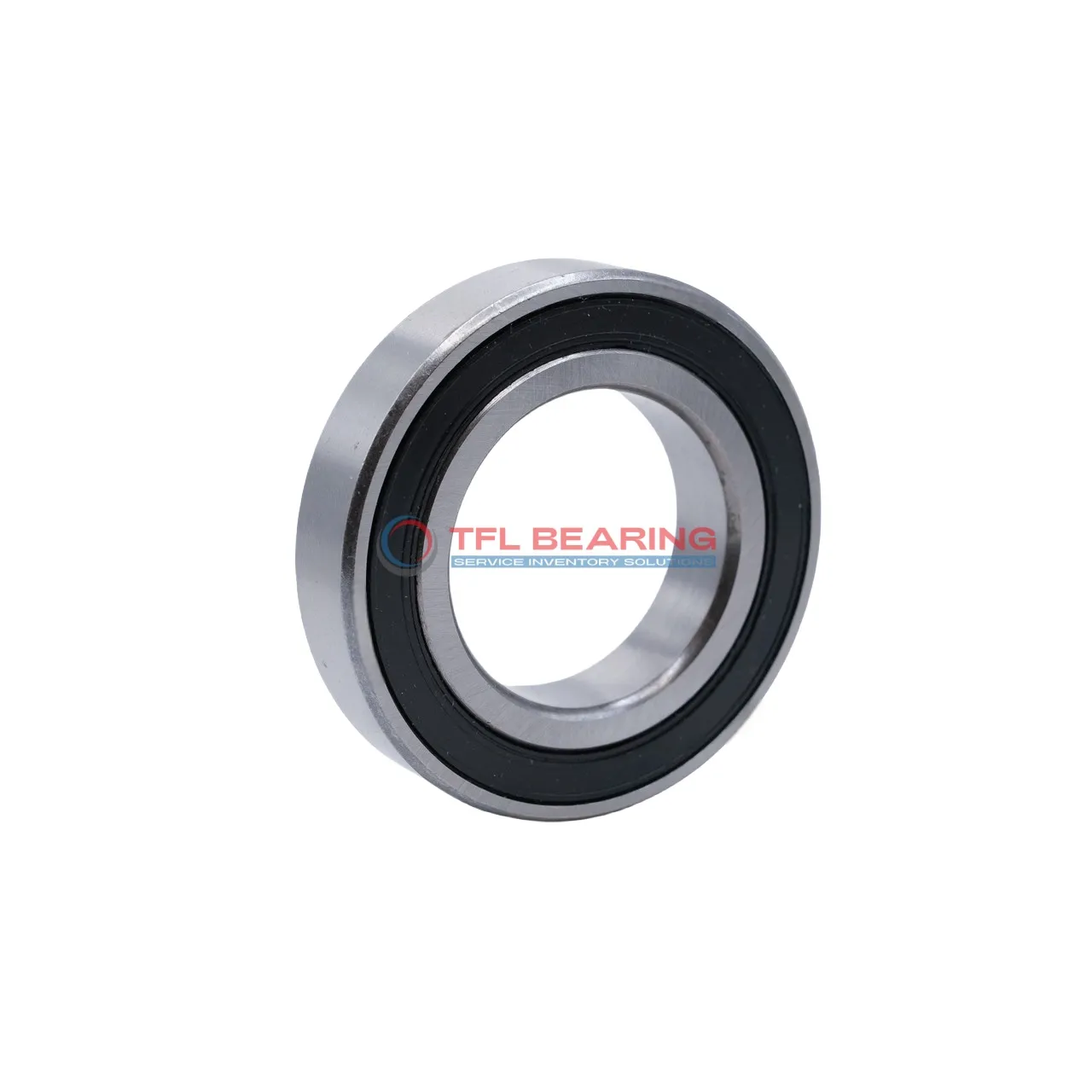

Single Row Deep Groove Ball Bearings 63008-2RS1

Single Row Deep Groove Ball Bearings 63008-2RS1

The 63008-2RS1 is a sealed single-row deep groove ball bearing, measuring 40mm by 68mm by 21mm, crafted from sturdy chrome steel for durability. It handles radial loads up to 3777 lbf and operates smoothly at speeds up to 6300 RPM.

Its sealed design keeps grease in and contaminants out, reducing maintenance needs. The stainless steel cage ensures reliable performance even under continuous use. Suitable for temperatures ranging from -30°C to 120°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing 0.27kg, it offers a good balance of strength and lightweight design. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63008-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3777 lbf
  • Static Radial Load 2473 lbf
  • Max Speed 6300 rpm
  • Weight 0.27 kg
  • price（$） 13.32
Single Row Deep Groove Ball Bearings 63008-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 63008-2RS1 Bearing for Precision Tasks?

63008-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The grease lubrication reduces friction, allowing smooth operation up to 6,300 rpm.
With a dynamic radial load capacity of 3777 lbf, it handles demanding tasks reliably.

63008-2RS1 Bearing operates in temperatures from -30° to 120°C, suitable for varied environments.
The stainless steel cage maintains ball alignment, extending the bearing’s service life.

Application

Common Applications of 63008-2RS1 Bearing
63008-2RS1 Bearing works well in industrial machinery like conveyor belts and pumps, where its sealed design keeps out dust and debris. The chrome steel construction ensures it can handle radial loads with ease.

In automotive applications, 63008-2RS1 Bearing fits nicely into wheel hubs and electric motors, providing smooth rotation. Its grease lubrication helps maintain performance even under constant use.

For home appliances, 63008-2RS1 Bearing is a reliable choice for washing machines and fans. The stainless steel cage adds durability, making it last longer in everyday use.

Where Is 63008-2RS1 Bearing Used?
You’ll often find 63008-2RS1 Bearing in machinery like gearboxes and compressors, where its radial load capacity shines. The sealed design also makes it suitable for dusty or wet environments.

In robotics, 63008-2RS1 Bearing supports joints and moving parts, ensuring precise movement. Its P6 tolerance class means it’s built for accuracy in demanding applications.

Built for Heavy-Duty Use: 63008-2RS1 Bearing
63008-2RS1 Bearing handles tough conditions in construction equipment, thanks to its robust chrome steel rings. The grease lubrication keeps it running smoothly even under heavy loads.

In agricultural machinery, 63008-2RS1 Bearing stands up to harsh conditions like dirt and moisture. Its sealed design helps prolong its lifespan in these challenging environments.

Light-Duty vs Heavy-Duty: Best Uses for 63008-2RS1 Bearing
For light-duty tasks, 63008-2RS1 Bearing works well in office printers and small tools. Its compact size and sealed design make it a practical choice for everyday devices.

In heavy-duty settings, 63008-2RS1 Bearing excels in industrial fans and hydraulic systems. The high dynamic radial load capacity ensures reliable performance under pressure.
