Single Row Deep Groove Ball Bearings 63005-2RS1/W64

Single Row Deep Groove Ball Bearings 63005-2RS1/W64

The 63005-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 16mm, crafted from sturdy chrome steel. It handles radial loads up to 2518 lbf and spins smoothly at speeds up to 9500 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The solid oil lubrication ensures long-lasting performance even in demanding conditions.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, suitable for various industrial applications.

Weighing just 0.11kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for machinery like electric motors or pumps.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63005-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2518 lbf
  • Static Radial Load 1472 lbf
  • Max Speed 9500 rpm
  • Weight 0.11 kg
  • price（$） 12.249

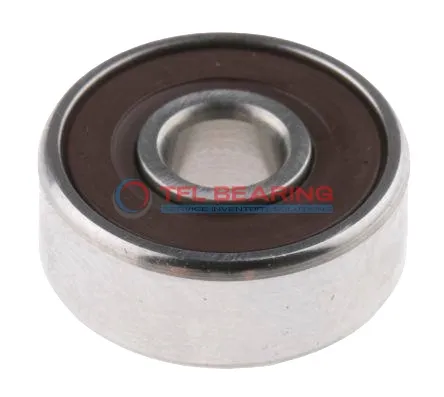

Single Row Deep Groove Ball Bearings 63005-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 63005-2RS1/W64 Bearing for Precision Tasks?

63005-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and minimal maintenance.
Its chrome steel construction provides excellent resistance to wear, making it suitable for radial load applications.
With a dynamic radial load capacity of 2518 lbf, it handles demanding tasks with ease.
The bearing operates efficiently within a temperature range of -30°C to 120°C, offering reliable performance in various conditions.

Application

Industrial Uses of 63005-2RS1/W64 Bearing
The 63005-2RS1/W64 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. Its solid oil lubrication ensures smooth operation even in demanding industrial environments.

What Makes 63005-2RS1/W64 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 63005-2RS1/W64 Bearing offers reliable performance with minimal maintenance. The chrome steel construction provides excellent durability under radial loads.

Perfect Fit for Automation: 63005-2RS1/W64 Bearing
This bearing works well in robotic arms and automated assembly lines, thanks to its consistent performance and sealed protection. The ABEC 1 tolerance ensures sufficient precision for most automation tasks.

Medical vs Industrial: Where 63005-2RS1/W64 Bearing Excels
While suitable for medical devices like dental drills, 63005-2RS1/W64 Bearing truly shines in industrial gearboxes and compressors. Its wide temperature range allows use in various operating conditions.

How Does 63005-2RS1/W64 Bearing Support High-Speed Operations?
With a maximum speed of 9,500 rpm, 63005-2RS1/W64 Bearing performs reliably in fans and small machinery. The sealed design prevents lubricant leakage during continuous operation.
