Single Row Deep Groove Ball Bearings 63004-2RS1

Single Row Deep Groove Ball Bearings 63004-2RS1

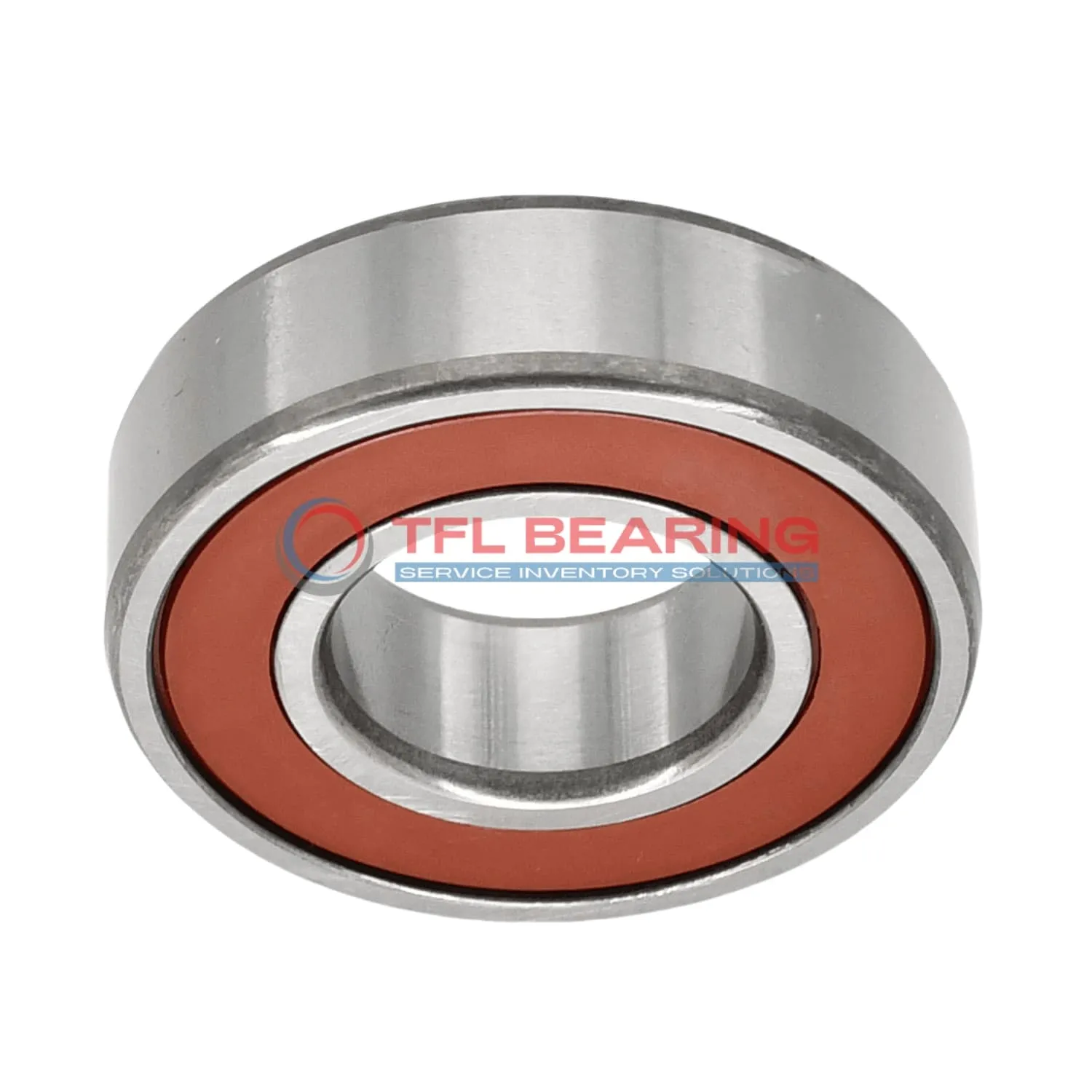

The 63004-2RS1 is a compact single-row deep groove ball bearing, measuring 20mm by 42mm by 16mm. Made from chrome steel, it’s built to handle radial loads up to 2104 lbf and speeds reaching 11000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The stainless steel cage adds durability, ensuring smooth rotation even under stress.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, suitable for various industrial settings.

Ideal for applications like electric motors or small machinery where space is limited but performance is key. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63004-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2104 lbf
  • Static Radial Load 1124 lbf
  • Max Speed 11000 rpm
  • price（$） 8.01
Single Row Deep Groove Ball Bearings 63004-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 63004-2RS1 Bearing

63004-2RS1 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.

Its sealed design protects against dust and moisture, making it suitable for various environments.

With a dynamic radial load capacity of 2104 lbf, it ensures reliable performance in demanding applications.

The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s service life.

Application

Common Applications of 63004-2RS1 Bearing
63004-2RS1 Bearing is widely used in industrial equipment like conveyor belts and small electric motors, where its sealed design keeps out dust and debris. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 63004-2RS1 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 63004-2RS1 Bearing works smoothly in devices like washing machines and fans, thanks to its grease lubrication and low maintenance needs. The sealed design also helps prolong its lifespan in everyday use.

How Does 63004-2RS1 Bearing Support High-Speed Operations?
63004-2RS1 Bearing handles high-speed rotations efficiently, making it suitable for tools like grinders and small drills. The stainless steel cage reduces friction, ensuring smooth performance.

Its precision tolerance class (P6) ensures consistent operation in applications like 3D printers, where accuracy is key. The sealed design also protects against contaminants, maintaining reliability over time.
