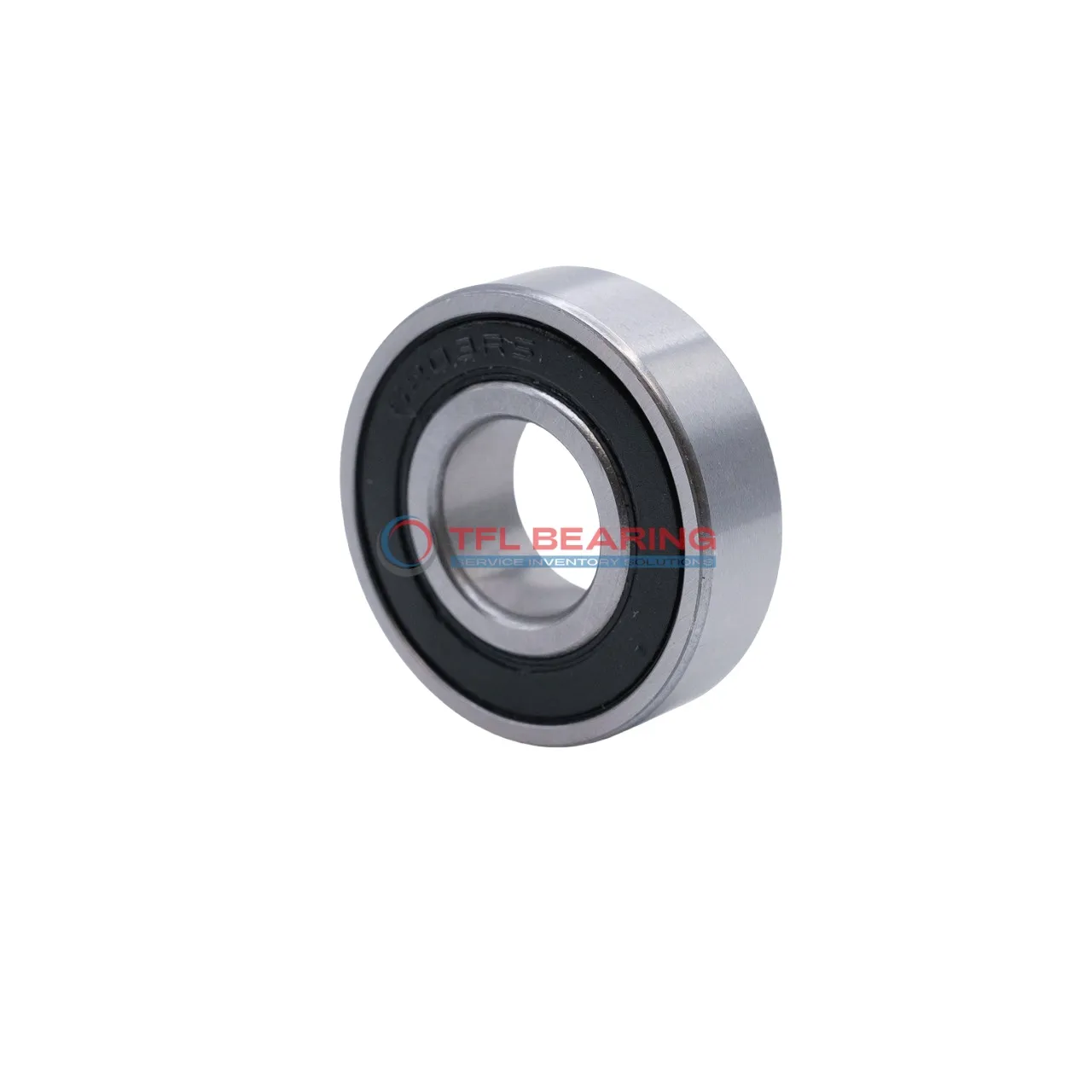

Single Row Deep Groove Ball Bearings 629-2RSLTN9/C3

Single Row Deep Groove Ball Bearings 629-2RSLTN9/C3

The 629-2RSLTN9/C3 is a compact single-row deep groove ball bearing, measuring 9mm by 26mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 873 lbf and spins smoothly at speeds up to 28,000 RPM.

Its sealed design keeps dirt out and grease in, while the nylon cage reduces noise and friction. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for small motors, fans, or appliances where quiet operation is key.

Weighing just 19g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 629-2RSLTN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 873 lbf
  • Static Radial Load 357 lbf
  • Max Speed 28000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 629-2RSLTN9/C3 dimension drawing
Download DWG Download PDF

Features

How Does 629-2RSLTN9/C3 Bearing Reduce Friction?

629-2RSLTN9/C3 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel rings and balls ensure low friction, enhancing operational efficiency.

The sealed design of 629-2RSLTN9/C3 Bearing protects against contaminants, maintaining performance in various conditions.
With a maximum speed of 28,000 rpm, it delivers reliable performance for high-speed applications.

Nylon cage construction in 629-2RSLTN9/C3 Bearing reduces noise and vibration, ensuring quieter operation.
Its C3 radial clearance allows for thermal expansion, making it suitable for a wide temperature range.

Application

Common Applications of 629-2RSLTN9/C3 Bearing
The 629-2RSLTN9/C3 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday environments.

How Does 629-2RSLTN9/C3 Bearing Improve Performance?
In automation systems, 629-2RSLTN9/C3 Bearing provides smooth rotation for components like conveyor rollers and robotic arms. The C3 clearance allows for slight thermal expansion, making it suitable for varying operational temperatures.

Built for Heavy-Duty Use: 629-2RSLTN9/C3 Bearing
This bearing is a reliable choice for power tools, where its chrome steel construction handles radial loads efficiently. The nylon cage reduces friction, contributing to quieter operation in devices like drills and sanders.

Medical vs Industrial: Where 629-2RSLTN9/C3 Bearing Excels
In medical devices, 629-2RSLTN9/C3 Bearing offers precision for equipment like dental handpieces. Meanwhile, its durability makes it equally effective in industrial settings, such as packaging machinery.

Where Is 629-2RSLTN9/C3 Bearing Used?
You’ll often find 629-2RSLTN9/C3 Bearing in office equipment like printers, where its compact size and sealed design are ideal. The high-speed capability ensures consistent performance in repetitive tasks.
