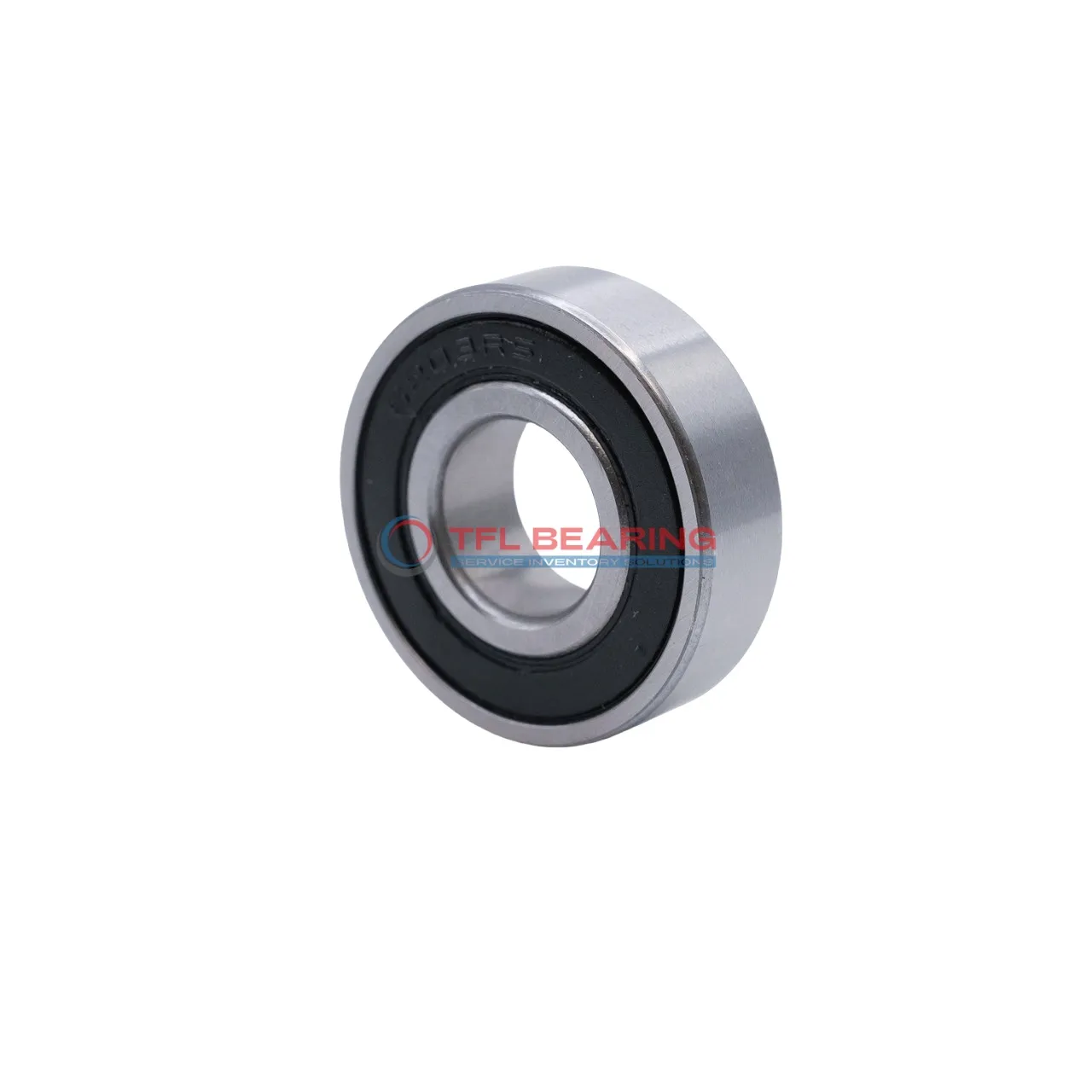

Single Row Deep Groove Ball Bearings 629-2RSH/C3LHT23

Single Row Deep Groove Ball Bearings 629-2RSH/C3LHT23

The 629-2RSH/C3LHT23 is a compact single-row deep groove ball bearing, measuring 9mm in bore and 26mm in outer diameter. Its sealed design keeps dirt out and grease in, making it low-maintenance.

Made from chrome steel, it handles radial loads up to 873 lbf and spins smoothly at speeds up to 28,000 RPM. The C3 clearance allows for slight expansion under heat or heavy loads.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or power tools. Its sealed construction and durable materials make it a reliable choice for dusty or humid environments.

Weighing just 19g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 629-2RSH/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 873 lbf
  • Static Radial Load 357 lbf
  • Max Speed 28000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 629-2RSH/C3LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 629-2RSH/C3LHT23 Bearing Reduce Friction?

629-2RSH/C3LHT23 Bearing features a deep groove design that minimises friction during operation.
Its chrome steel construction ensures smooth radial load handling, with a dynamic load capacity of 873 lbf.

The sealed design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 28,000 rpm, it offers both efficiency and durability for long-term use.

Application

Common Applications of 629-2RSH/C3LHT23 Bearing
In industrial settings, 629-2RSH/C3LHT23 Bearing is commonly used in small motors and pumps due to its reliable radial load capacity. The sealed design helps keep contaminants out, extending its lifespan in dusty environments.

Where Is 629-2RSH/C3LHT23 Bearing Used?
You’ll often find 629-2RSH/C3LHT23 Bearing in household appliances like washing machines and fans, where its compact size and smooth operation are ideal. The chrome steel construction ensures durability even with frequent use.

Built for Heavy-Duty Use: 629-2RSH/C3LHT23 Bearing
This bearing works well in automotive applications such as alternators and small gearboxes, handling moderate speeds with ease. Its C3 clearance allows for slight thermal expansion, making it versatile in varying temperatures.

Medical vs Industrial: Where 629-2RSH/C3LHT23 Bearing Excels
In medical devices like dental tools, 629-2RSH/C3LHT23 Bearing offers quiet and precise performance. Meanwhile, in industrial automation, it supports small conveyor rollers efficiently.

Perfect Fit for Automation: 629-2RSH/C3LHT23 Bearing
For robotic arms and small CNC machines, 629-2RSH/C3LHT23 Bearing provides smooth rotation and low friction. The sealed design also reduces maintenance needs in high-precision setups.
