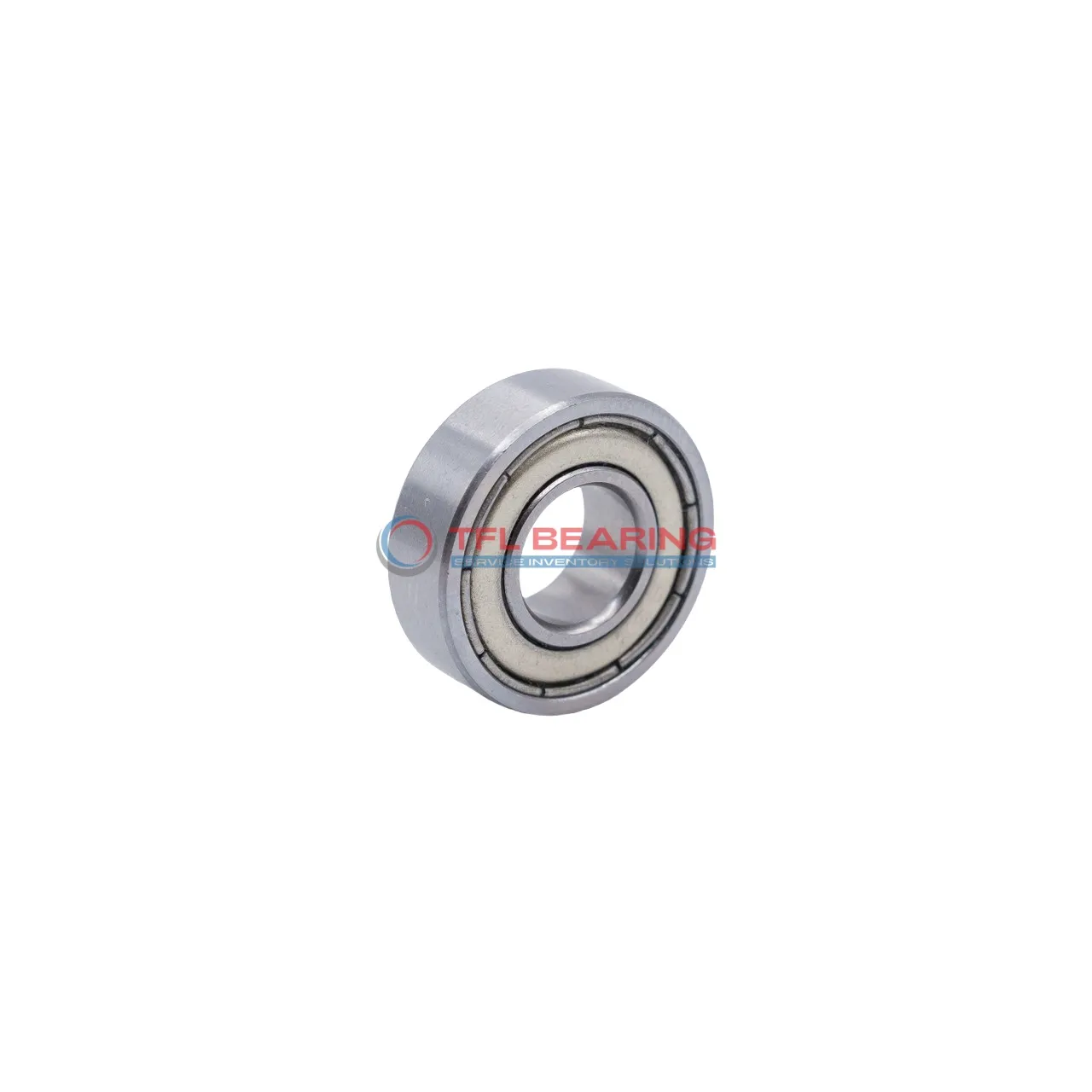

Single Row Deep Groove Ball Bearings 627-2ZTN9/C2HLHT23

Single Row Deep Groove Ball Bearings 627-2ZTN9/C2HLHT23

The 627-2ZTN9/C2HLHT23 is a compact single row deep groove ball bearing, measuring 7mm in bore and 22mm in outer diameter. Made from chrome steel, it offers reliable performance for radial loads up to 629 lbf.

Its shielded design keeps out dust and debris, while the nylon cage ensures smooth operation at speeds up to 30,000 RPM. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, fans, or appliances where space is limited.

Weighing just 12.7g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 627-2ZTN9/C2HLHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 248 lbf
  • Max Speed 30000 rpm
  • Weight 12.7 g
Single Row Deep Groove Ball Bearings 627-2ZTN9/C2HLHT23 dimension drawing
Download DWG Download PDF

Features

How Does 627-2ZTN9/C2HLHT23 Bearing Reduce Friction?

627-2ZTN9/C2HLHT23 Bearing features a single row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.
The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 30,000 rpm, it offers reliable efficiency for high-speed applications.

Application

Common Applications of 627-2ZTN9/C2HLHT23 Bearing
In small electric motors, 627-2ZTN9/C2HLHT23 Bearing provides smooth rotation thanks to its shielded design and nylon cage. The compact size makes it ideal for tight spaces where reliability matters.

Where Is 627-2ZTN9/C2HLHT23 Bearing Used?
You’ll often spot 627-2ZTN9/C2HLHT23 Bearing in household appliances like blenders and power tools. Its C2 clearance helps manage slight misalignments during high-speed operation.

Designed for Versatility: 627-2ZTN9/C2HLHT23 Bearing
This bearing works well in light industrial equipment such as conveyor rollers and small gearboxes. The chrome steel construction ensures durability without adding unnecessary weight.

Automotive vs Industrial: Applications of 627-2ZTN9/C2HLHT23 Bearing
In automotive auxiliaries like alternators, 627-2ZTN9/C2HLHT23 Bearing handles radial loads efficiently. For industrial uses, it’s commonly found in small pumps and textile machinery.

Perfect Fit for Automation: 627-2ZTN9/C2HLHT23 Bearing
The 627-2ZTN9/C2HLHT23 Bearing is frequently used in robotic joints and 3D printer components. Its ABEC 1 tolerance provides consistent performance for precision movements.
