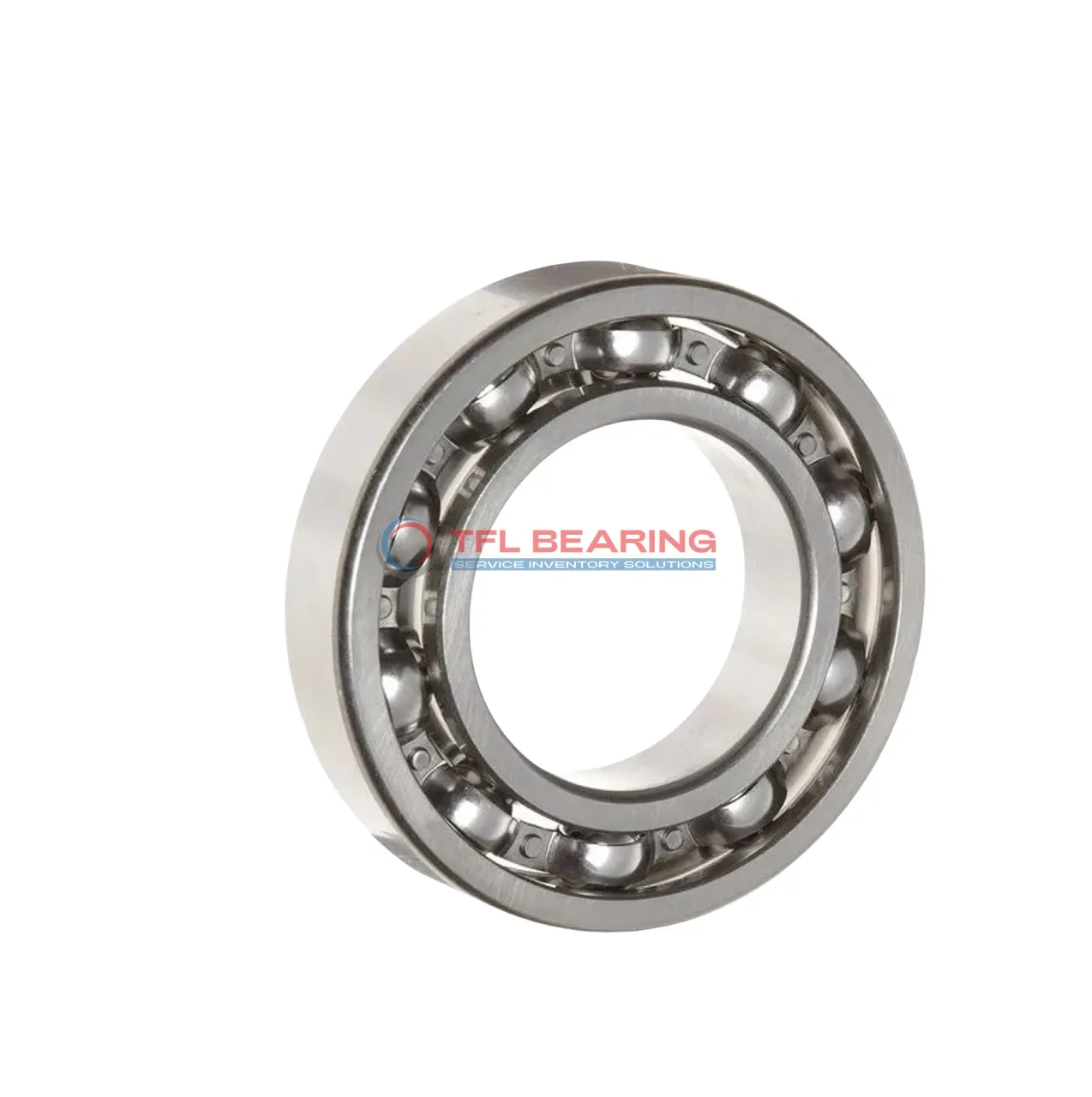

Single Row Deep Groove Ball Bearings 6260 M

Single Row Deep Groove Ball Bearings 6260 M

The 6260 M is a single-row deep groove ball bearing with a 300mm bore and 540mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 103862 lbf and operates smoothly at speeds up to 2000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 88.5kg, it’s built to withstand demanding conditions while complying with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6260 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 85 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 103862 lbf
  • Static Radial Load 150622 lbf
  • Max Speed 2000 rpm
  • Weight 88500 g
Single Row Deep Groove Ball Bearings 6260 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6260 M Bearing

6260 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 103862 lbf.
Its stainless steel cage ensures smooth operation and reduces wear over time.

The bearing operates efficiently within a temperature range of -30° to 120°C, suitable for various industrial conditions.
With a maximum speed of 2,000 rpm, it balances performance and durability.

6260 M Bearing’s open design simplifies installation and maintenance.
Its precise P6 tolerance class ensures reliable performance in demanding applications.

Application

Industrial Uses of 6260 M Bearing
The 6260 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, making it suitable for high-temperature environments.

In automotive applications, 6260 M Bearing supports large components like wheel hubs and transmissions, ensuring smooth rotation under heavy loads. The P6 tolerance class ensures precise alignment, which is vital for vehicle performance.

For automation systems, 6260 M Bearing’s stainless steel cage provides durability in robotic arms and conveyor belts. Its high dynamic radial load capacity makes it reliable for continuous operation in manufacturing plants.

Where Is 6260 M Bearing Used?
You’ll often find 6260 M Bearing in wind turbines, where its large size and radial load capacity are essential for efficient energy generation. The chrome steel construction ensures long-term reliability in harsh outdoor conditions.

In construction equipment, 6260 M Bearing is used in cranes and excavators, where its strength and precision are crucial for safe operation. The wide temperature range also makes it adaptable to various working environments.
