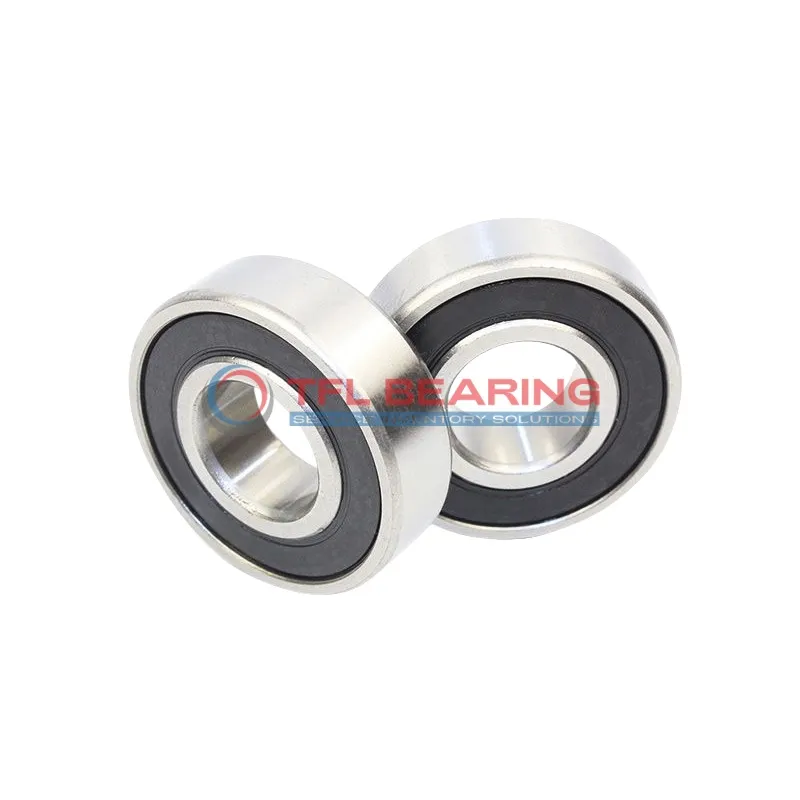

Single Row Deep Groove Ball Bearings 626-2RSH/W64

Single Row Deep Groove Ball Bearings 626-2RSH/W64

The 626-2RSH/W64 is a compact single-row deep groove ball bearing, measuring just 6mm by 19mm by 6mm. Made from durable chrome steel, it handles radial loads up to 447 lbf and spins smoothly at speeds up to 32,000 RPM.

Its sealed design keeps out dirt and retains solid oil lubrication, reducing maintenance needs. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small electric motors, fans, or appliances where space is limited.

Weighing only 8.12g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 626-2RSH/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 32000 rpm
  • Weight 8.12 g
  • price（$） 5.706
Single Row Deep Groove Ball Bearings 626-2RSH/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 626-2RSH/W64 Bearing for Precision Tasks?

626-2RSH/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for high-speed use up to 32,000 rpm.
The bearing maintains performance across a wide temperature range from -30°C to 120°C.
With a dynamic radial load capacity of 447 lbf, it offers reliable performance in compact spaces.

Application

Common Applications of 626-2RSH/W64 Bearing
In small electric motors, 626-2RSH/W64 Bearing offers reliable radial load support, thanks to its sealed design and solid oil lubrication. Its compact size makes it ideal for tight spaces in appliances like fans or power tools.

Industrial Uses of 626-2RSH/W64 Bearing
This bearing works well in conveyor systems, where its chrome steel construction handles moderate loads efficiently. The ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Where Is 626-2RSH/W64 Bearing Used?
You’ll often find 626-2RSH/W64 Bearing in printers and office equipment, where its low maintenance design reduces downtime. The temperature range suits most indoor environments comfortably.

Built for Versatility: 626-2RSH/W64 Bearing
From food processing machinery to light industrial gear, 626-2RSH/W64 Bearing adapts easily. The sealed design keeps contaminants out while retaining lubrication for long service life.

Automotive vs Consumer Goods: Applications of 626-2RSH/W64 Bearing
While smaller than typical automotive bearings, 626-2RSH/W64 Bearing fits well in dashboard components or wiper motors. In household items, it quietly supports rotating parts for years.
