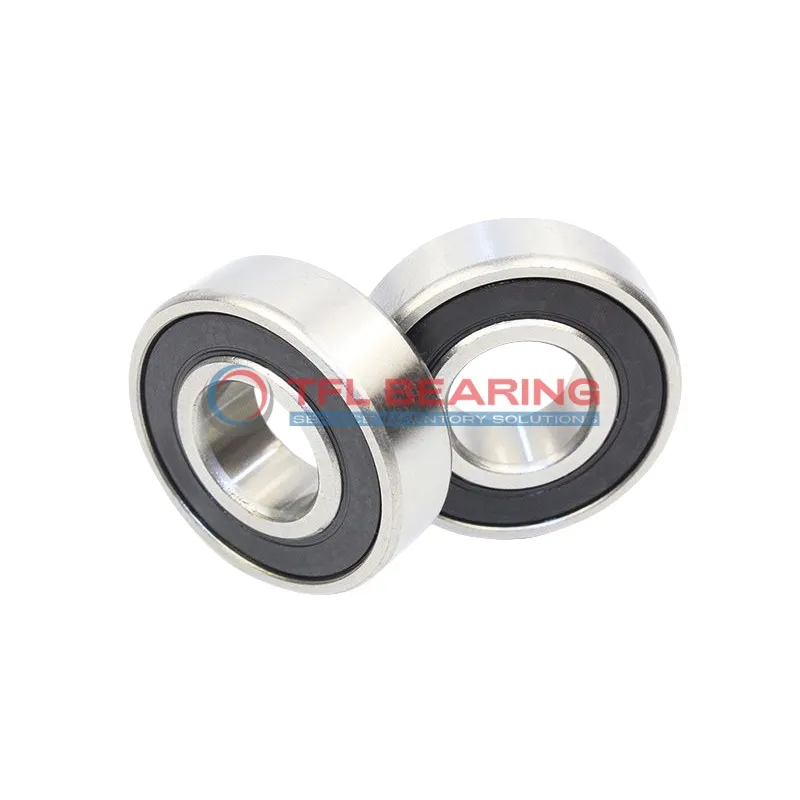

Single Row Deep Groove Ball Bearings 626-2RSH/C3LVK232

Single Row Deep Groove Ball Bearings 626-2RSH/C3LVK232

The 626-2RSH/C3LVK232 is a compact single-row deep groove ball bearing, measuring just 6mm by 19mm by 6mm. Made from durable chrome steel, it handles radial loads up to 447 lbf and spins smoothly at speeds up to 32,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ensuring reliable performance.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for small motors, fans, or appliances where space is limited.

Weighing only 8.12g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 626-2RSH/C3LVK232
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 32000 rpm
  • Weight 8.12 g
Single Row Deep Groove Ball Bearings 626-2RSH/C3LVK232 dimension drawing
Download DWG Download PDF

Features

Why Choose 626-2RSH/C3LVK232 Bearing for Precision Tasks?

626-2RSH/C3LVK232 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 447 lbf, 626-2RSH/C3LVK232 Bearing handles demanding conditions reliably.
The ABEC 1 tolerance class guarantees precision, making it suitable for high-speed operations up to 32,000 rpm.

626-2RSH/C3LVK232 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size (6 mm×19 mm×6 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 626-2RSH/C3LVK232 Bearing
626-2RSH/C3LVK232 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its compact size and sealed design make it ideal for environments where dust or moisture might be a concern.

In automotive applications, 626-2RSH/C3LVK232 Bearing can be found in components like window regulators and wiper motors. The chrome steel construction ensures durability, even with frequent use.

For automation equipment, 626-2RSH/C3LVK232 Bearing provides smooth operation in devices like conveyor belts and small robotic arms. The C3 clearance allows for slight misalignments without compromising performance.

In consumer electronics, 626-2RSH/C3LVK232 Bearing is often used in devices like printers and scanners. Its low noise operation and reliable performance make it a popular choice for these applications.
