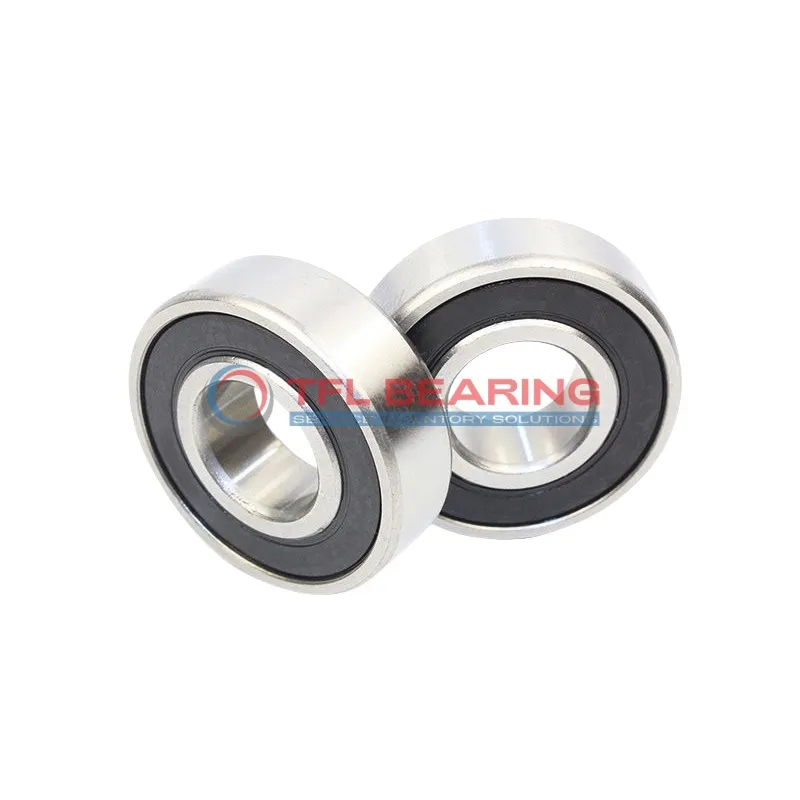

Single Row Deep Groove Ball Bearings 626-2RSH/C3

Single Row Deep Groove Ball Bearings 626-2RSH/C3

The 626-2RSH/C3 is a compact single-row deep groove ball bearing, measuring just 6mm by 19mm by 6mm. Made from durable chrome steel, it’s built to handle radial loads up to 447 lbf with ease.

Its sealed design keeps out dust and dirt, making it low-maintenance for long-term use. The C3 clearance allows for smooth operation even under varying temperatures, from -30°C to 120°C.

With a maximum speed of 32,000 RPM, this bearing is perfect for high-speed applications like small motors or power tools. It’s also interchangeable with SKF bearings, offering a reliable replacement option.

Weighing only 8.12g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 626-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 32000 rpm
  • Weight 8.12 g
Single Row Deep Groove Ball Bearings 626-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 626-2RSH/C3 Bearing

626-2RSH/C3 Bearing is designed for radial loads, with a dynamic radial load capacity of 447 lbf.

Its sealed construction keeps out contaminants, making it suitable for various environments.

The chrome steel rings and balls ensure durability, while the C3 radial clearance allows for thermal expansion.

With a maximum speed of 32,000 rpm, it offers reliable performance in high-speed applications.

Application

Common Applications of 626-2RSH/C3 Bearing
The 626-2RSH/C3 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday environments.

What Makes 626-2RSH/C3 Bearing a Preferred Choice?
With its compact size and reliable radial load capacity, 626-2RSH/C3 Bearing is ideal for applications like printer rollers and small conveyor systems. The C3 clearance allows for slight thermal expansion, making it suitable for varying operating conditions.

Perfect Fit for Automation: 626-2RSH/C3 Bearing
In robotic arms and 3D printers, 626-2RSH/C3 Bearing provides smooth motion and low friction. The chrome steel construction ensures durability, even in high-speed operations common in automated systems.

Light-Duty vs Heavy-Duty: Best Uses for 626-2RSH/C3 Bearing
While 626-2RSH/C3 Bearing excels in light-duty applications like cooling fans, it can also handle moderate loads in industrial settings. Its versatility makes it a go-to choice for both consumer and professional equipment.
