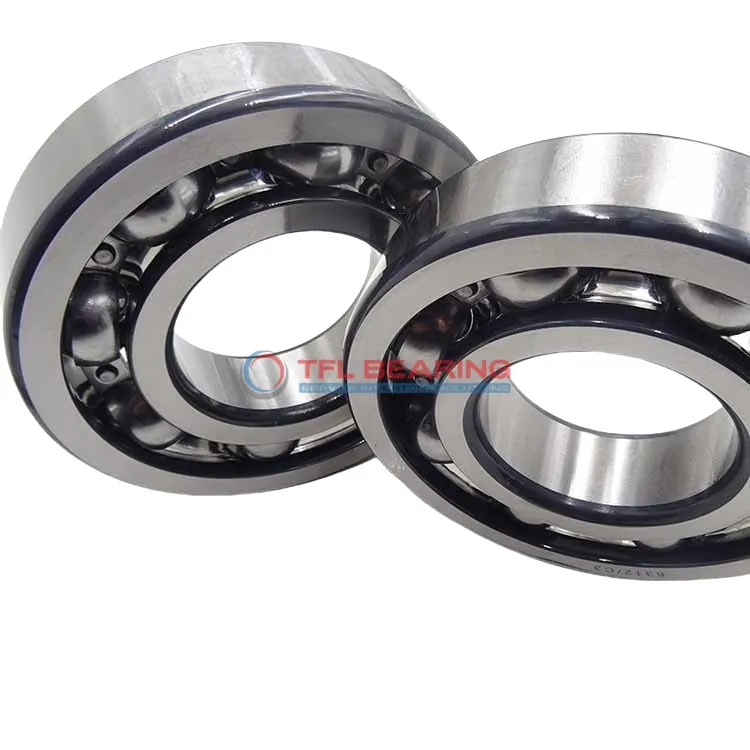

Single Row Deep Groove Ball Bearings 6256 M

Single Row Deep Groove Ball Bearings 6256 M

The 6256 M is a single-row deep groove ball bearing with a 280mm bore and 500mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 95094 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design allows for easy lubrication and maintenance, while the stainless steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or industrial equipment where radial loads are common.

Weighing 72kg, it’s built to last while meeting RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6256 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 500 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 80 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 95094 lbf
  • Static Radial Load 134885 lbf
  • Max Speed 2200 rpm
  • Weight 72000 g
Single Row Deep Groove Ball Bearings 6256 M dimension drawing
Download DWG Download PDF

Features

How Does 6256 M Bearing Handle Radial Loads?

6256 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 95094 lbf, ensuring reliable performance in heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,200 rpm, it balances durability and efficiency in various conditions.

6256 M Bearing operates smoothly in temperatures from -30° to 120°C.
Its open design allows for easy maintenance and lubrication adjustments.

Application

Industrial Uses of 6256 M Bearing
The 6256 M Bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 6256 M Bearing Used?
You’ll often find 6256 M Bearing in wind turbine gearboxes, where its high dynamic load capacity ensures reliable performance. The P6 tolerance class makes it suitable for precision applications requiring minimal vibration.

Built for Heavy-Duty Use: 6256 M Bearing
This bearing excels in conveyor systems for mining or construction, thanks to its chrome steel construction and durable stainless steel cage. Its wide temperature range also makes it adaptable to various working environments.

Automotive vs Aerospace: Applications of 6256 M Bearing
In automotive applications, 6256 M Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary equipment due to its high static load rating. The metric sizing ensures compatibility with international standards.

Perfect Fit for Automation: 6256 M Bearing
The 6256 M Bearing is ideal for automated production lines, where its smooth operation reduces downtime. Its 500 mm outer diameter provides stability for rotating equipment in manufacturing setups.
