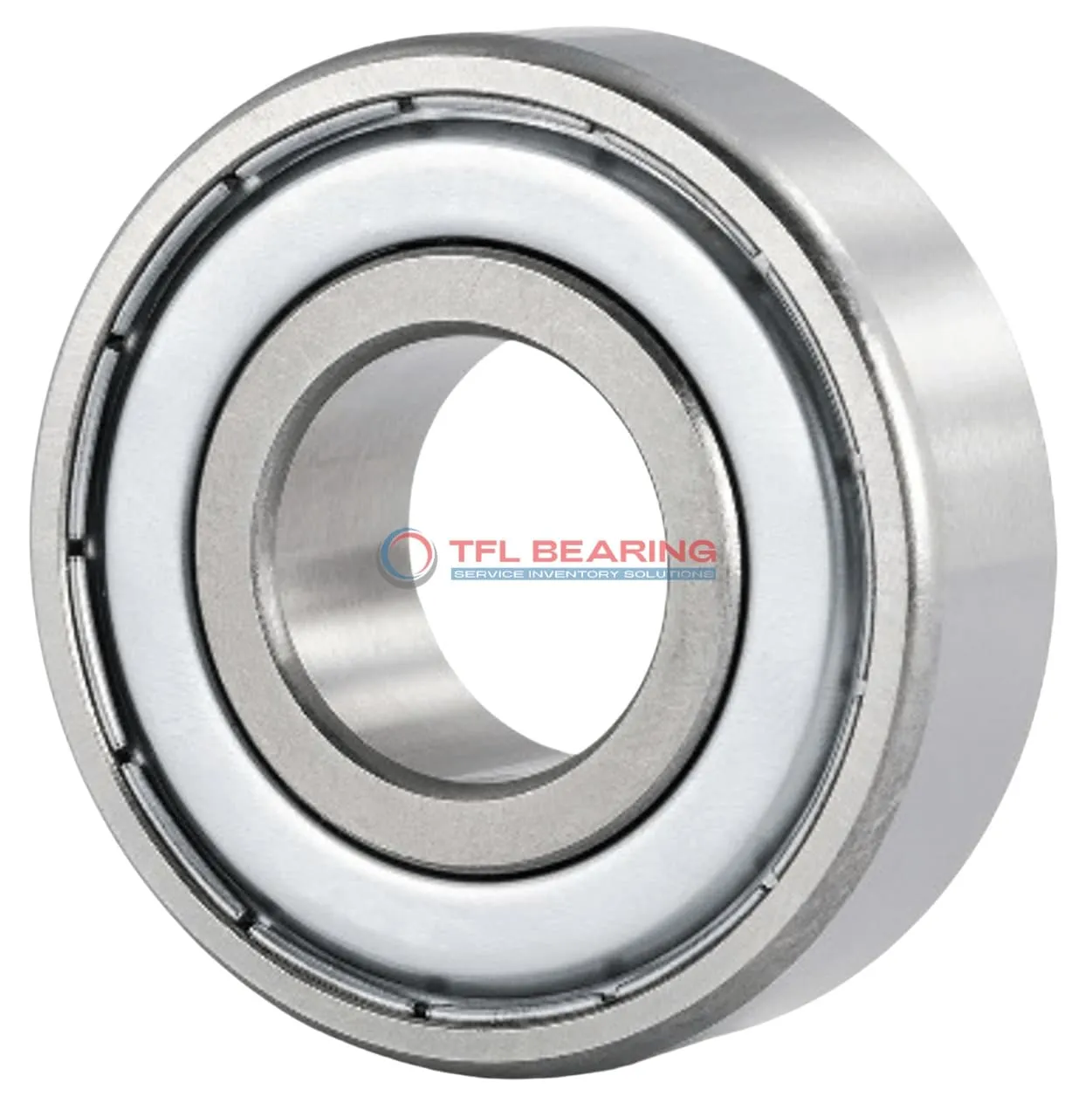

Single Row Deep Groove Ball Bearings 625-2Z/C2PVK232

Single Row Deep Groove Ball Bearings 625-2Z/C2PVK232

The 625-2Z/C2PVK232 is a compact single-row deep groove ball bearing, measuring just 5mm by 16mm by 5mm. Made from durable chrome steel, it handles radial loads up to 331 lbf and spins smoothly at speeds up to 36,000 RPM.

Its shielded design keeps out dust and debris, while the C2 radial clearance ensures smooth operation. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, fans, or appliances where space is limited.

Weighing only 4.95g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 625-2Z/C2PVK232
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 331 lbf
  • Static Radial Load 122 lbf
  • Max Speed 36000 rpm
  • Weight 4.95 g
Single Row Deep Groove Ball Bearings 625-2Z/C2PVK232 dimension drawing
Download DWG Download PDF

Features

Performance Features of 625-2Z/C2PVK232 Bearing

625-2Z/C2PVK232 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 331 lbf, making it suitable for various applications.

The shielded design of 625-2Z/C2PVK232 Bearing protects against contaminants, ensuring smooth operation.
With a maximum speed of 36,000 rpm, it balances performance and durability.

625-2Z/C2PVK232 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its compact size of 5 mm×16 mm×5 mm makes it ideal for space-constrained installations.

Application

Common Applications of 625-2Z/C2PVK232 Bearing
625-2Z/C2PVK232 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its shielded design helps keep dust out, ensuring smooth operation over time.

In automotive applications, 625-2Z/C2PVK232 Bearing fits well in components like alternators and water pumps, where its compact size and radial load capacity are beneficial. The chrome steel construction also offers good resistance to wear.

For office equipment like printers and scanners, 625-2Z/C2PVK232 Bearing provides reliable performance due to its balanced design and moderate speed capabilities. The C2 clearance makes it suitable for applications with slight misalignment.

In DIY tools such as handheld drills, 625-2Z/C2PVK232 Bearing’s lightweight and durability make it a practical choice. Its metric sizing ensures compatibility with a variety of tool designs.
