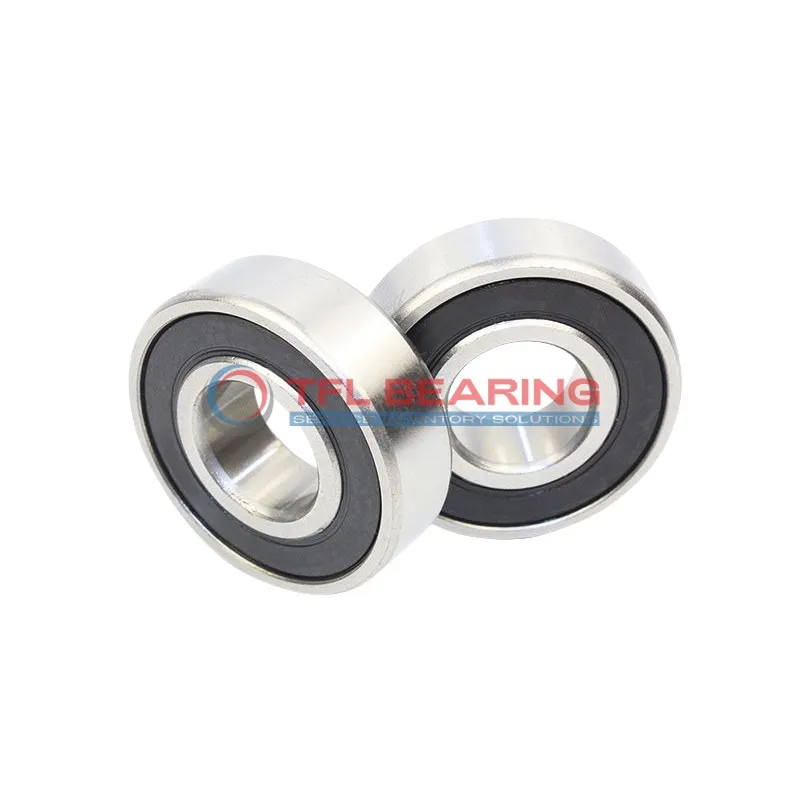

Single Row Deep Groove Ball Bearings 625-2RZTN9/C3GMG

Single Row Deep Groove Ball Bearings 625-2RZTN9/C3GMG

The 625-2RZTN9/C3GMG is a compact single-row deep groove ball bearing, measuring 5mm by 16mm by 5mm, crafted from durable chrome steel. It handles radial loads up to 331 lbf and spins smoothly at speeds up to 36,000 RPM.

Its sealed design keeps dirt out and grease in, while the nylon cage reduces noise and friction. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, power tools, or appliances where quiet, efficient performance is needed.

Weighing just 4.95g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 625-2RZTN9/C3GMG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 331 lbf
  • Static Radial Load 122 lbf
  • Max Speed 36000 rpm
  • Weight 4.95 g
  • price（$） 2.034
Single Row Deep Groove Ball Bearings 625-2RZTN9/C3GMG dimension drawing
Download DWG Download PDF

Features

Performance Features of 625-2RZTN9/C3GMG Bearing

625-2RZTN9/C3GMG Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 331 lbf, making it suitable for various applications.

The sealed design of 625-2RZTN9/C3GMG Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 36,000 rpm, it ensures smooth and efficient operation.

625-2RZTN9/C3GMG Bearing’s nylon cage reduces friction and noise, improving performance.
Its compact size of 5 mm×16 mm×5 mm makes it ideal for space-constrained installations.

Application

Common Applications of 625-2RZTN9/C3GMG Bearing
In industrial settings, 625-2RZTN9/C3GMG Bearing is commonly used in small motors and pumps, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 625-2RZTN9/C3GMG Bearing Used?
You’ll often find 625-2RZTN9/C3GMG Bearing in automotive applications like electric window mechanisms or cooling fans. Its compact size and reliable performance make it a go-to choice for these components.

Perfect Fit for Automation: 625-2RZTN9/C3GMG Bearing
For small robotic arms or conveyor systems, 625-2RZTN9/C3GMG Bearing offers a balance of durability and precision. The nylon cage reduces friction, which is ideal for high-speed movements.

Light-Duty vs Heavy-Duty: Best Uses for 625-2RZTN9/C3GMG Bearing
While 625-2RZTN9/C3GMG Bearing excels in light-duty applications like office printers, it’s also suitable for household appliances such as blenders. Its chrome steel construction ensures longevity in everyday use.
