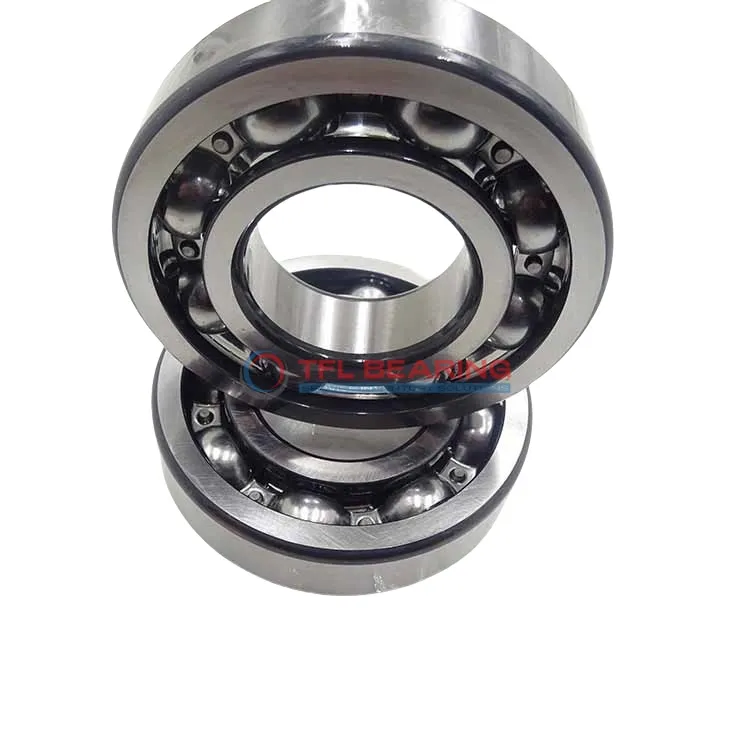

Single Row Deep Groove Ball Bearings 6240 M

Single Row Deep Groove Ball Bearings 6240 M

The 6240 M is a single-row deep groove ball bearing with a 200mm bore and 360mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 60698 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy use. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial load support is essential.

Weighing 26.2kg, it’s built to withstand demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6240 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 58 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 60698 lbf
  • Static Radial Load 69691 lbf
  • Max Speed 3200 rpm
  • Weight 26200 g
  • price（$） 614.583
Single Row Deep Groove Ball Bearings 6240 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6240 M Bearing

6240 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 60698 lbf, ensuring reliable performance in heavy-duty applications.
The stainless steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 3,200 rpm, it balances durability and efficiency for various industrial uses.

Application

Industrial Uses of 6240 M Bearing
The 6240 M Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6240 M Bearing Used?
You’ll often find the 6240 M Bearing in conveyor systems and gearboxes, thanks to its high load capacity and smooth operation. The open seal design makes it easy to maintain in dusty or humid conditions.

Built for Heavy-Duty Use: 6240 M Bearing
This bearing excels in applications like agricultural equipment and construction machinery, where reliability is key. The stainless steel cage adds extra resistance to wear and tear.

Automotive vs Industrial: Applications of 6240 M Bearing
In automotive systems, the 6240 M Bearing supports components like wheel hubs and transmissions. For industrial use, it’s ideal for large fans and compressors due to its robust design.
