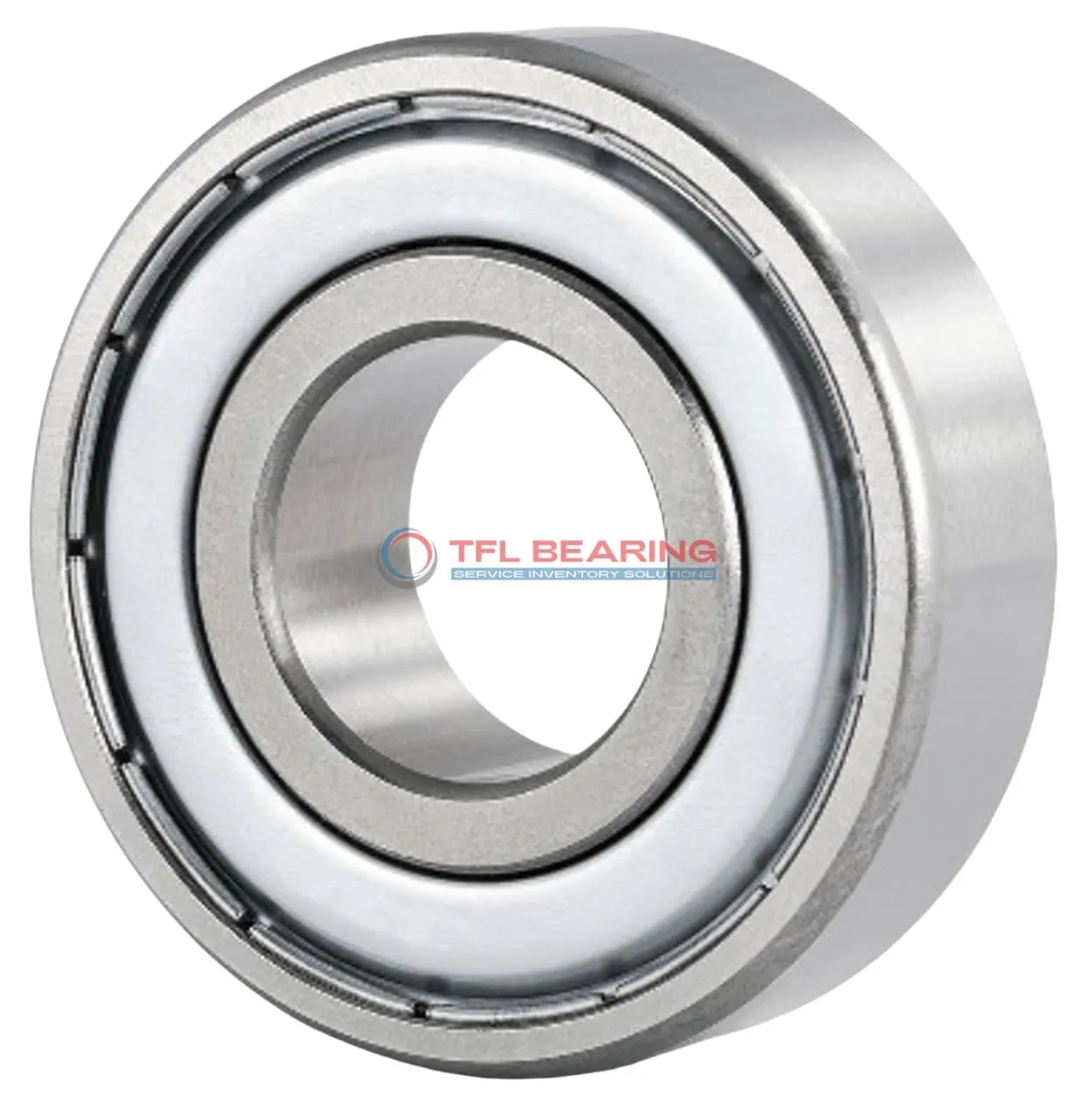

Single Row Deep Groove Ball Bearings 624-2Z/C3LHT23

Single Row Deep Groove Ball Bearings 624-2Z/C3LHT23

The 624-2Z/C3LHT23 is a compact single-row deep groove ball bearing, measuring 4mm in bore and 13mm in outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 249 lbf and can spin at speeds up to 40,000 RPM.

With shielded seals, it keeps dust out while maintaining smooth operation. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Its lightweight design (just 3.1g) makes it suitable for small motors or precision instruments.

Compliant with RoHS and REACH standards, it’s a safe choice for various industrial and electronic applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 624-2Z/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 249 lbf
  • Static Radial Load 88 lbf
  • Max Speed 40000 rpm
  • Weight 3.1 g
  • price（$） 3.564
Single Row Deep Groove Ball Bearings 624-2Z/C3LHT23 dimension drawing
Download DWG Download PDF

Features

Why Choose 624-2Z/C3LHT23 Bearing for Precision Tasks?

624-2Z/C3LHT23 Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its shielded construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 40,000 rpm, it delivers reliable performance in high-speed applications.

624-2Z/C3LHT23 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its compact size (4 mm×13 mm×5 mm) makes it suitable for space-constrained installations.

The dynamic radial load capacity of 249 lbf ensures consistent performance under stress.
This bearing is also RoHS and REACH compliant, meeting environmental standards.

Application

Common Applications of 624-2Z/C3LHT23 Bearing
624-2Z/C3LHT23 Bearing works well in small electric motors, such as those found in household appliances like fans or blenders. Its shielded design helps keep dust out, ensuring smoother operation over time.

In automotive applications, 624-2Z/C3LHT23 Bearing fits neatly into components like alternators or small gear systems. The C3 clearance allows for slight thermal expansion, making it reliable under varying temperatures.

For light industrial tools, 624-2Z/C3LHT23 Bearing offers a balance of durability and compact size, ideal for handheld devices. The chrome steel construction ensures it can handle moderate radial loads without wearing out quickly.

In office equipment like printers, 624-2Z/C3LHT23 Bearing provides quiet and efficient performance. Its metric sizing makes it easy to replace in a variety of European and Asian models.
