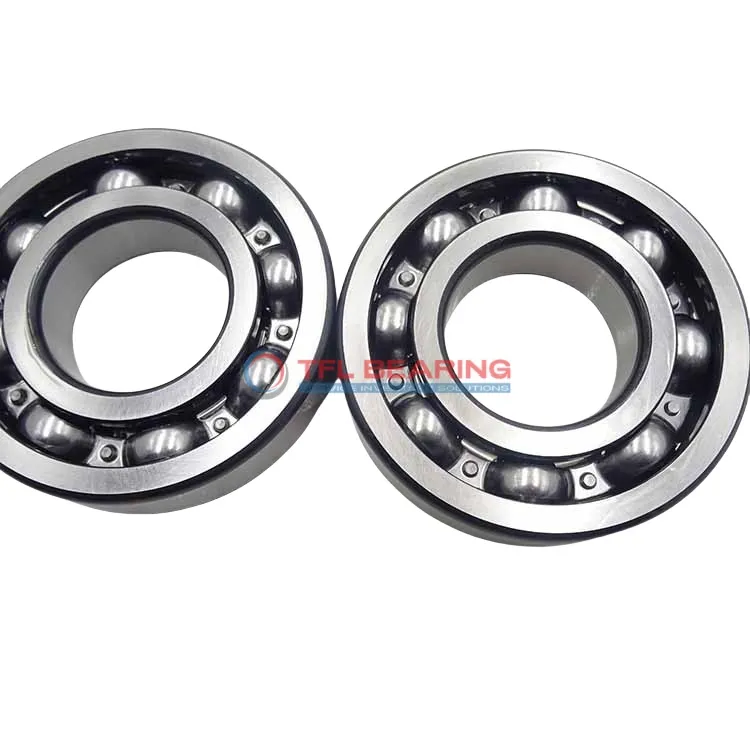

Single Row Deep Groove Ball Bearings 6236 MA/C4L

Single Row Deep Groove Ball Bearings 6236 MA/C4L

The 6236 MA/C4L is a single-row deep groove ball bearing with a 180mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 51481 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability and reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial load capacity is essential.

Weighing 17.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6236 MA/C4L
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 52 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 51481 lbf
  • Static Radial Load 53954 lbf
  • Max Speed 3800 rpm
  • Weight 17800 g
  • price（$） 386.982
Single Row Deep Groove Ball Bearings 6236 MA/C4L dimension drawing
Download DWG Download PDF

Features

Performance Features of 6236 MA/C4L Bearing

6236 MA/C4L Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 51481 lbf, ensuring reliable performance in various applications.
The machined metal cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 3,800 rpm, it provides a balance of durability and efficiency.

How Is 6236 MA/C4L Bearing Engineered for Reliability?

6236 MA/C4L Bearing features a single-row deep groove design, optimised for radial load handling.
Its chrome steel construction ensures durability, even in demanding operating conditions.
The open seal type allows for easy inspection and maintenance, reducing downtime.
Operating within a temperature range of -30°C to 120°C, it adapts to various environments.

Designed for Durability: 6236 MA/C4L Bearing

6236 MA/C4L Bearing’s machined metal cage enhances stability during high-speed operation.
Its C4 radial clearance provides flexibility for thermal expansion in different applications.
The bearing’s width tolerance of -0.25mm to 0 ensures precise fitting in assemblies.
Weighing 17800 g, it maintains a robust structure without compromising performance.

Steel vs Ceramic Bearings: Strengths of 6236 MA/C4L Bearing

6236 MA/C4L Bearing uses chrome steel for both rings and balls, offering cost-effective durability.
This material choice provides excellent static radial load capacity of 53954 lbf.
The bearing’s ABEC 1 tolerance class ensures reliable performance for standard applications.
Its metric system of measurement makes it interchangeable with major brands like SKF.

Application

Industrial Uses of 6236 MA/C4L Bearing
This bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6236 MA/C4L Bearing Used?
You’ll often find it in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. The C4 clearance ensures reliable performance even under thermal expansion.

Built for Heavy-Duty Use: 6236 MA/C4L Bearing
It’s a solid choice for construction equipment, where the machined metal cage provides extra durability. The wide temperature range makes it suitable for both indoor and outdoor applications.

Automotive vs Industrial: Applications of 6236 MA/C4L Bearing
In automotive settings, it supports components like alternators, while in factories, it keeps large fans running smoothly. The metric sizing ensures compatibility with various international standards.

Perfect Fit for Automation: 6236 MA/C4L Bearing
This bearing works well in robotic arms and assembly line equipment, where precision and reliability are key. Its ABEC 1 tolerance offers a good balance between performance and cost.
