Single Row Deep Groove Ball Bearings 6236 M

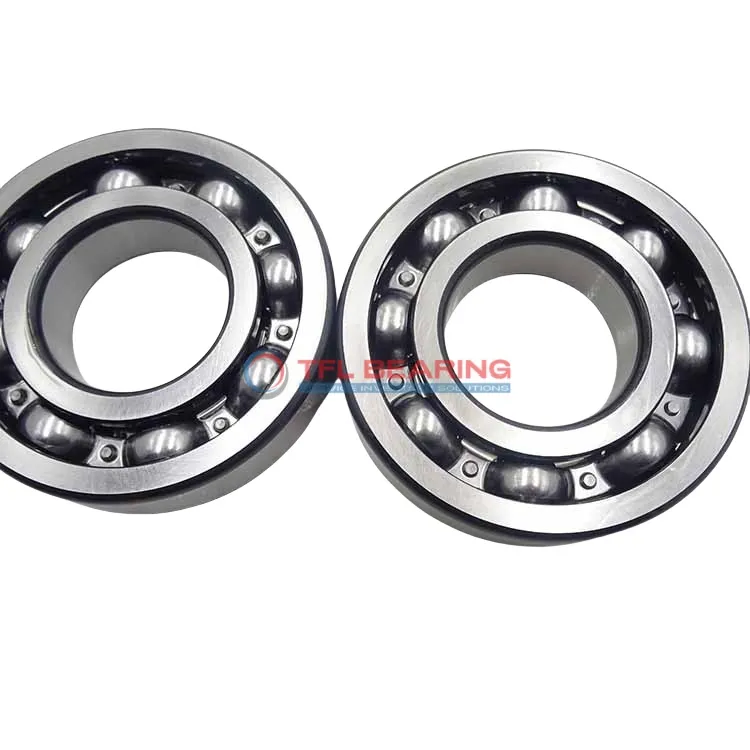

Single Row Deep Groove Ball Bearings 6236 M

The 6236 M is a single-row deep groove ball bearing with a 180mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 51481 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a P6 tolerance class and CN radial clearance, it offers precise performance for demanding applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or heavy equipment where radial load support is essential. Weighing 17.8kg, it’s built to last while meeting RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6236 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 52 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 51481 lbf
  • Static Radial Load 53954 lbf
  • Max Speed 3800 rpm
  • Weight 17800 g
  • price（$） 395.415
Single Row Deep Groove Ball Bearings 6236 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6236 M Bearing

6236 M Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 51481 lbf, ensuring reliable performance in demanding applications.

The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 3,800 rpm, it balances durability and efficiency for various industrial uses.

6236 M Bearing operates smoothly in temperatures ranging from -30° to 120 °C.
Its P6 tolerance class ensures precision and consistent performance in radial load applications.

Application

Industrial Uses of 6236 M Bearing
The 6236 M Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6236 M Bearing fits well in wheel hubs and transmissions, providing smooth rotation under high loads. The P6 tolerance class makes it suitable for precision components in European and Asian vehicles.

For automation systems, 6236 M Bearing supports robotic arms and conveyor belts, where its chrome steel construction offers durability. The stainless steel cage adds resistance to wear in continuous operation.

Medical equipment like MRI machines benefit from 6236 M Bearing’s consistent performance and low maintenance needs. Its wide temperature range ensures reliability in various clinical environments.

In household appliances, 6236 M Bearing can be found in washing machines and air conditioners, where its quiet operation is a plus. The metric sizing makes it compatible with many global appliance brands.
