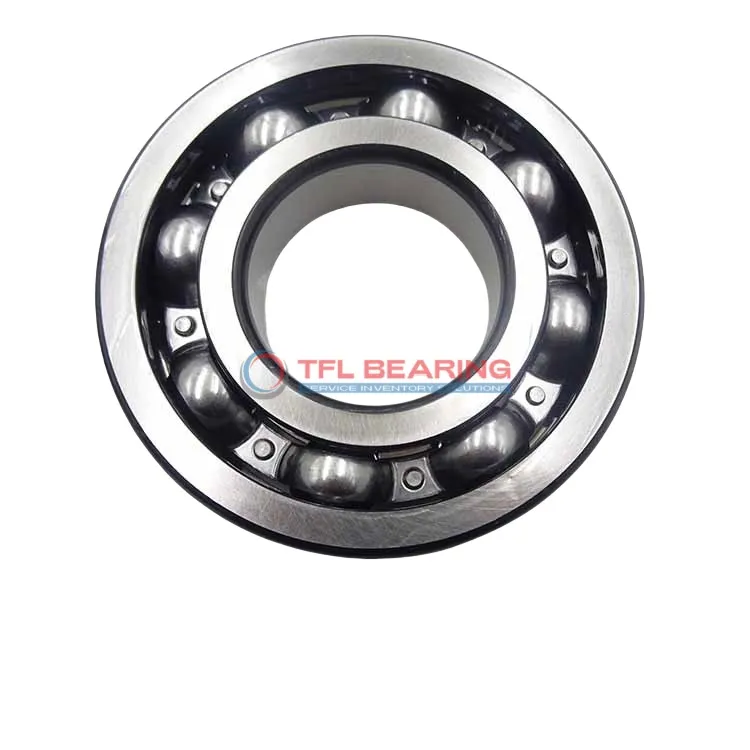

Single Row Deep Groove Ball Bearings 6234

Single Row Deep Groove Ball Bearings 6234

The 6234 is a single-row deep groove ball bearing with a 170mm bore and 310mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 47659 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial motors or machinery where radial loads are prevalent.

Weighing 16kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6234
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 52 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 47659 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 2800 rpm
  • Weight 16000 g
  • price（$） 395.64
Single Row Deep Groove Ball Bearings 6234 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6234 Bearing

6234 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 47,659 lbf, making it suitable for demanding industrial applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 2,800 rpm, it balances performance and durability in various conditions.

6234 Bearing operates in temperatures from -30° to 120°C, adapting to diverse working environments.
Its precision P6 tolerance class guarantees consistent performance and reliability over time.

The open seal type simplifies maintenance while the robust construction reduces wear and tear.
This design extends the bearing’s service life, lowering long-term operational costs.

Application

Common Applications of 6234 Bearing
The 6234 Bearing is widely used in industrial machinery, such as large pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6234 Bearing supports heavy-duty components like wheel hubs and transmissions. The P6 tolerance class ensures precise alignment, reducing wear and tear over time.

For automation systems, 6234 Bearing’s chrome steel construction provides durability in robotic arms and conveyor belts. Its metric sizing makes it compatible with a variety of European and Asian equipment standards.

In household appliances, 6234 Bearing can be found in washing machines and air conditioners, where its smooth operation reduces noise and vibration. The wide temperature range also makes it suitable for diverse climates.
