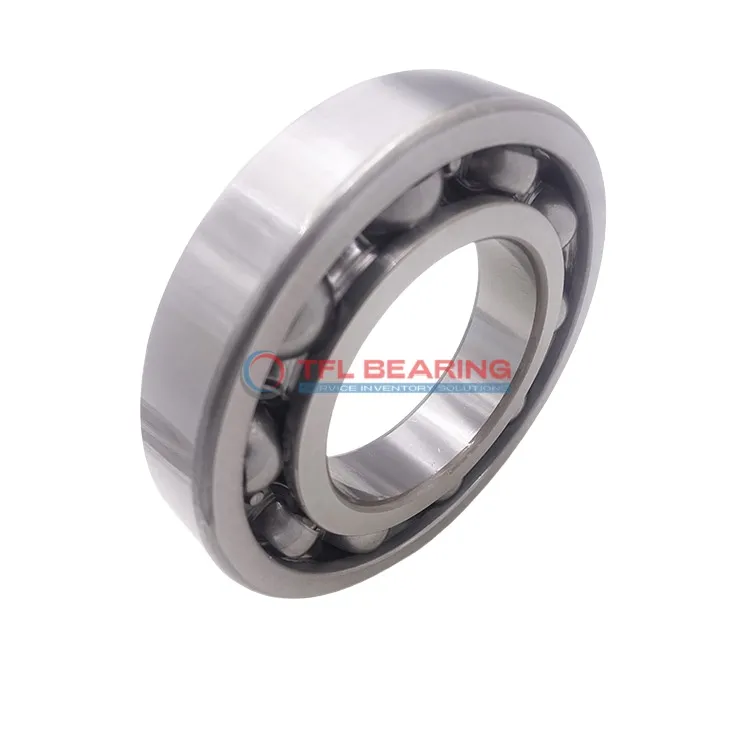

Single Row Deep Groove Ball Bearings 6232 M/C4HS1

Single Row Deep Groove Ball Bearings 6232 M/C4HS1

The 6232 M/C4HS1 is a single-row deep groove ball bearing with a 160mm bore and 290mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 41814 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and machined metal cage ensure durability, while the C4 radial clearance allows for thermal expansion in high-speed applications. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty machinery like pumps or electric motors where radial loads are predominant.

Weighing 14.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6232 M/C4HS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 48 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 41814 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 4300 rpm
  • Weight 14.1 kg
  • price（$） 596.754
Single Row Deep Groove Ball Bearings 6232 M/C4HS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6232 M/C4HS1 Bearing

6232 M/C4HS1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 41,814 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and wear.
This design helps extend the bearing’s service life even under continuous use.

With a maximum speed of 4,300 rpm, it balances efficiency and durability.
The open seal type allows for easy inspection and maintenance when needed.

6232 M/C4HS1 Bearing operates in temperatures from -30°C to 200°C.
This makes it suitable for both low and high-temperature environments.

Application

Industrial Uses of 6232 M/C4HS1 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 6232 M/C4HS1 Bearing Used?
You’ll find it in automotive applications such as wheel hubs and transmissions, thanks to its ability to manage high radial loads. The C4 clearance also accommodates thermal expansion in high-speed scenarios.

Built for Heavy-Duty Use: 6232 M/C4HS1 Bearing
It’s a reliable choice for conveyor systems in mining and agriculture, where its robust design withstands continuous operation. The open seal type allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 6232 M/C4HS1 Bearing
In automotive settings, it supports heavy axles and drivetrains, while in aerospace, its precision fits auxiliary equipment. The wide temperature range makes it versatile for various climates.

Perfect Fit for Automation: 6232 M/C4HS1 Bearing
This bearing works well in robotic arms and automated assembly lines, offering smooth rotation under radial stress. Its machined metal cage adds stability during repetitive movements.
