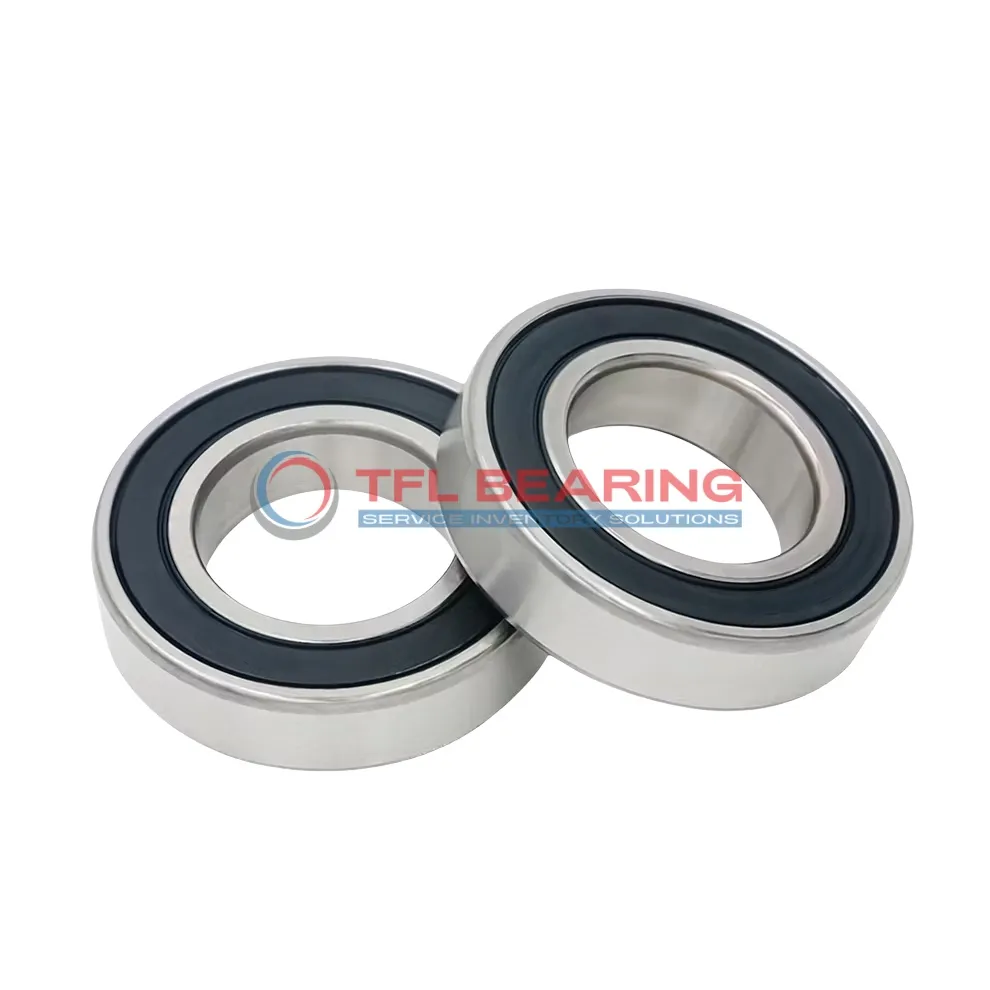

Single Row Deep Groove Ball Bearings 62312-2RS1

Single Row Deep Groove Ball Bearings 62312-2RS1

The 62312-2RS1 is a sealed single-row deep groove ball bearing, measuring 60mm by 130mm by 46mm, crafted from sturdy chrome steel for durability. It handles radial loads up to 18412 lbf and operates smoothly at speeds up to 3400 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds strength, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for industrial machinery or automotive applications. It’s interchangeable with SKF models for easy replacement.

Weighing 2.56kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62312-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 46 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11690 lbf
  • Max Speed 3400 rpm
  • Weight 2.56 kg
  • price（$） 76.068
Single Row Deep Groove Ball Bearings 62312-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 62312-2RS1 Bearing for Precision Tasks?

62312-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.

Its chrome steel rings and balls provide strong resistance to radial loads, with a dynamic capacity of 18412 lbf.

The stainless steel cage ensures smooth operation, even at speeds up to 3,400 rpm.

With a temperature range of -30° to 120°C, it performs reliably in various conditions.

Application

Common Applications of 62312-2RS1 Bearing
In industrial settings, 62312-2RS1 Bearing is widely used in electric motors and pumps due to its sealed design, which keeps contaminants out and extends service life. The grease lubrication ensures smooth operation even in demanding environments.

Where Is 62312-2RS1 Bearing Used?
You’ll often find 62312-2RS1 Bearing in automotive applications like wheel hubs and alternators, where its radial load capacity and sealed construction provide reliable performance. The P6 tolerance class ensures precision fit for critical components.

Built for Heavy-Duty Use: 62312-2RS1 Bearing
62312-2RS1 Bearing is a solid choice for conveyor systems and agricultural machinery, thanks to its chrome steel construction and high dynamic load rating. The stainless steel cage adds durability, making it suitable for rough conditions.

Light-Duty vs Heavy-Duty: Best Uses for 62312-2RS1 Bearing
For light-duty applications like household appliances, 62312-2RS1 Bearing offers quiet and efficient operation. In heavy-duty scenarios, such as industrial gearboxes, it handles radial loads with ease, ensuring long-term reliability.

Perfect Fit for Automation: 62312-2RS1 Bearing
62312-2RS1 Bearing works well in robotic arms and automated assembly lines, where its sealed design prevents dust ingress. The temperature range of -30° to 120°C makes it versatile for various operating conditions.
