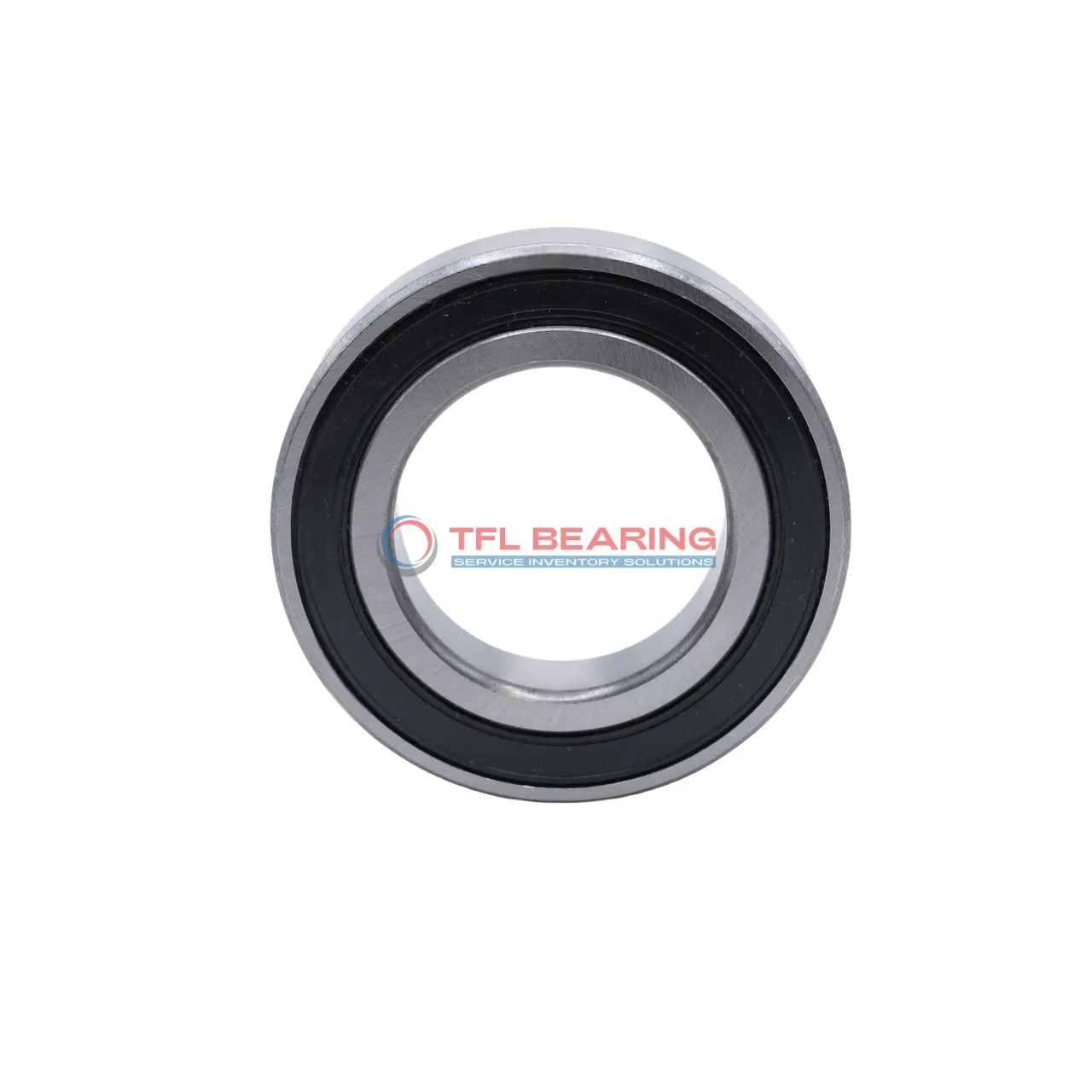

Single Row Deep Groove Ball Bearings 62308-2RS1

Single Row Deep Groove Ball Bearings 62308-2RS1

The 62308-2RS1 is a sealed single-row deep groove ball bearing, measuring 40mm by 90mm by 33mm. Made from chrome steel with a stainless steel cage, it offers reliable performance for radial loads up to 9217 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing can handle speeds up to 5000 RPM and operates in temperatures from -30°C to 120°C.

With a P6 tolerance class, it ensures smooth rotation and is interchangeable with SKF models. Ideal for electric motors, pumps, or industrial gearboxes where consistent performance is needed.

Weighing 0.92kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62308-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 9217 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 5000 rpm
  • Weight 0.92 kg
  • price（$） 25.533
Single Row Deep Groove Ball Bearings 62308-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 62308-2RS1 Bearing Reduce Friction?

62308-2RS1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction and grease lubrication minimise friction, ensuring quiet operation.

Chrome steel rings and balls enhance durability, while the stainless steel cage maintains alignment.

With a dynamic radial load capacity of 9217 lbf, it performs reliably in various applications.

Its temperature range of -30° to 120°C allows for consistent performance in diverse conditions.

Application

Industrial Uses of 62308-2RS1 Bearing
62308-2RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads efficiently.

Where Is 62308-2RS1 Bearing Used?
In automotive applications, 62308-2RS1 Bearing fits well in wheel hubs and alternators, providing reliable performance under constant rotation. Its grease lubrication reduces maintenance needs, making it a practical choice for vehicles.

Built for Heavy-Duty Use: 62308-2RS1 Bearing
For automation systems, 62308-2RS1 Bearing works smoothly in conveyor belts and robotic arms, thanks to its stainless steel cage. The P6 tolerance class ensures precise operation in high-speed environments.

Light-Duty vs Heavy-Duty: Best Uses for 62308-2RS1 Bearing
In household appliances like washing machines, 62308-2RS1 Bearing offers quiet and durable operation. Its sealed design also makes it suitable for environments where dust and moisture are common.

Key Fields for 62308-2RS1 Bearing
62308-2RS1 Bearing is ideal for medical devices like centrifuges, where consistent performance is essential. The temperature range of -30° to 120°C ensures reliability in various operating conditions.
