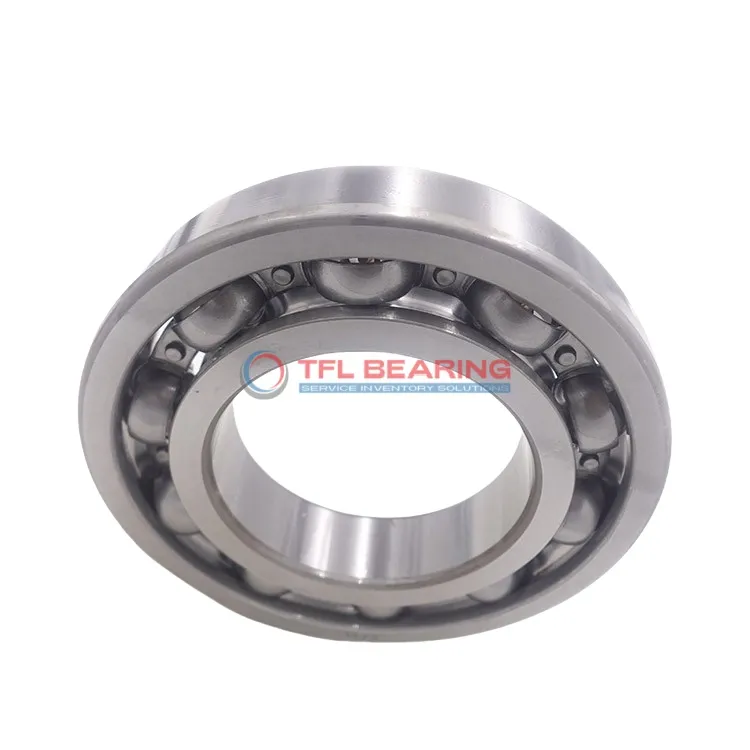

Single Row Deep Groove Ball Bearings 6228 MA/C4

Single Row Deep Groove Ball Bearings 6228 MA/C4

The 6228 MA/C4 is a single-row deep groove ball bearing with a 140mm bore and 250mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 37093 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are common.

Weighing 7770g, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6228 MA/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 42 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 37093 lbf
  • Static Radial Load 33721 lbf
  • Max Speed 3400 rpm
  • Weight 7770 g
  • price（$） 229.842
Single Row Deep Groove Ball Bearings 6228 MA/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6228 MA/C4 Bearing

6228 MA/C4 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 37093 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 3,400 rpm, it balances durability and efficiency.

6228 MA/C4 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 6228 MA/C4 Bearing
The 6228 MA/C4 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. Its open structure allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6228 MA/C4 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under constant motion. The C4 clearance ensures smooth operation even with thermal expansion in high-speed scenarios.

For automation equipment, 6228 MA/C4 Bearing’s machined metal cage offers stability in robotic arms and conveyor belts. Its chrome steel construction resists wear, making it suitable for continuous operation in manufacturing lines.

Where Is 6228 MA/C4 Bearing Used?
You’ll often find 6228 MA/C4 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands dusty environments. The metric sizing ensures compatibility with European and Asian equipment standards.

In construction gear like cement mixers, 6228 MA/C4 Bearing handles heavy radial loads without compromising performance. Its wide temperature range makes it adaptable to both hot and cold working conditions.

Built for Heavy-Duty Use: 6228 MA/C4 Bearing
The 6228 MA/C4 Bearing excels in mining equipment, where its high dynamic load capacity manages intense vibrations. Its ABEC 1 tolerance balances precision and cost-effectiveness for industrial applications.

For food processing machinery, 6228 MA/C4 Bearing’s open design simplifies cleaning, meeting hygiene standards. The chrome steel balls ensure consistent rotation in mixers and packaging lines.

Light-Duty vs Heavy-Duty: Best Uses for 6228 MA/C4 Bearing
In light-duty applications like HVAC fans, 6228 MA/C4 Bearing operates quietly with minimal maintenance. The C4 clearance accommodates slight misalignments common in ventilation systems.

For heavy-duty uses like steel rolling mills, 6228 MA/C4 Bearing’s static load capacity prevents deformation under extreme pressure. Its machined cage distributes stress evenly, enhancing durability.
