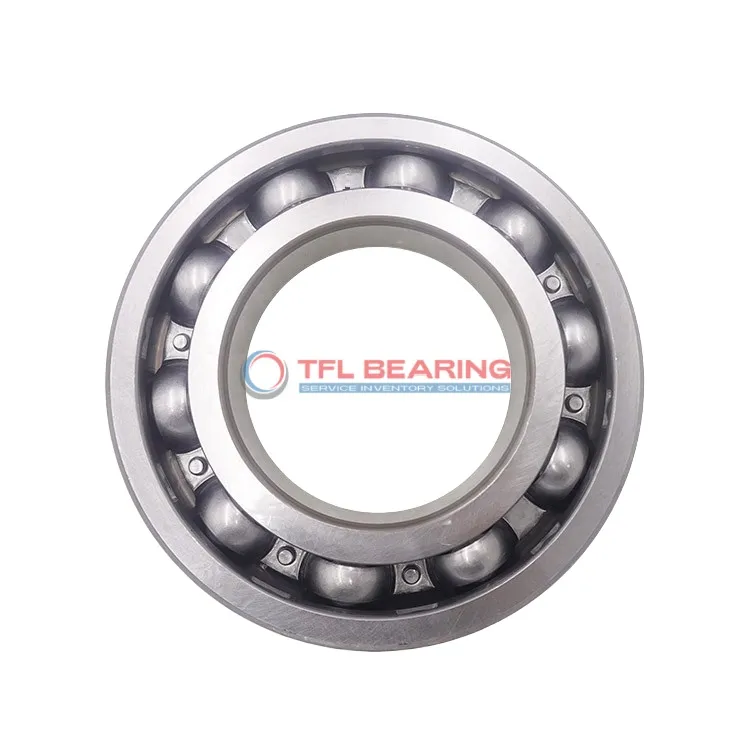

Single Row Deep Groove Ball Bearings 6226

Single Row Deep Groove Ball Bearings 6226

The 6226 is a single-row deep groove ball bearing with a 130mm bore and 230mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3507 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the P6 tolerance ensures precise performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 5860g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6226
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 40 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3507 lbf
  • Static Radial Load 29675 lbf
  • Max Speed 3600 rpm
  • Weight 5860 g
  • price（$） 157.14
Single Row Deep Groove Ball Bearings 6226 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6226 Bearing

6226 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 3507 lbf.
Its single row deep groove design ensures smooth operation and efficient load distribution.

The P6 tolerance class of 6226 Bearing provides precise performance for demanding applications.
With a maximum speed of 3,600 rpm, it balances durability and efficiency in various conditions.

6226 Bearing operates reliably in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, extending service life.

The 6226 Bearing’s robust construction makes it suitable for heavy-duty radial load applications.
Its chrome steel components resist wear, ensuring long-term reliability.

Application

Industrial Uses of 6226 Bearing
The 6226 Bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads efficiently.
Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 6226 Bearing Used?
You’ll often find the 6226 Bearing in conveyor systems and electric motors, thanks to its reliable performance under continuous operation.
The open seal design makes it easy to maintain, which is handy for long-term use.

Built for Heavy-Duty Use: 6226 Bearing
The 6226 Bearing excels in applications like agricultural equipment, where its high static radial load capacity is a real advantage.
Its metric sizing ensures compatibility with a variety of machinery across different industries.

Automotive vs Industrial: Applications of 6226 Bearing
In automotive settings, the 6226 Bearing supports components like alternators and fans, offering smooth rotation.
For industrial uses, it’s a go-to for gearboxes and pulleys, where its robustness shines.

Perfect Fit for Automation: 6226 Bearing
The 6226 Bearing works well in automated systems, such as robotic arms, due to its precise radial load handling.
Its temperature range also makes it suitable for environments with fluctuating heat conditions.
