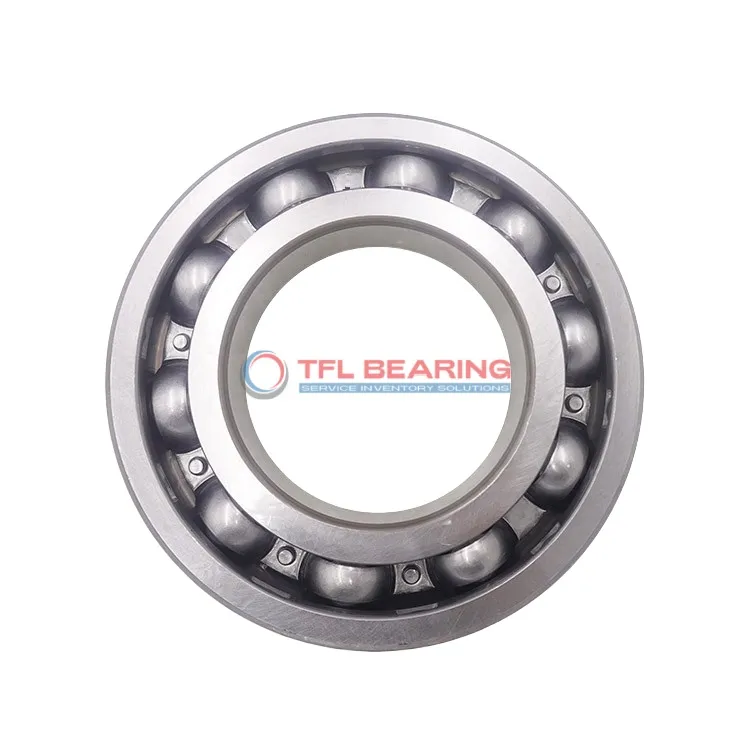

Single Row Deep Groove Ball Bearings 6226/W64

Single Row Deep Groove Ball Bearings 6226/W64

The 6226/W64 is a single-row deep groove ball bearing with a 130mm bore and 230mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3507 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for radial load applications like electric motors or conveyor systems.

Weighing 5860g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6226/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 40 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3507 lbf
  • Static Radial Load 29675 lbf
  • Max Speed 3600 rpm
  • Weight 5860 g
Single Row Deep Groove Ball Bearings 6226/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6226/W64 Bearing

6226/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3507 lbf, ensuring steady performance in various applications.

The solid oil lubrication in 6226/W64 Bearing reduces friction and extends maintenance intervals.
With a maximum speed of 3,600 rpm, it balances efficiency and durability.

6226/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Key Fields for 6226/W64 Bearing
In industrial settings, 6226/W64 Bearing is commonly used in electric motors and pumps, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life even in continuous operation.

Where Is 6226/W64 Bearing Used?
You’ll often spot 6226/W64 Bearing in conveyor systems and agricultural machinery, thanks to its robust chrome steel construction. Its ABEC 1 tolerance makes it suitable for applications where precision isn’t overly critical but reliability is key.

Built for Heavy-Duty Use: 6226/W64 Bearing
This bearing shines in construction equipment like compactors, where its high static radial load capacity comes into play. The wide temperature range (-30° to 120°C) allows it to perform in varying environmental conditions.

Automotive vs Industrial: Applications of 6226/W64 Bearing
While 6226/W64 Bearing can support auxiliary automotive components, it’s particularly valued in industrial gearboxes for its balance of load capacity and speed rating. The open design simplifies inspection and relubrication during maintenance cycles.

Perfect Fit for Automation: 6226/W64 Bearing
In automated packaging lines, 6226/W64 Bearing provides smooth rotation for rollers and pulleys. The metric dimensions make it easy to integrate with European-designed machinery systems.
