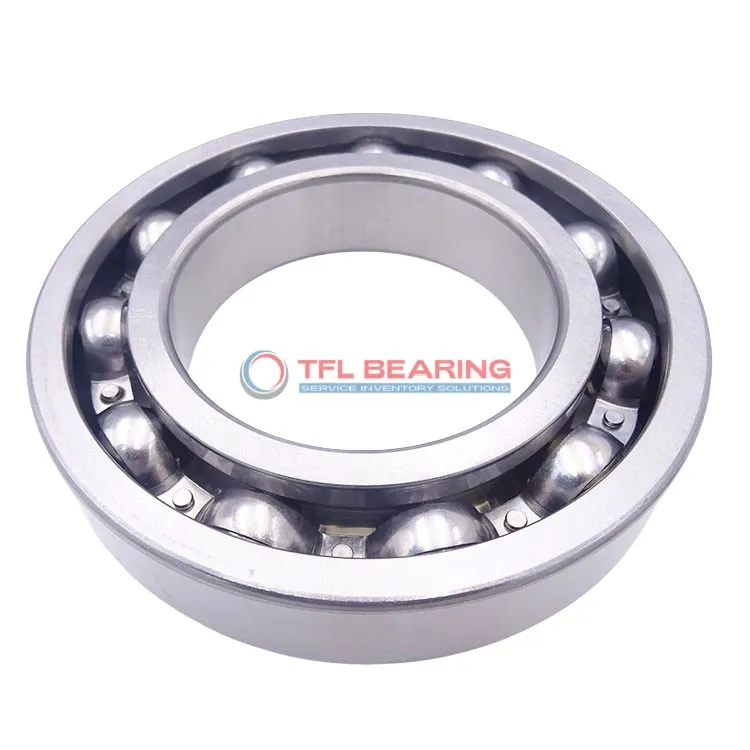

Single Row Deep Groove Ball Bearings 6224 MA/C3B20

Single Row Deep Groove Ball Bearings 6224 MA/C3B20

The 6224 MA/C3B20 is a single-row deep groove ball bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32822 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C3 radial clearance, it’s suited for applications where slight expansion due to heat is expected. Ideal for industrial machinery, pumps, or electric motors handling moderate to heavy radial loads.

Weighing 6.17kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, making it a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6224 MA/C3B20
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 32822 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 5600 rpm
  • Weight 6.17 kg
  • price（$） 229.428
Single Row Deep Groove Ball Bearings 6224 MA/C3B20 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6224 MA/C3B20 Bearing

6224 MA/C3B20 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 32822 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With a maximum speed of 5,600 rpm, it maintains efficiency under demanding conditions.

6224 MA/C3B20 Bearing operates in temperatures from -30°C to 120°C, adapting to various environments.
Its open design simplifies maintenance, while the C3 clearance allows for thermal expansion.

Application

Industrial Uses of 6224 MA/C3B20 Bearing
6224 MA/C3B20 Bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6224 MA/C3B20 Bearing Used?
In automotive applications, 6224 MA/C3B20 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. Its C3 clearance also accommodates thermal expansion during high-speed operations.

Built for Heavy-Duty Use: 6224 MA/C3B20 Bearing
For industrial fans and blowers, 6224 MA/C3B20 Bearing handles continuous operation with minimal maintenance. The machined metal cage adds durability, making it suitable for high-vibration environments.

Automotive vs Aerospace: Applications of 6224 MA/C3B20 Bearing
While 6224 MA/C3B20 Bearing excels in automotive systems like drivetrains, its precision also suits aerospace auxiliary equipment. The wide temperature range ensures performance in varying climates.

Perfect Fit for Automation: 6224 MA/C3B20 Bearing
In robotic arms and conveyor systems, 6224 MA/C3B20 Bearing provides smooth motion with its deep groove design. The ABEC 1 tolerance balances cost and performance for industrial automation.
