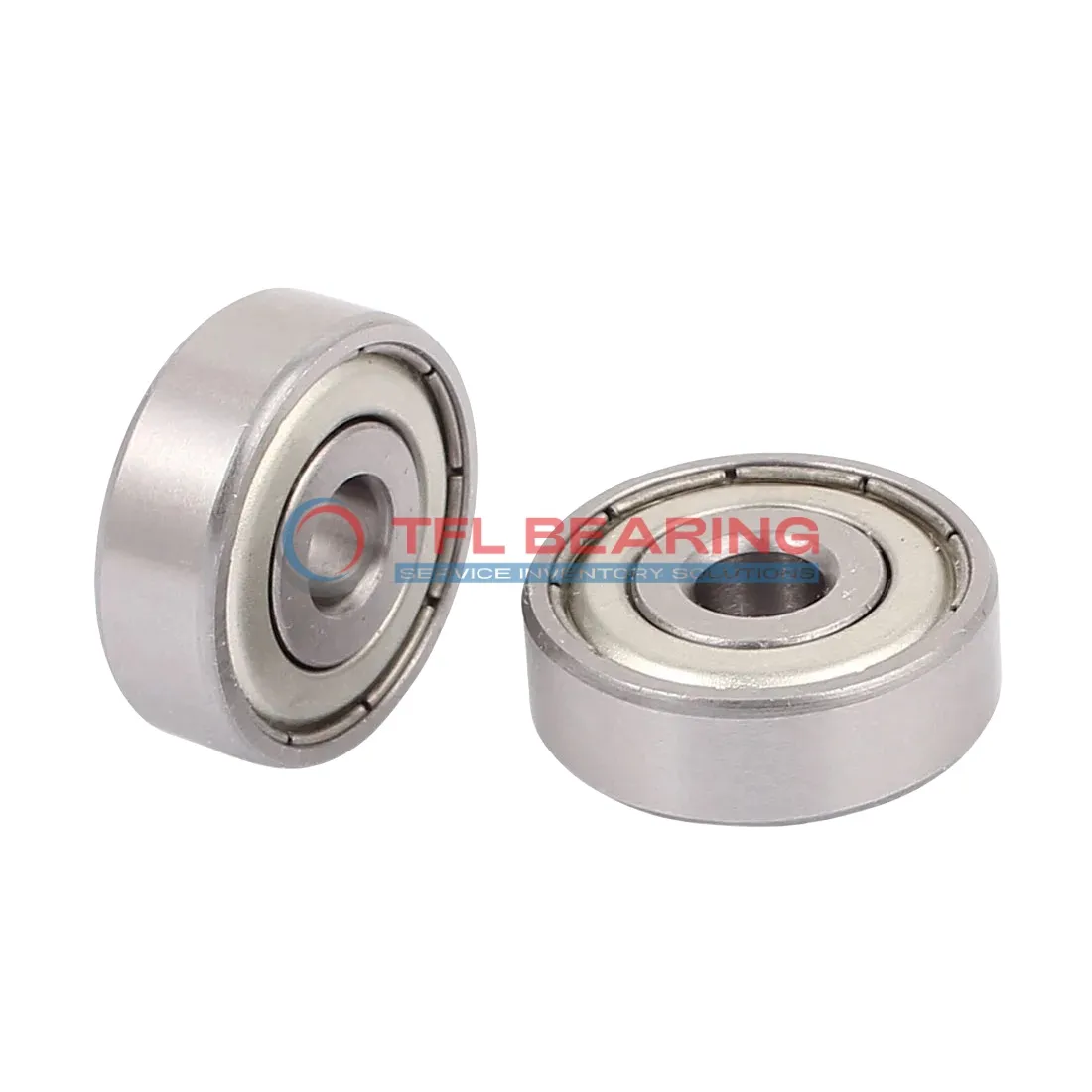

Single Row Deep Groove Ball Bearings 6222-Z

Single Row Deep Groove Ball Bearings 6222-Z

The 6222-Z is a single-row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and runs smoothly at speeds up to 4300 RPM.

Shielded on both sides, it keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, while the P6 tolerance ensures precise operation.

Suitable for temperatures from -30°C to 120°C, it’s a reliable choice for industrial machinery or pumps. Interchangeable with SKF bearings, it’s handy for replacements.

Weighing 4.49kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222-Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4300 rpm
  • Weight 4.49 kg
  • price（$） 65.52
Single Row Deep Groove Ball Bearings 6222-Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 6222-Z Bearing

6222-Z Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33946 lbf, making it suitable for demanding applications.

The shielded design of 6222-Z Bearing helps keep contaminants out while retaining lubrication.
This ensures smooth operation and reduces the need for frequent maintenance.

With a maximum speed of 4,300 rpm, 6222-Z Bearing balances performance and durability.
Its stainless steel cage maintains ball alignment, extending the bearing’s service life.

6222-Z Bearing operates effectively in temperatures ranging from -30° to 120°C.
This makes it versatile for use in various industrial environments.

Application

Industrial Uses of 6222-Z Bearing
6222-Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads efficiently in demanding environments.

What Makes 6222-Z Bearing a Preferred Choice?
In automotive applications, 6222-Z Bearing fits well in wheel hubs and transmissions, offering reliable performance under radial stress. Its grease lubrication reduces maintenance needs, making it a practical option for long-term use.

Built for Heavy-Duty Use: 6222-Z Bearing
For automation systems, 6222-Z Bearing works smoothly in conveyor belts and robotic arms, thanks to its stainless steel cage. The P6 tolerance class ensures precision, which is vital for consistent operation in automated setups.

Light-Duty vs Heavy-Duty: Best Uses for 6222-Z Bearing
In light-duty scenarios like household appliances, 6222-Z Bearing provides quiet and efficient operation. For heavier tasks such as industrial gearboxes, its dynamic load capacity ensures durability and prolonged service life.
