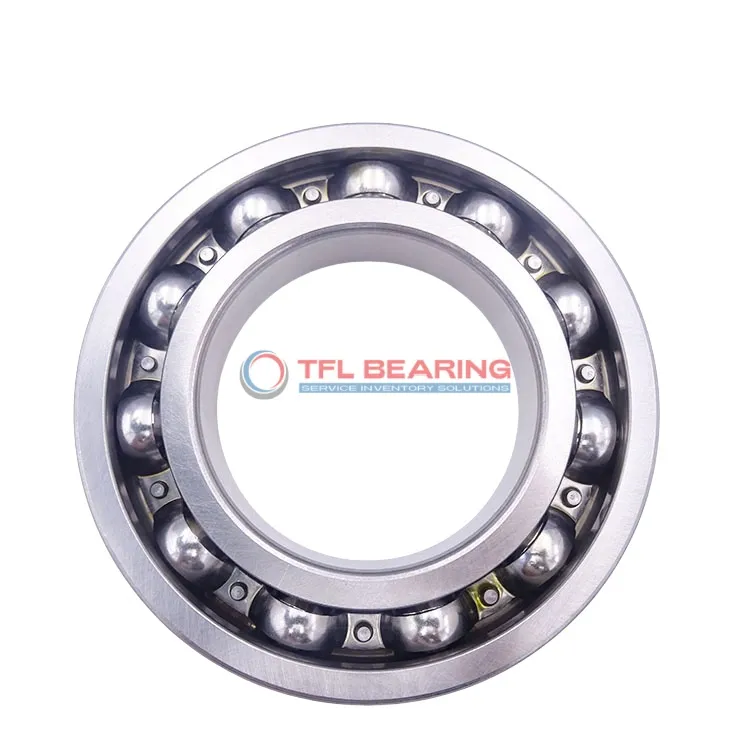

Single Row Deep Groove Ball Bearings 6222/W64

Single Row Deep Groove Ball Bearings 6222/W64

The 6222/W64 is a single row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and runs smoothly at speeds up to 4300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for radial load applications like electric motors or pumps where consistent performance is key.

Weighing 4450g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4300 rpm
  • Weight 4450 g
  • price（$） 102.24
Single Row Deep Groove Ball Bearings 6222/W64 dimension drawing
Download DWG Download PDF

Features

How Does 6222/W64 Bearing Reduce Friction?

6222/W64 Bearing features a single row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

Solid oil lubrication in 6222/W64 Bearing maintains consistent performance, even at high speeds.
With a maximum speed of 4,300 rpm, it balances efficiency and reliability for various applications.

6222/W64 Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its robust design makes it suitable for demanding environments without compromising performance.

Application

Common Applications of 6222/W64 Bearing
In industrial settings, 6222/W64 Bearing is widely used in electric motors and pumps due to its reliable radial load capacity and solid oil lubrication. The open design simplifies inspections and re-lubrication in demanding environments.

Where Is 6222/W64 Bearing Used?
You’ll often spot 6222/W64 Bearing in conveyor systems and agricultural machinery, where its chrome steel construction handles moderate speeds and heavy loads effortlessly. Its ABEC 1 tolerance ensures consistent performance without overcomplicating maintenance.

Built for Heavy-Duty Use: 6222/W64 Bearing
This bearing excels in construction equipment like compactors, where its 200mm outer diameter provides stability under vibration. The -30° to 120°C range makes it adaptable to both hot workshops and chilly outdoor sites.

Automotive vs Industrial: Applications of 6222/W64 Bearing
While 6222/W64 Bearing fits truck wheel hubs nicely, it’s equally at home in factory gearboxes. The 110mm bore accommodates larger shafts commonly found in commercial vehicles and production line machinery.

Perfect Fit for Automation: 6222/W64 Bearing
In packaging machines, 6222/W64 Bearing’s solid oil lubrication reduces downtime between services. The ISO P0 tolerance keeps operations smooth without requiring ultra-precise alignment during installation.
