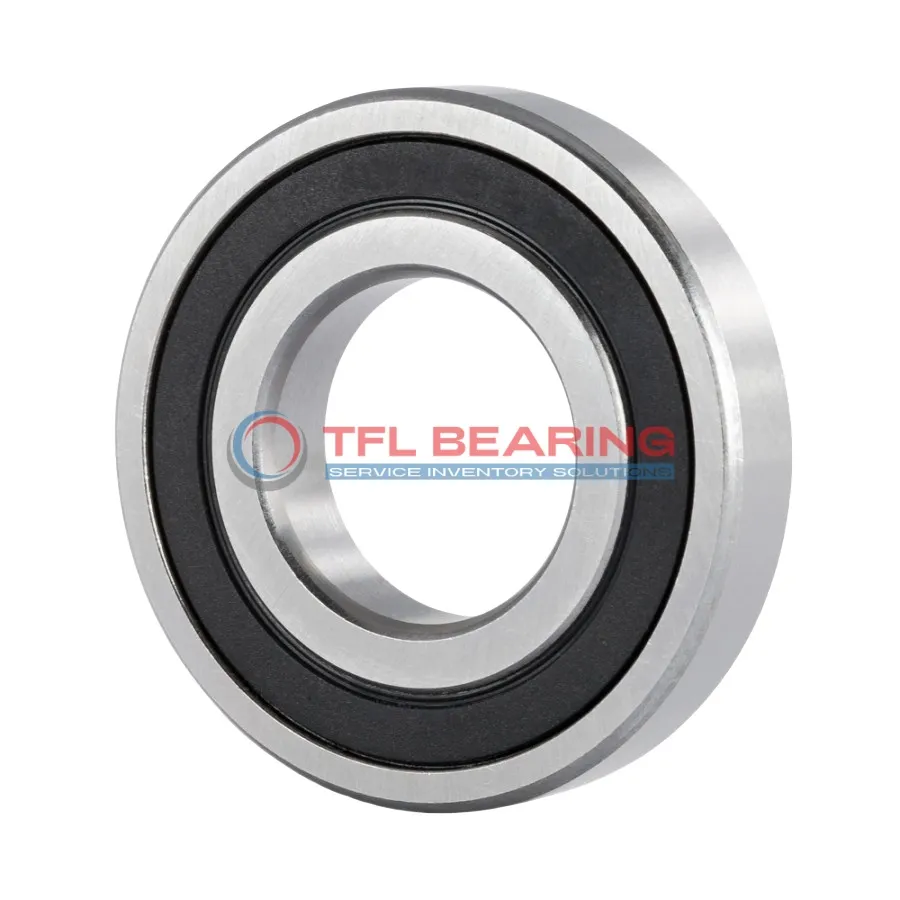

Single Row Deep Groove Ball Bearings 62209-2RS1/W64

The 62209-2RS1/W64 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7464 lbf and operates smoothly at speeds up to 5000 RPM.

Sealed on both sides, this bearing keeps dirt out and solid oil lubrication in, reducing maintenance needs. Its chrome steel cage ensures durability even under continuous use.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, making replacements straightforward.

Ideal for electric motors or pumps where reliable radial load support is needed. Weighing 0.51kg, it offers a good balance of strength and manageability. Compliant with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 62209-2RS1/W64
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 45 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 85 mm
Outer Dia Tolerance -0.013mm to 0
Width 23 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 7464 lbf
Static Radial Load 4856 lbf
Max Speed 5000 rpm
Weight 0.51 kg

Single Row Deep Groove Ball Bearings 62209-2RS1/W64 dimension drawing

Download DWG Download PDF

Features

Why Choose 62209-2RS1/W64 Bearing for Precision Tasks?

62209-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, even under high dynamic radial loads of 7464 lbf.

The ABEC 1 tolerance class ensures reliable performance, making it suitable for precision tasks.
With a temperature range of -30°C to 120°C, it performs well in various environments.

The single-row deep groove design balances load capacity and speed, reaching up to 5,000 rpm.
Its sealed structure reduces maintenance needs, offering long-term reliability.

Application

Common Applications of 62209-2RS1/W64 Bearing
In industrial settings, 62209-2RS1/W64 Bearing is a go-to for radial load support in machinery like pumps and electric motors. Its sealed design keeps contaminants out, extending service life in dusty or humid environments.
For automotive applications, 62209-2RS1/W64 Bearing works well in wheel hubs and alternators, where its solid oil lubrication ensures smooth performance. The chrome steel construction also handles high temperatures common in engine compartments.
In automation systems, 62209-2RS1/W64 Bearing fits neatly into robotic joints and conveyor rollers, thanks to its compact size. The ABEC 1 tolerance offers reliable precision for repetitive movements.
Around the home, 62209-2RS1/W64 Bearing can be found in appliances like washing machines, where durability matters. Its sealed feature prevents grease leaks, keeping things tidy.
