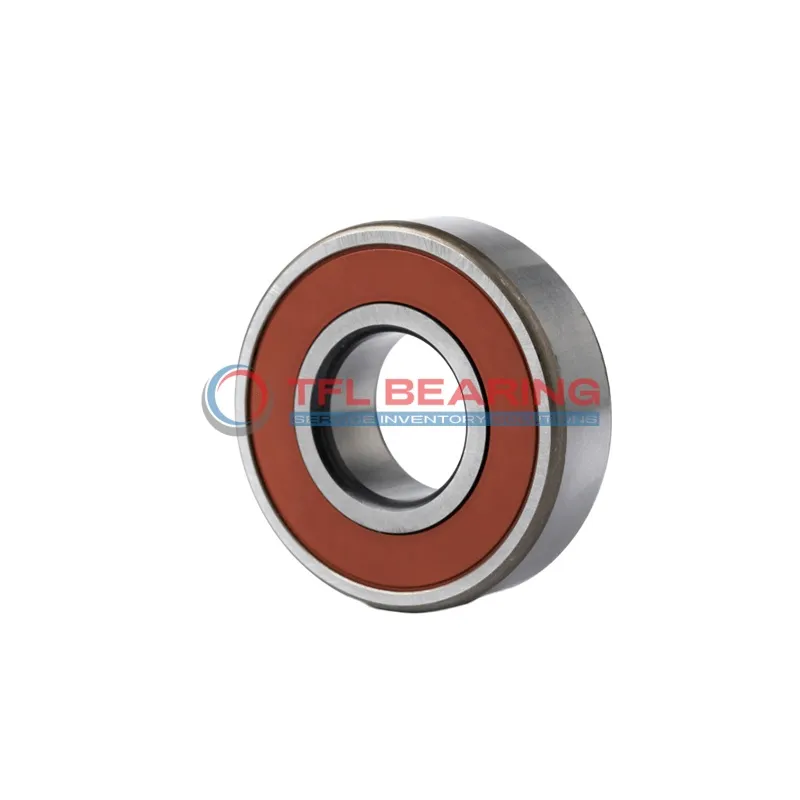

Single Row Deep Groove Ball Bearings 62203-2RS1

Single Row Deep Groove Ball Bearings 62203-2RS1

The 62203-2RS1 is a compact single-row deep groove ball bearing, measuring 17mm by 40mm by 16mm. Made from chrome steel with stainless steel cage, it offers reliable performance for radial loads up to 2149 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing can handle speeds up to 12,000 RPM and operates in temperatures from -30°C to 120°C.

With P6 tolerance and CN clearance, it provides smooth rotation for precision applications. This model is interchangeable with SKF bearings for easy replacement.

Ideal for electric motors, pumps, or small machinery where sealed protection is needed. Weighing just 89g, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62203-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2149 lbf
  • Static Radial Load 1068 lbf
  • Max Speed 12000 rpm
  • Weight 0.089 kg
  • price（$） 6.741
Single Row Deep Groove Ball Bearings 62203-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 62203-2RS1 Bearing for Precision Tasks?

62203-2RS1 Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide excellent durability, handling dynamic radial loads up to 2149 lbf.
The stainless steel cage ensures smooth operation, reducing friction and wear.
With a maximum speed of 12,000 rpm, it delivers reliable performance in various applications.

Application

Industrial Uses of 62203-2RS1 Bearing
62203-2RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 62203-2RS1 Bearing Used?
In automotive applications, 62203-2RS1 Bearing fits well in alternators and small gearboxes, providing smooth radial load support. Its metric sizing makes it versatile for various vehicle models.

Built for Heavy-Duty Use: 62203-2RS1 Bearing
For automation systems, 62203-2RS1 Bearing works reliably in conveyor belts and robotic arms. The grease lubrication reduces maintenance needs, ideal for continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 62203-2RS1 Bearing
In consumer electronics, 62203-2RS1 Bearing is found in appliances like washing machines, offering quiet performance. Its stainless steel cage adds longevity even with frequent use.
