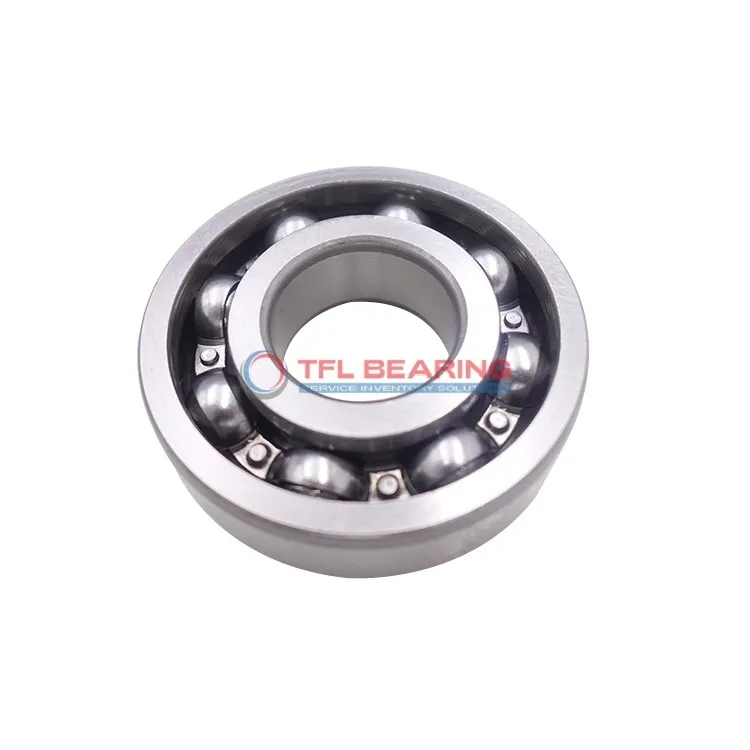

Single Row Deep Groove Ball Bearings 6220/HC5C4S1VK1761

Single Row Deep Groove Ball Bearings 6220/HC5C4S1VK1761

The 6220/HC5C4S1VK1761 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, designed for radial loads. It’s built from chrome steel for durability and features silicon nitride balls for smoother operation.

This bearing handles radial loads up to 27427 lbf and can spin at speeds up to 3600 RPM. Its open design allows for easy maintenance, while the chrome steel cage ensures reliable performance.

With a C4 radial clearance, it’s suitable for applications where slight expansion is expected. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various environments.

Weighing 3120g, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for machinery and equipment requiring dependable radial load support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220/HC5C4S1VK1761
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
  • price（$） 2938.797
Single Row Deep Groove Ball Bearings 6220/HC5C4S1VK1761 dimension drawing
Download DWG Download PDF

Features

How Does 6220/HC5C4S1VK1761 Bearing Handle High-Temperature Applications?

6220/HC5C4S1VK1761 Bearing is built with chrome steel rings and silicon nitride balls, making it suitable for temperatures up to 200°C.
Its high-temperature resistance ensures stable performance in demanding industrial environments.

The C4 radial clearance allows for thermal expansion, maintaining smooth operation under varying conditions.
With a dynamic radial load capacity of 27427 lbf, it handles heavy loads efficiently.

The open design simplifies maintenance, while the chrome steel cage enhances durability.
Its ABEC 1 tolerance ensures reliable precision in radial load applications.

Application

Industrial Uses of 6220/HC5C4S1VK1761 Bearing
In heavy machinery like pumps and compressors, 6220/HC5C4S1VK1761 Bearing handles radial loads with ease, thanks to its deep groove design. The chrome steel rings and silicon nitride balls offer durability in demanding environments.

Where Is 6220/HC5C4S1VK1761 Bearing Used?
You’ll often find 6220/HC5C4S1VK1761 Bearing in automotive applications, such as electric motors and transmissions, where its high-temperature tolerance is a plus. The C4 clearance ensures smooth operation even under varying thermal conditions.

Built for Heavy-Duty Use: 6220/HC5C4S1VK1761 Bearing
This bearing excels in industrial fans and blowers, where its robust construction withstands continuous operation. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 6220/HC5C4S1VK1761 Bearing
In automotive systems, 6220/HC5C4S1VK1761 Bearing supports high radial loads in wheel hubs and gearboxes. For aerospace, its lightweight silicon nitride balls reduce overall component weight without sacrificing performance.

Key Fields for 6220/HC5C4S1VK1761 Bearing
Medical imaging devices benefit from 6220/HC5C4S1VK1761 Bearing’s precision and low friction, ensuring accurate results. The high-temperature range also makes it suitable for sterilisation equipment.
