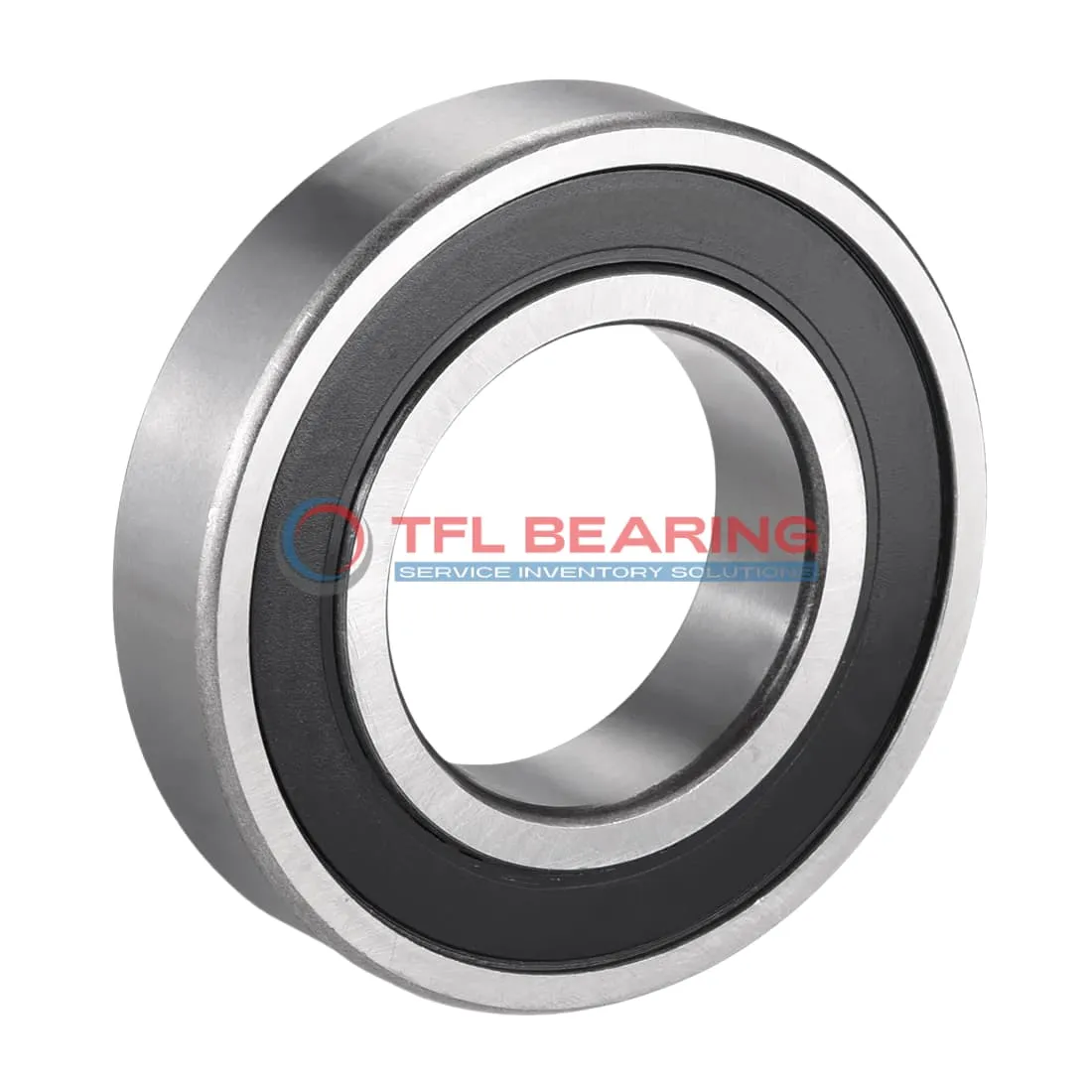

Single Row Deep Groove Ball Bearings 6219-2RS1

Single Row Deep Groove Ball Bearings 6219-2RS1

The 6219-2RS1 is a sealed single row deep groove ball bearing with a 95mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 25628 lbf and operates smoothly at speeds up to 2400 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2.72kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and environmentally friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6219-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 25628 lbf
  • Static Radial Load 18322 lbf
  • Max Speed 2400 rpm
  • Weight 2.72 kg
  • price（$） 52.281
Single Row Deep Groove Ball Bearings 6219-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6219-2RS1 Bearing Reduce Friction?

6219-2RS1 Bearing features sealed construction with grease lubrication, ensuring smooth operation with minimal friction.
The chrome steel rings and balls enhance durability while maintaining consistent performance under radial loads.

With a dynamic radial load capacity of 25,628 lbf, it handles demanding applications effortlessly.
Its P6 tolerance class ensures precise alignment, reducing wear and extending service life.

The stainless steel cage keeps the balls in place, further minimising friction and noise.
Operating within a temperature range of -30° to 120°C, it remains reliable in various conditions.

Application

Industrial Uses of 6219-2RS1 Bearing
6219-2RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6219-2RS1 Bearing supports components such as alternators and water pumps, providing reliable performance under radial loads. Its grease lubrication reduces maintenance needs, making it a practical choice for vehicle systems.

For automation equipment, 6219-2RS1 Bearing is ideal for robotic arms and conveyor systems, where smooth operation is essential. The stainless steel cage adds extra resistance to wear, extending the bearing’s service life.

In household appliances like washing machines, 6219-2RS1 Bearing offers quiet and efficient performance. Its sealed design protects against dust and moisture, ensuring long-term reliability in everyday use.
