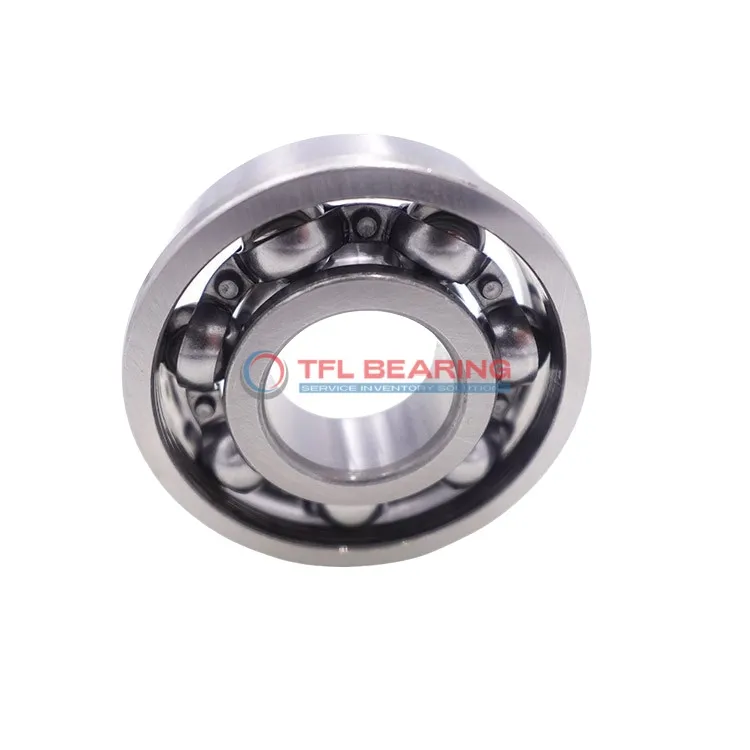

Single Row Deep Groove Ball Bearings 6217/C4S1VK176

Single Row Deep Groove Ball Bearings 6217/C4S1VK176

The 6217/C4S1VK176 is a single-row deep groove ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 18884 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and C4 radial clearance make it suitable for applications requiring slight flexibility in alignment. The chrome steel cage ensures reliable performance under stress.

This bearing works well in temperatures ranging from -30°C to 200°C, making it versatile for various environments. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for industrial machinery or heavy equipment where radial load support is needed. Weighing 1740g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6217/C4S1VK176
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 18884 lbf
  • Static Radial Load 13916 lbf
  • Max Speed 4300 rpm
  • Weight 1740 g
Single Row Deep Groove Ball Bearings 6217/C4S1VK176 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6217/C4S1VK176 Bearing

6217/C4S1VK176 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 18884 lbf, making it suitable for demanding applications.

The single-row deep groove design ensures smooth operation and reduces friction.
With a maximum speed of 4,300 rpm, it balances performance and durability.

6217/C4S1VK176 Bearing operates in temperatures from -30°C to 200°C, adapting to various environments.
The chrome steel cage maintains ball alignment, extending the bearing’s service life.

Its open seal design simplifies maintenance, reducing operational costs.
The C4 radial clearance provides flexibility in different working conditions.

Application

Industrial Uses of 6217/C4S1VK176 Bearing
In conveyor systems, 6217/C4S1VK176 Bearing handles radial loads efficiently, thanks to its deep groove design. Its open seal allows for easy lubrication, making it suitable for dusty environments.

Where Is 6217/C4S1VK176 Bearing Used?
You’ll often find 6217/C4S1VK176 Bearing in electric motors, where its chrome steel construction ensures long-lasting performance. The C4 clearance also helps manage thermal expansion in high-speed applications.

Built for Heavy-Duty Use: 6217/C4S1VK176 Bearing
This bearing works well in agricultural machinery, handling heavy radial loads with ease. Its wide temperature range makes it reliable in both hot and cold conditions.

Automotive vs Industrial: Applications of 6217/C4S1VK176 Bearing
In cars, 6217/C4S1VK176 Bearing supports wheel hubs, while in factories, it’s used in pumps and gearboxes. The metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: 6217/C4S1VK176 Bearing
Robotic arms benefit from 6217/C4S1VK176 Bearing’s smooth operation and high load capacity. Its simple design reduces maintenance needs in automated production lines.
