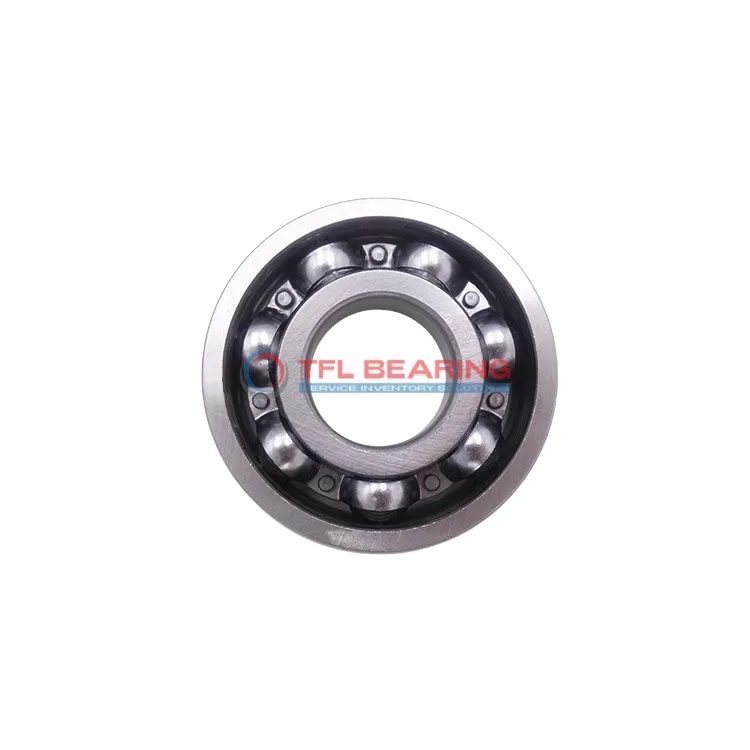

Single Row Deep Groove Ball Bearings 6216 TC/C782

Single Row Deep Groove Ball Bearings 6216 TC/C782

The 6216 TC/C782 is a single-row deep groove ball bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 16344 lbf and operates smoothly at speeds up to 4500 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1380g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6216 TC/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 26 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16344 lbf
  • Static Radial Load 11915 lbf
  • Max Speed 4500 rpm
  • Weight 1380 g
  • price（$） 125.28
Single Row Deep Groove Ball Bearings 6216 TC/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6216 TC/C782 Bearing

6216 TC/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16344 lbf, making it suitable for demanding applications.

The chrome steel cage ensures proper ball alignment, reducing wear and extending service life.
With a maximum speed of 4,500 rpm, it delivers reliable performance in various conditions.

6216 TC/C782 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance while maintaining durability.

Application

Industrial Uses of 6216 TC/C782 Bearing
The 6216 TC/C782 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, extending service life in demanding environments.

In automotive applications, 6216 TC/C782 Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under heavy loads. The chrome steel construction offers excellent durability, making it suitable for long-term use.

For automation equipment, 6216 TC/C782 Bearing supports precise movements in robotic arms and conveyor belts. Its ABEC 1 tolerance ensures consistent operation, even in high-speed scenarios.

In household appliances like washing machines, 6216 TC/C782 Bearing reduces noise and vibration for quieter operation. The wide temperature range also makes it adaptable to various domestic conditions.
