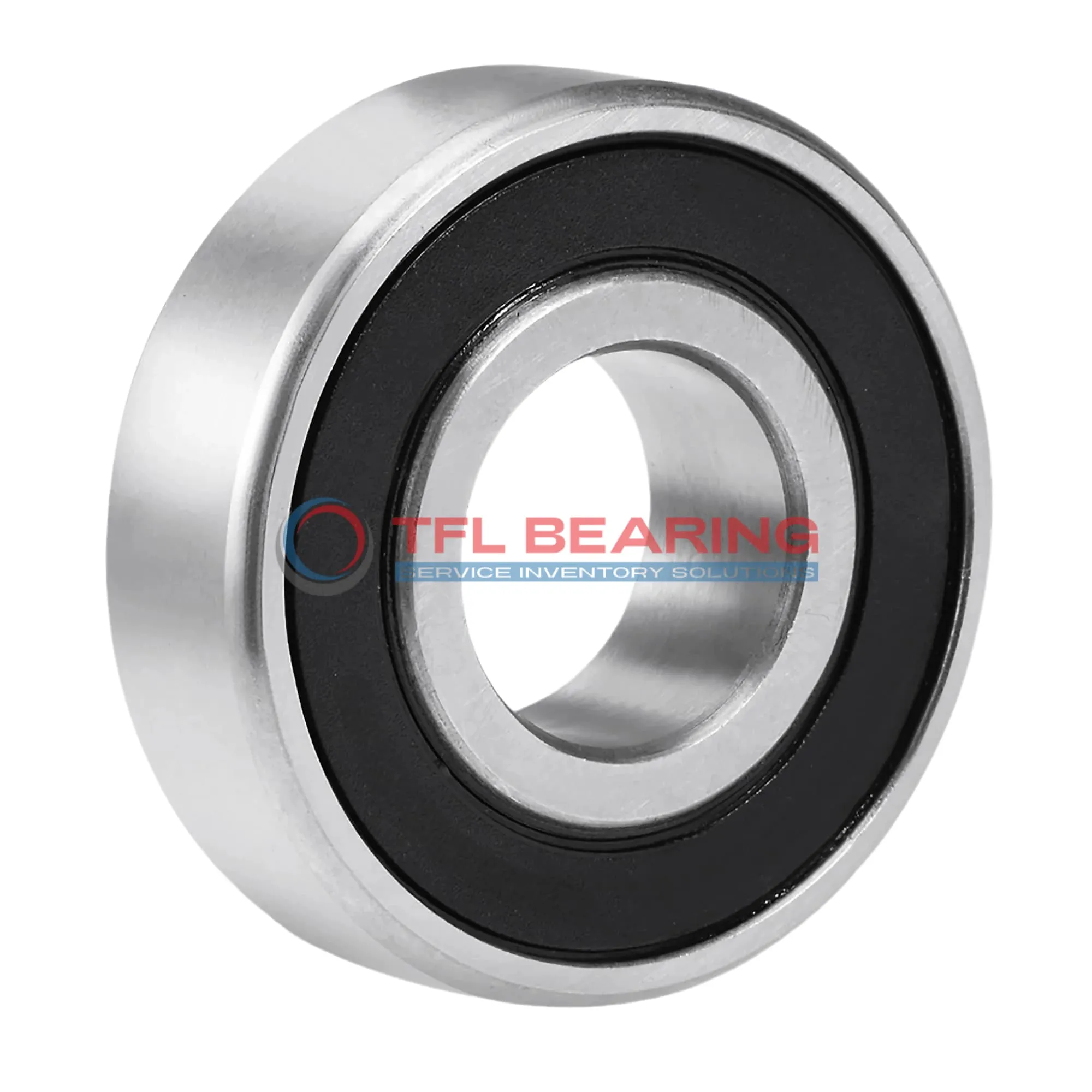

Single Row Deep Groove Ball Bearings 6216-2RS1/W64

Single Row Deep Groove Ball Bearings 6216-2RS1/W64

The 6216-2RS1/W64 is a single-row deep groove ball bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16344 lbf and operates smoothly at speeds up to 4500 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. Its ABEC 1 tolerance ensures consistent performance without being overly precise.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 1380g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6216-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 26 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16344 lbf
  • Static Radial Load 11915 lbf
  • Max Speed 4500 rpm
  • Weight 1380 g
Single Row Deep Groove Ball Bearings 6216-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6216-2RS1/W64 Bearing

6216-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16344 lbf, ensuring reliable performance in various applications.
The sealed design and solid oil lubrication reduce maintenance needs while extending service life.
With a maximum speed of 4,500 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of 6216-2RS1/W64 Bearing
This bearing is commonly used in conveyor systems and industrial fans, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

What Makes 6216-2RS1/W64 Bearing a Preferred Choice?
In automotive applications like electric motors and pumps, 6216-2RS1/W64 Bearing offers reliable radial load support. Its chrome steel construction provides durability under continuous use.

Perfect Fit for Automation: 6216-2RS1/W64 Bearing
You’ll find this bearing in robotic arms and assembly line equipment, where precision and low maintenance are key. The ABEC 1 tolerance ensures consistent performance in automated systems.

Medical vs Industrial: Where 6216-2RS1/W64 Bearing Excels
While suitable for industrial machinery, this bearing also works well in medical devices like centrifuges. Its temperature range allows for stable operation in various clinical environments.

How Does 6216-2RS1/W64 Bearing Support High-Speed Operations?
In electric fans and small appliances, this bearing handles moderate speeds while maintaining quiet operation. The sealed design protects against contaminants in household environments.
