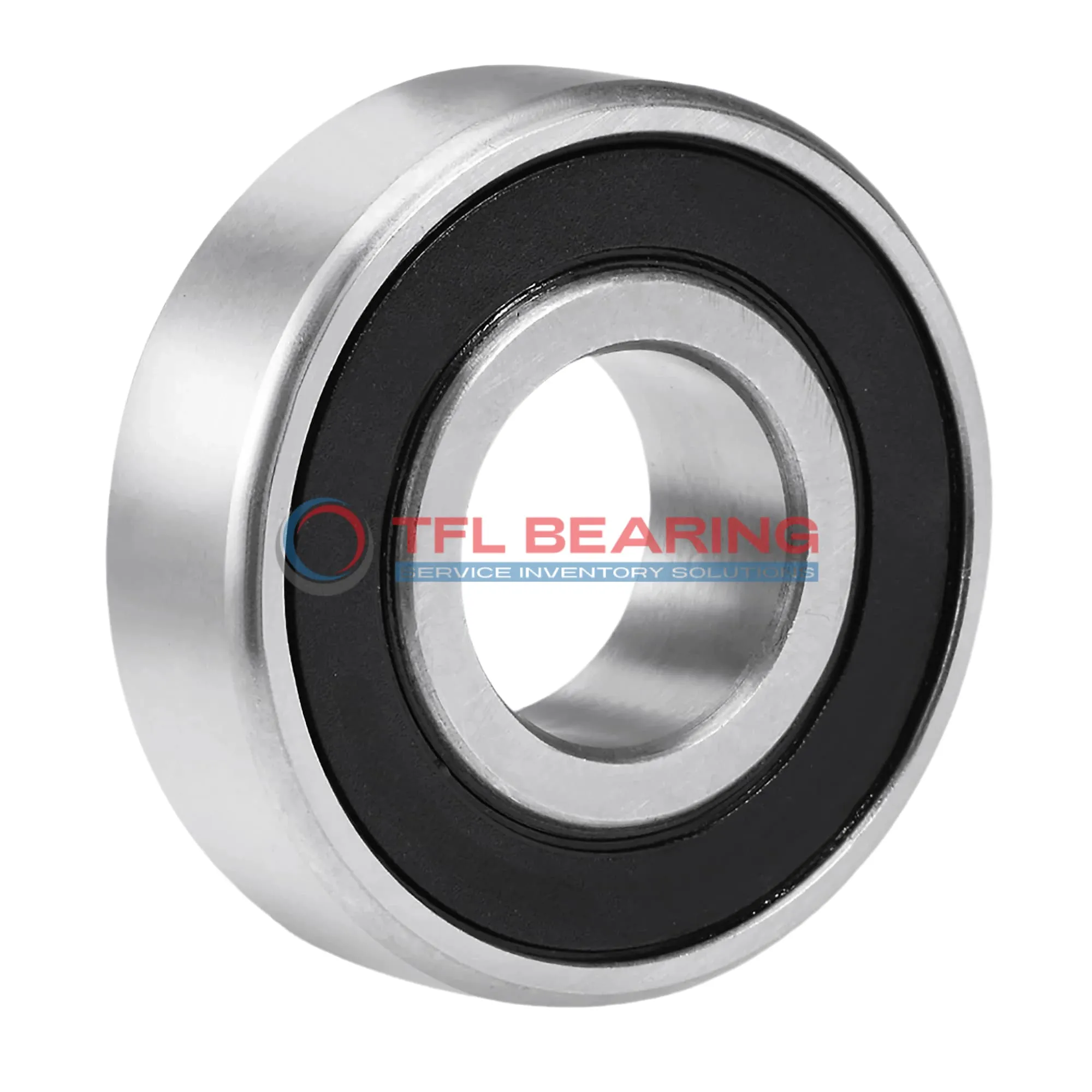

Single Row Deep Groove Ball Bearings 6215-RS1

Single Row Deep Groove Ball Bearings 6215-RS1

The 6215-RS1 is a sealed single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15489 lbf and operates smoothly at speeds up to 3200 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The stainless steel cage adds durability, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for electric motors or pumps where radial loads are common.

Weighing 1.98kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 15489 lbf
  • Static Radial Load 11016 lbf
  • Max Speed 3200 rpm
  • Weight 1.98 kg
  • price（$） 46.62
Single Row Deep Groove Ball Bearings 6215-RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6215-RS1 Bearing Reduce Friction?

6215-RS1 Bearing features a sealed design, preventing contaminants and reducing friction for smoother operation.
The chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 15489 lbf, it handles demanding conditions effortlessly.
Its P6 tolerance class guarantees precision, making it suitable for high-performance machinery.

The stainless steel cage maintains ball alignment, extending the bearing’s service life.
Operating within -30° to 120°C, 6215-RS1 Bearing performs reliably in varied environments.

Application

Industrial Uses of 6215-RS1 Bearing
The 6215-RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6215-RS1 Bearing fits well in wheel hubs and transmission systems, providing reliable radial load support. The P6 tolerance class makes it suitable for precision automotive components.

For automation equipment, 6215-RS1 Bearing works smoothly in robotic arms and conveyor systems. Its stainless steel cage reduces friction, extending service life in high-cycle operations.

Around the home, 6215-RS1 Bearing can be found in appliances like washing machines, where quiet operation matters. The sealed design also protects against dust and moisture in household environments.

Medical devices benefit from 6215-RS1 Bearing’s consistent performance in equipment like centrifuges. The temperature range allows stable operation in various clinical settings.
