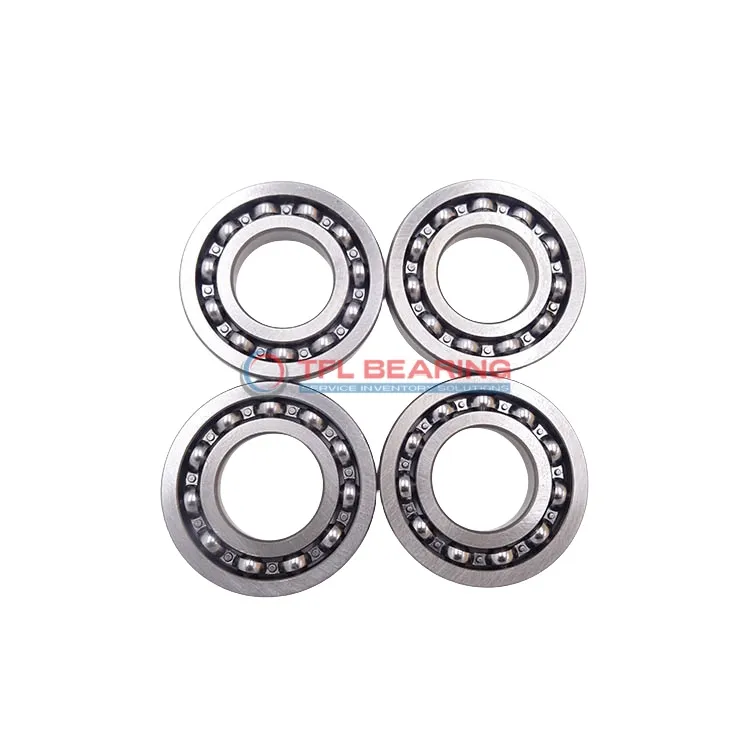

Single Row Deep Groove Ball Bearings 6215 M

Single Row Deep Groove Ball Bearings 6215 M

The 6215 M is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 15489 lbf and operates smoothly at speeds up to 9500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a P6 tolerance class, it offers precise performance for demanding applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for machinery like pumps or electric motors where radial load handling is key. Weighing 1.4kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 15489 lbf
  • Static Radial Load 11016 lbf
  • Max Speed 9500 rpm
  • Weight 1.4 kg
Single Row Deep Groove Ball Bearings 6215 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215 M Bearing

6215 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 15489 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 9,500 rpm, it delivers reliable performance in various applications.

How Does 6215 M Bearing Reduce Friction?

6215 M Bearing’s deep groove design and chrome steel construction minimise friction during operation.
The precision-engineered stainless steel cage keeps the balls evenly spaced for smooth rotation.
Its open seal type allows for easy lubrication, further reducing friction and wear.
This design ensures quiet and efficient performance even at high speeds.

Engineered for Precision: 6215 M Bearing

6215 M Bearing features a P6 tolerance class, providing high precision for demanding applications.
The chrome steel components and deep groove design ensure accurate and consistent performance.
Its static radial load capacity of 11016 lbf makes it suitable for heavy-duty use.
The bearing operates efficiently within a temperature range of -30° to 120°C.

Steel vs Ceramic Bearings: Strengths of 6215 M Bearing

6215 M Bearing uses chrome steel for both rings and balls, offering durability and cost-effectiveness.
The material choice ensures high load capacity and resistance to wear in radial applications.
Unlike ceramic bearings, it provides a balance of strength and affordability for industrial uses.
Its stainless steel cage adds to the longevity and reliability of the bearing.

Why Choose 6215 M Bearing for Precision Tasks?

6215 M Bearing’s P6 tolerance class and deep groove design make it ideal for precision tasks.
The chrome steel construction ensures consistent performance under radial loads up to 15489 lbf.
Its open design allows for easy maintenance and lubrication, enhancing longevity.
With a maximum speed of 9,500 rpm, it meets the demands of high-speed applications.

Application

Industrial Uses of 6215 M Bearing
The 6215 M Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6215 M Bearing fits well in wheel hubs and transmission systems, providing smooth rotation under heavy loads. The P6 tolerance class ensures precise alignment, reducing wear over time.

For automation equipment, 6215 M Bearing supports robotic arms and conveyor belts with reliable performance. The chrome steel construction offers durability, while the stainless steel cage resists corrosion in varied environments.

Where Is 6215 M Bearing Used?
You’ll often find 6215 M Bearing in household appliances like washing machines, where its quiet operation and durability are valued. The metric sizing makes it a versatile choice for European and Asian brands.

In agricultural machinery, 6215 M Bearing handles the rough conditions of harvesters and tractors. Its high dynamic radial load capacity ensures it can withstand shocks and vibrations during fieldwork.
