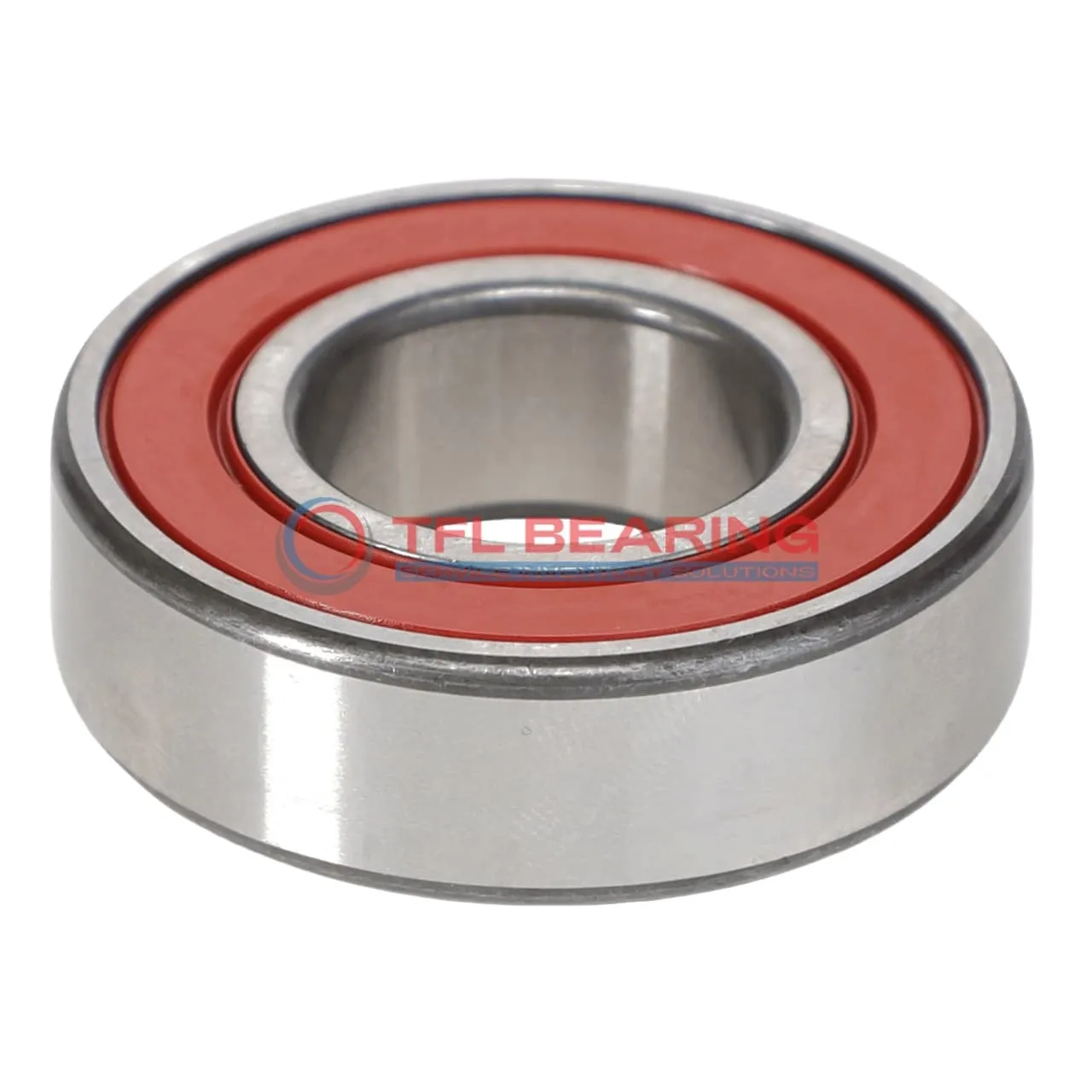

Single Row Deep Groove Ball Bearings 6214-2RS1/C3GJN

The 6214-2RS1/C3GJN is a single-row deep groove ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13983 lbf and operates smoothly at speeds up to 5000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Its robust design suits applications like electric motors or pumps where radial loads are common.

Weighing 1070g, it’s a solid choice for industrial use. Compliant with RoHS and REACH standards, it’s safe for various environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6214-2RS1/C3GJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 70 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 125 mm
Outer Dia Tolerance -0.018mm to 0
Width 24 mm
Width Tolerance -0.150mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 13983 lbf
Static Radial Load 9914 lbf
Max Speed 5000 rpm
Weight 1070 g
price（$） 23.994

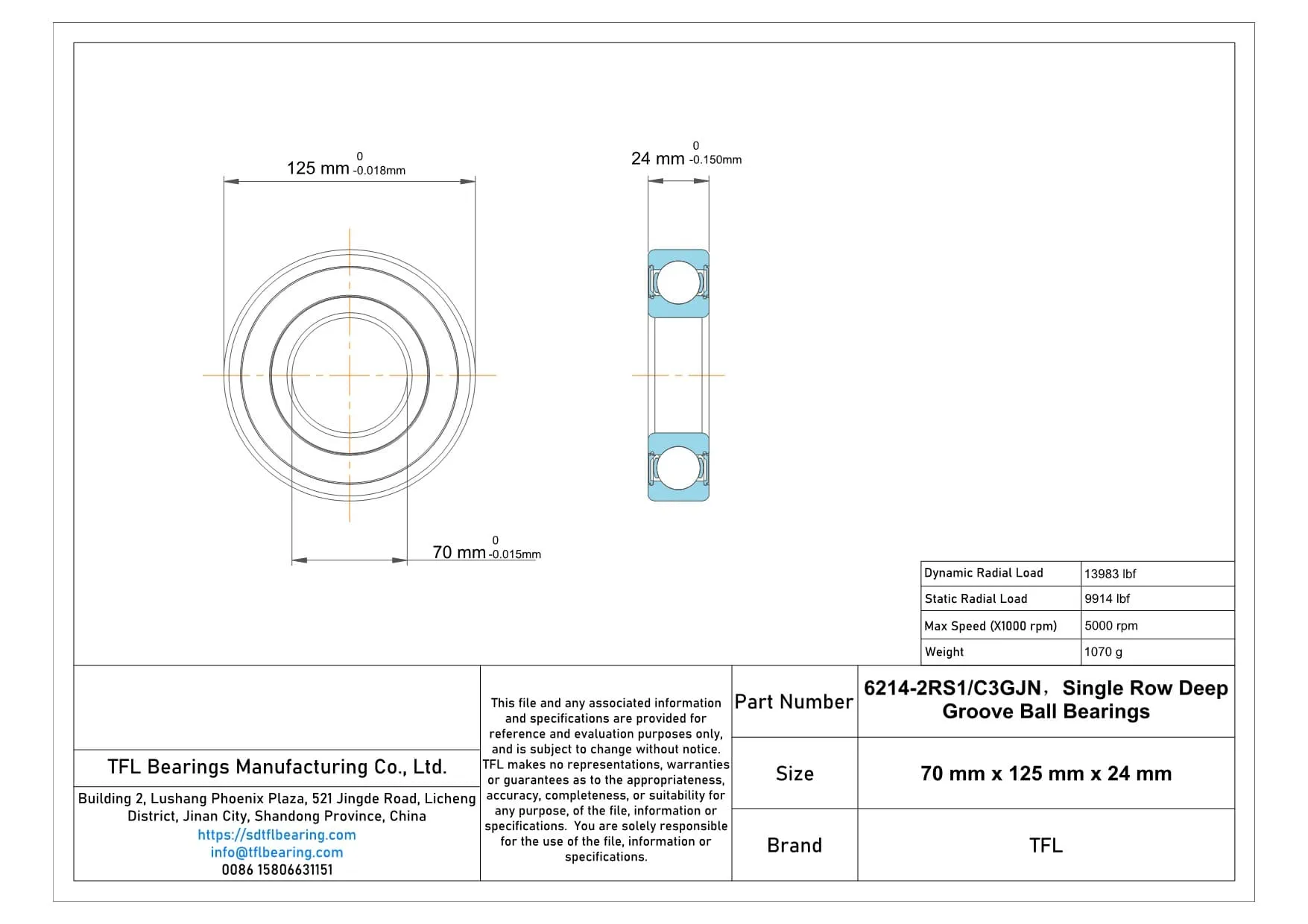

Single Row Deep Groove Ball Bearings 6214-2RS1/C3GJN dimension drawing

Download DWG Download PDF

Features

How Does 6214-2RS1/C3GJN Bearing Reduce Friction?

6214-2RS1/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its sealed construction keeps contaminants out, ensuring consistent performance over time.
The chrome steel rings and balls reduce friction, enhancing efficiency in various applications.
With a dynamic radial load capacity of 13,983 lbf, it handles demanding conditions with ease.

What Makes 6214-2RS1/C3GJN Bearing Suitable for High-Temperature Applications?

6214-2RS1/C3GJN Bearing operates reliably in temperatures ranging from -30°C to 120°C.
Its chrome steel construction resists thermal expansion, maintaining precision under heat.
The sealed design protects internal components from dust and moisture, even in harsh environments.
This ensures long-lasting performance without frequent maintenance.

Engineered for Precision: 6214-2RS1/C3GJN Bearing

6214-2RS1/C3GJN Bearing is crafted with ABEC 1 tolerance for consistent accuracy.
Its C3 radial clearance allows for slight thermal expansion, ideal for variable operating conditions.
The deep groove design ensures stable radial load handling, minimising vibration.
With a maximum speed of 5,000 rpm, it balances precision and durability.

Why Choose 6214-2RS1/C3GJN Bearing for Radial Loads?

6214-2RS1/C3GJN Bearing excels in radial load applications due to its robust chrome steel construction.
The sealed design prevents lubricant leakage and contamination, extending service life.
Its static radial load capacity of 9,914 lbf ensures reliability in heavy-duty use.
The 24 mm width provides stability, reducing wear during operation.

Application

Industrial Uses of 6214-2RS1/C3GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

What Makes 6214-2RS1/C3GJN Bearing a Preferred Choice?
In automotive applications, it’s often found in alternators and wheel hubs, thanks to its radial load capacity. The chrome steel construction provides durability for long-term use in demanding environments.

Perfect Fit for Automation: 6214-2RS1/C3GJN Bearing
For automated systems, this bearing works well in conveyor belts and robotic arms, where smooth rotation is key. Its sealed design reduces maintenance needs, making it ideal for continuous operation.

Medical vs Industrial: Where 6214-2RS1/C3GJN Bearing Excels
While it’s robust enough for industrial gear, its precision also suits medical devices like centrifuges. The temperature range ensures consistent performance in both sterile labs and factory floors.

Essential Roles of 6214-2RS1/C3GJN Bearing
In household appliances like washing machines, this bearing handles radial loads quietly and efficiently. The sealed construction protects against dust and moisture, extending its lifespan.
