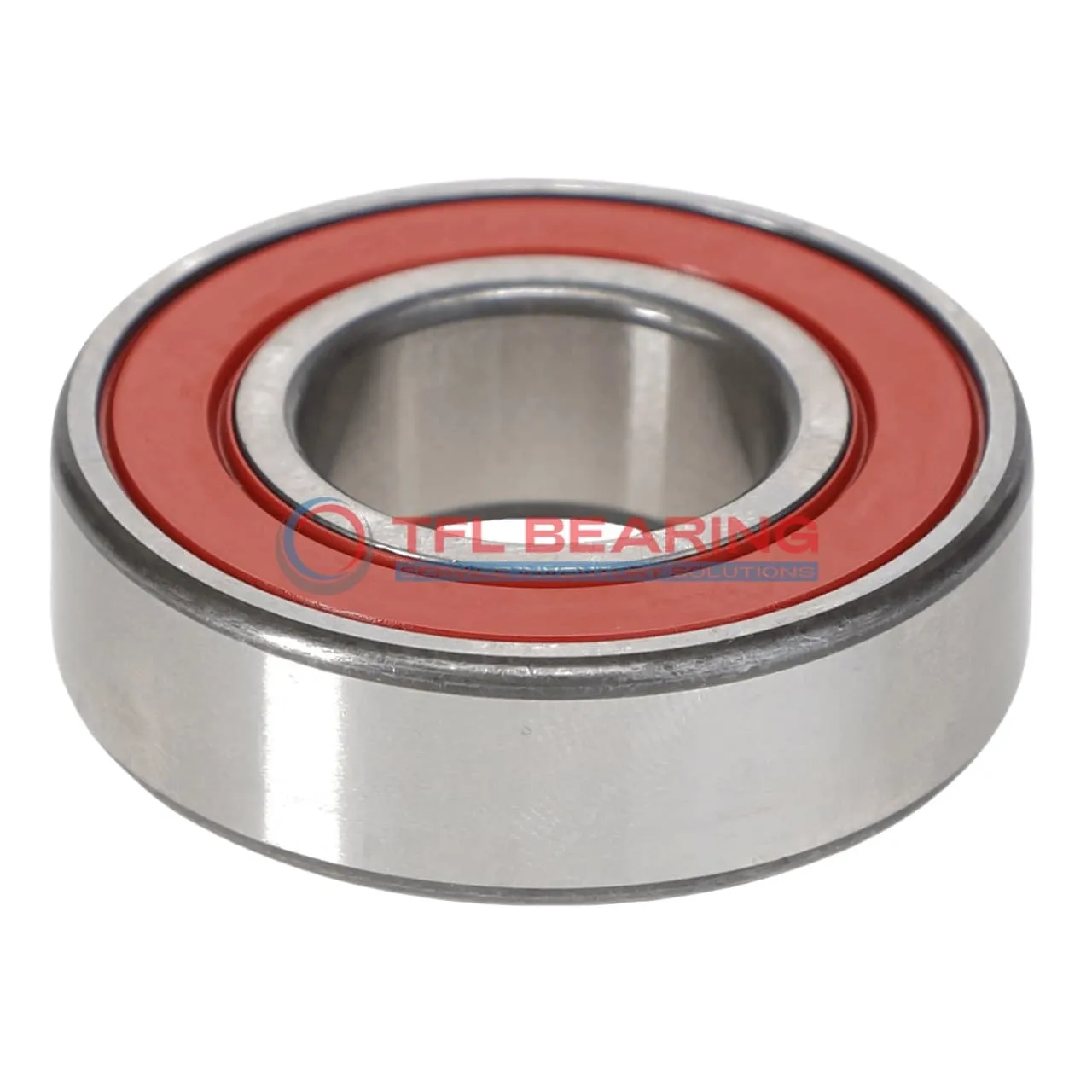

Single Row Deep Groove Ball Bearings 6214-2RS1/C3 GJN

Single Row Deep Groove Ball Bearings 6214-2RS1/C3 GJN

The 6214-2RS1/C3 GJN is a single-row deep groove ball bearing with a 70mm bore and 125mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 13983 lbf and runs smoothly at speeds up to 5000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

With a width of just 24mm, it fits compact spaces without sacrificing strength. Its chrome steel cage ensures durability under heavy use.

Suitable for industrial motors, pumps, or gearboxes, this bearing performs reliably in temperatures from -30°C to 120°C. It’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6214-2RS1/C3 GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13983 lbf
  • Static Radial Load 9914 lbf
  • Max Speed 5000 rpm
  • Weight 1070 g
  • price（$） 27.54
Single Row Deep Groove Ball Bearings 6214-2RS1/C3 GJN dimension drawing
Download DWG Download PDF

Features

How Does 6214-2RS1/C3 GJN Bearing Reduce Friction?

6214-2RS1/C3 GJN Bearing features a deep groove design, ensuring smooth radial load distribution.
Its sealed construction keeps contaminants out, reducing wear and friction.
Made from chrome steel, it offers durability and reliable performance in various conditions.
With a dynamic radial load capacity of 13,983 lbf, it handles demanding applications efficiently.

Application

Industrial Uses of 6214-2RS1/C3 GJN Bearing
6214-2RS1/C3 GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures reliable performance even under varying thermal conditions.

What Makes 6214-2RS1/C3 GJN Bearing a Preferred Choice?
In automotive applications, 6214-2RS1/C3 GJN Bearing works well in alternators and wheel hubs, thanks to its radial load capacity. The chrome steel construction provides durability for long-term use in demanding environments.

Perfect Fit for Automation: 6214-2RS1/C3 GJN Bearing
For automated systems, 6214-2RS1/C3 GJN Bearing offers smooth operation in conveyor belts and robotic arms. Its sealed design reduces maintenance needs, making it ideal for continuous operation.

Medical vs Industrial: Where 6214-2RS1/C3 GJN Bearing Excels
In medical devices, 6214-2RS1/C3 GJN Bearing ensures quiet performance in equipment like centrifuges. Its temperature range also makes it suitable for industrial ovens and other high-heat applications.
