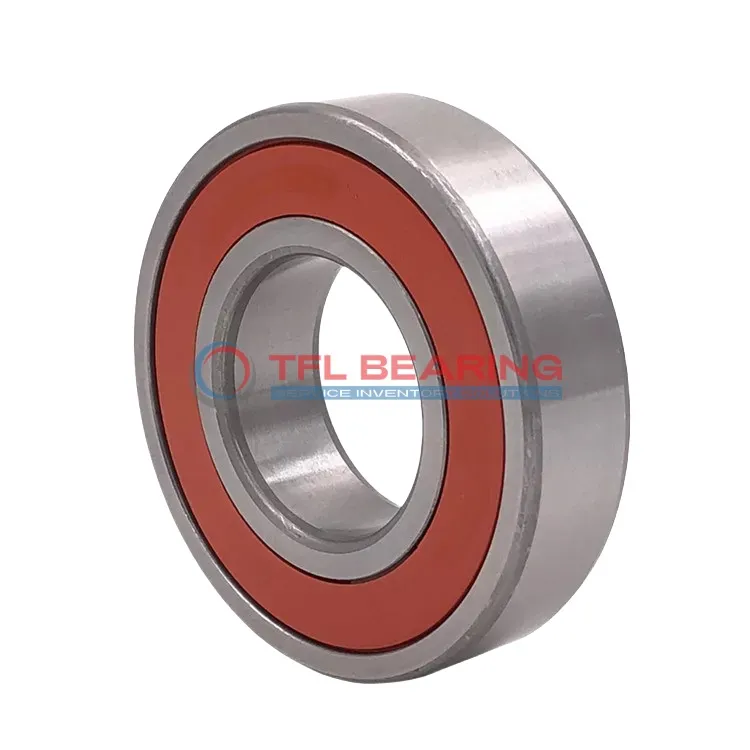

Single Row Deep Groove Ball Bearings 6213-RSJEM

Single Row Deep Groove Ball Bearings 6213-RSJEM

The 6213-RSJEM is a sealed single-row deep groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 12859 lbf and operates smoothly at speeds up to 5300 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the chrome steel cage ensures reliable performance. The bearing works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 979g, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 12859 lbf
  • Static Radial Load 9015 lbf
  • Max Speed 5300 rpm
  • Weight 979 g
  • price（$） 16.461
Single Row Deep Groove Ball Bearings 6213-RSJEM dimension drawing
Download DWG Download PDF

Features

How Does 6213-RSJEM Bearing Reduce Friction?

6213-RSJEM Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures durability and smooth operation under radial loads.
With a dynamic radial load capacity of 12859 lbf, it handles demanding applications efficiently.
The ABEC 1 tolerance class guarantees consistent performance, making it reliable for various uses.

Application

Industrial Uses of 6213-RSJEM Bearing
6213-RSJEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

Where Is 6213-RSJEM Bearing Used?
You’ll often find 6213-RSJEM Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable radial load handling. Its ABEC 1 tolerance makes it suitable for standard precision needs.

Built for Heavy-Duty Use: 6213-RSJEM Bearing
6213-RSJEM Bearing works well in conveyor systems, where its sealed design reduces maintenance needs. The wide temperature range also makes it adaptable to various working conditions.

Automotive vs Industrial: Applications of 6213-RSJEM Bearing
In cars, 6213-RSJEM Bearing supports components like fans and pulleys, while in factories, it’s used in gearboxes. Its balanced performance makes it versatile across different sectors.

Perfect Fit for Automation: 6213-RSJEM Bearing
6213-RSJEM Bearing is a solid choice for robotic arms and assembly line equipment, where smooth operation is key. The sealed design helps prolong service life even in dusty environments.
