Single Row Deep Groove Ball Bearings 6212-RS1/C3

Single Row Deep Groove Ball Bearings 6212-RS1/C3

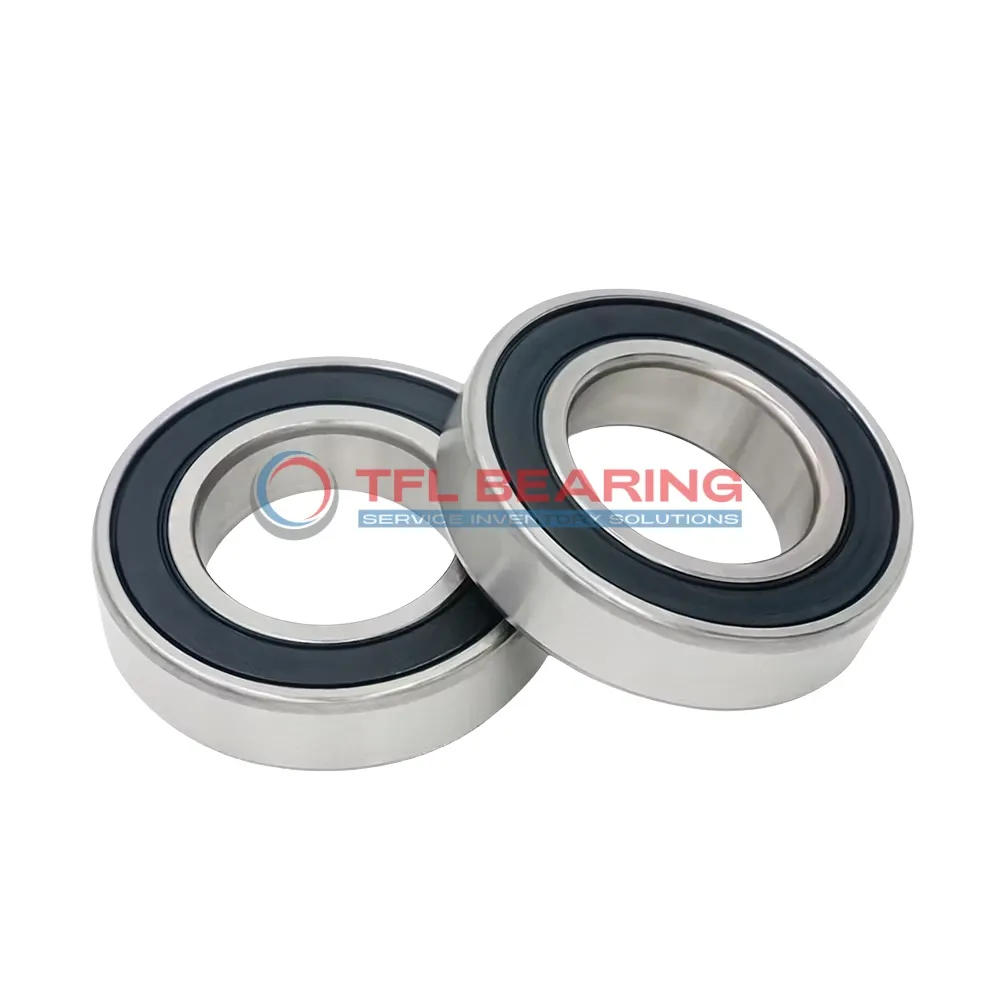

The 6212-RS1/C3 is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, while the C3 radial clearance allows for slight thermal expansion.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 762g, it’s a robust choice for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
Single Row Deep Groove Ball Bearings 6212-RS1/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6212-RS1/C3 Bearing

6212-RS1/C3 Bearing is built with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed design protects against dust and moisture, making it suitable for various environments.

The C3 radial clearance allows for thermal expansion, maintaining performance under different temperatures.
With a dynamic radial load capacity of 1178 lbf, it handles demanding radial loads efficiently.

6212-RS1/C3 Bearing operates smoothly at speeds up to 5,600 rpm, balancing speed and reliability.
Its single-row deep groove design ensures consistent performance in radial load applications.

Application

Industrial Uses of 6212-RS1/C3 Bearing
6212-RS1/C3 Bearing works well in conveyor systems and electric motors, where its sealed design keeps out dust and debris. The C3 clearance helps manage thermal expansion in continuous operation.

Where Is 6212-RS1/C3 Bearing Used?
You’ll often spot 6212-RS1/C3 Bearing in car alternators and water pumps, thanks to its reliable radial load handling. The chrome steel construction ensures longevity even with frequent use.

Built for Heavy-Duty Use: 6212-RS1/C3 Bearing
6212-RS1/C3 Bearing handles tough conditions in agricultural machinery like harvesters and tractors. Its wide temperature range makes it suitable for outdoor equipment.

Automotive vs Industrial: Applications of 6212-RS1/C3 Bearing
In vehicles, 6212-RS1/C3 Bearing supports wheel hubs and transmission systems. For factories, it’s a go-to for pulley systems and gearboxes needing consistent performance.

Perfect Fit for Automation: 6212-RS1/C3 Bearing
6212-RS1/C3 Bearing keeps robotic arms and packaging machines running smoothly with its low-maintenance sealed design. The metric sizing fits most European automation standards.
