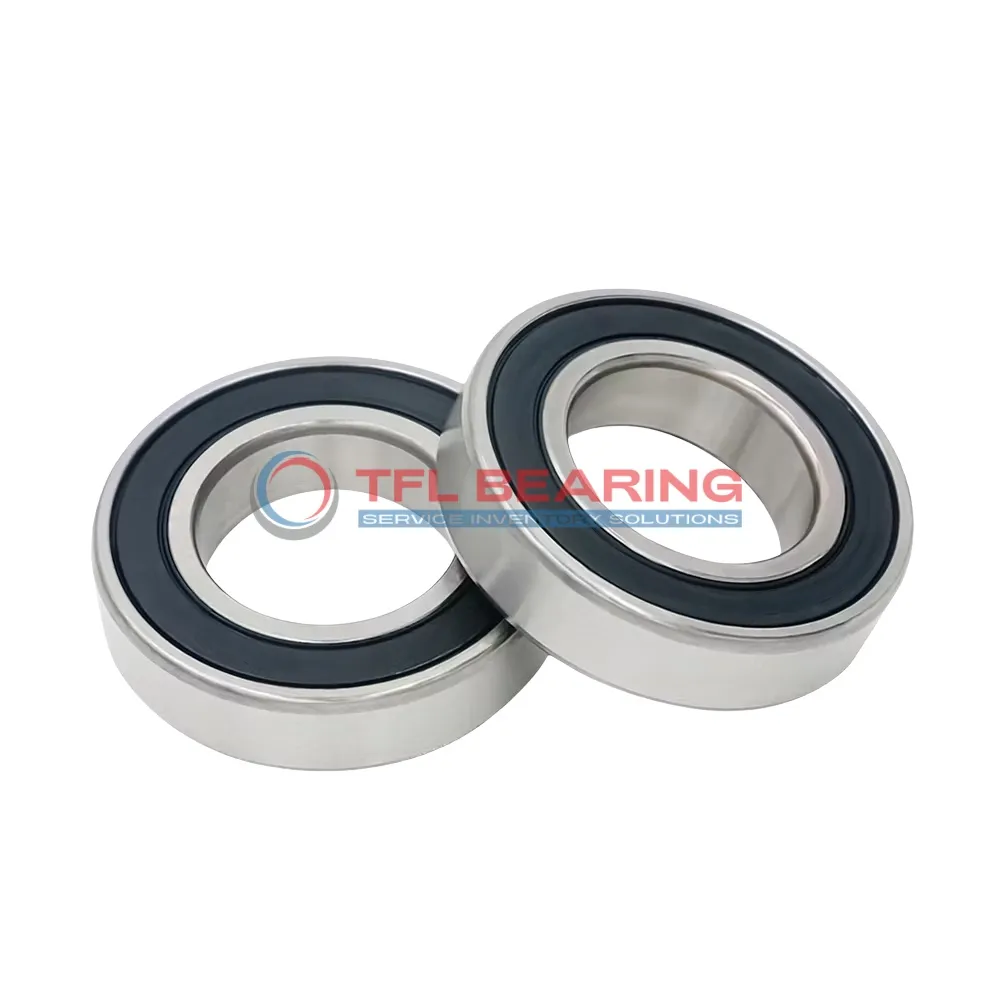

Single Row Deep Groove Ball Bearings 6212-2RSJEM

Single Row Deep Groove Ball Bearings 6212-2RSJEM

The 6212-2RSJEM is a sealed single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds strength and longevity, suitable for temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective replacement option. Ideal for electric motors, pumps, or machinery where radial loads are common.

Weighing 762g, it’s a sturdy choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
  • price（$） 18.252
Single Row Deep Groove Ball Bearings 6212-2RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6212-2RSJEM Bearing for Precision Tasks?

6212-2RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 1178 lbf, it handles demanding tasks efficiently.
The bearing operates smoothly at speeds up to 5,600 rpm, making it suitable for precision machinery.

Application

Common Applications of 6212-2RSJEM Bearing
In industrial settings, 6212-2RSJEM Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6212-2RSJEM Bearing Used?
You’ll often find 6212-2RSJEM Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. The sealed feature also makes it suitable for dusty or wet conditions.

Built for Heavy-Duty Use: 6212-2RSJEM Bearing
6212-2RSJEM Bearing works well in conveyor systems, where its robust design handles continuous operation smoothly. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Automotive vs Industrial: Applications of 6212-2RSJEM Bearing
In cars, 6212-2RSJEM Bearing supports components like fans and pulleys, while in factories, it’s ideal for machinery requiring low-maintenance solutions. Its versatility makes it a go-to choice across sectors.

Perfect Fit for Automation: 6212-2RSJEM Bearing
6212-2RSJEM Bearing is a reliable option for robotic arms and assembly line equipment, where precision and longevity matter. The sealed design reduces downtime by protecting against dirt and debris.
