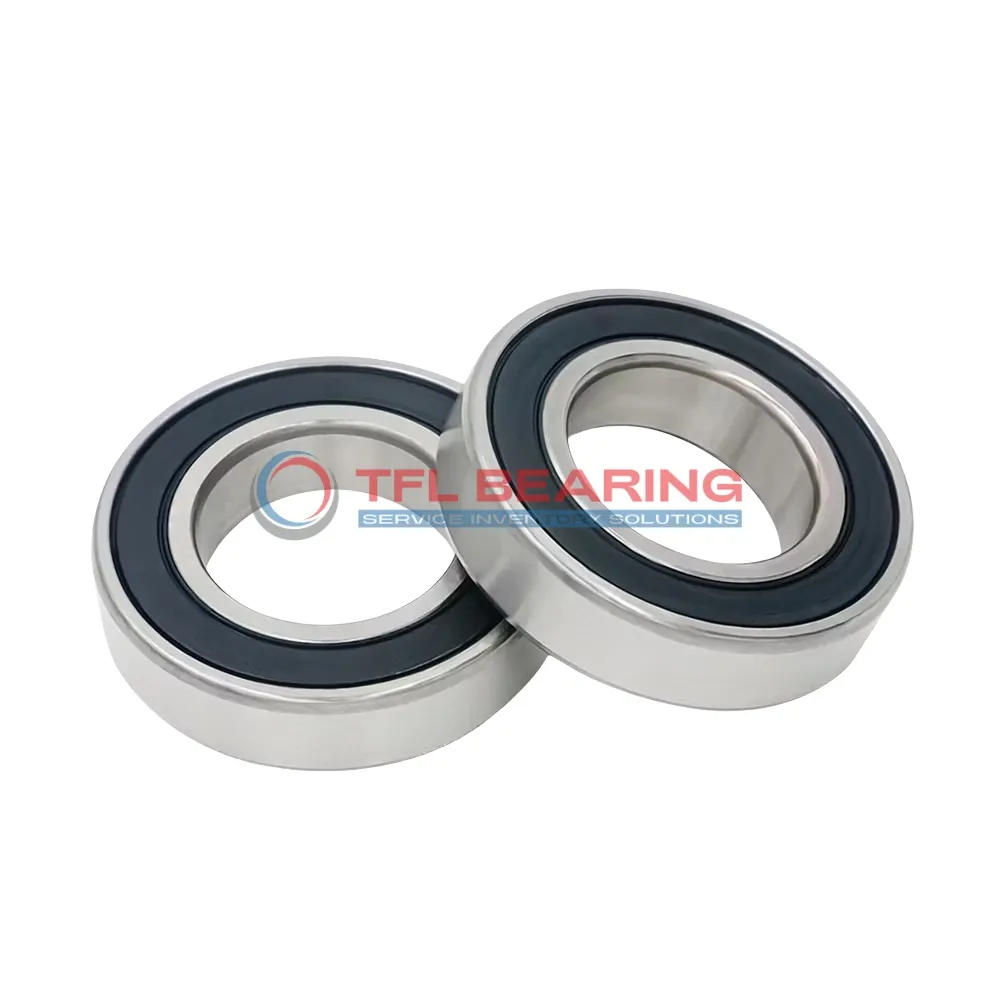

Single Row Deep Groove Ball Bearings 6212-2RS1/GJN

Single Row Deep Groove Ball Bearings 6212-2RS1/GJN

The 6212-2RS1/GJN is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a cost-effective alternative.

Ideal for applications like electric motors or pumps where radial loads and sealed protection are key. Weighing 762g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
  • price（$） 18.252
Single Row Deep Groove Ball Bearings 6212-2RS1/GJN dimension drawing
Download DWG Download PDF

Features

How Does 6212-2RS1/GJN Bearing Reduce Friction?

6212-2RS1/GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.

The sealed design of 6212-2RS1/GJN Bearing protects against contaminants, maintaining consistent performance.
With a maximum speed of 5,600 rpm, it offers reliable operation in various applications.

6212-2RS1/GJN Bearing’s ABEC 1 tolerance class provides consistent precision for everyday use.
The bearing operates efficiently within a temperature range of -30°C to 120°C.

Its static radial load capacity of 8138 lbf makes 6212-2RS1/GJN Bearing suitable for demanding conditions.
The chrome steel cage enhances stability, contributing to longer service life.

Application

Common Applications of 6212-2RS1/GJN Bearing
In industrial settings, 6212-2RS1/GJN Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. Its chrome steel construction ensures long-lasting performance even in demanding environments.

Where Is 6212-2RS1/GJN Bearing Used?
You’ll often find 6212-2RS1/GJN Bearing in automotive applications like wheel hubs and alternators, where its radial load capacity and sealed protection are key. The metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 6212-2RS1/GJN Bearing
This bearing excels in conveyor systems and agricultural machinery, handling radial loads with ease. The sealed design reduces maintenance needs, making it ideal for dusty or wet conditions.

Automotive vs Industrial: Applications of 6212-2RS1/GJN Bearing
In cars, 6212-2RS1/GJN Bearing supports smooth rotation in drivetrain components, while in factories, it’s a go-to for machinery requiring reliable radial load support. Its temperature range suits both environments well.
