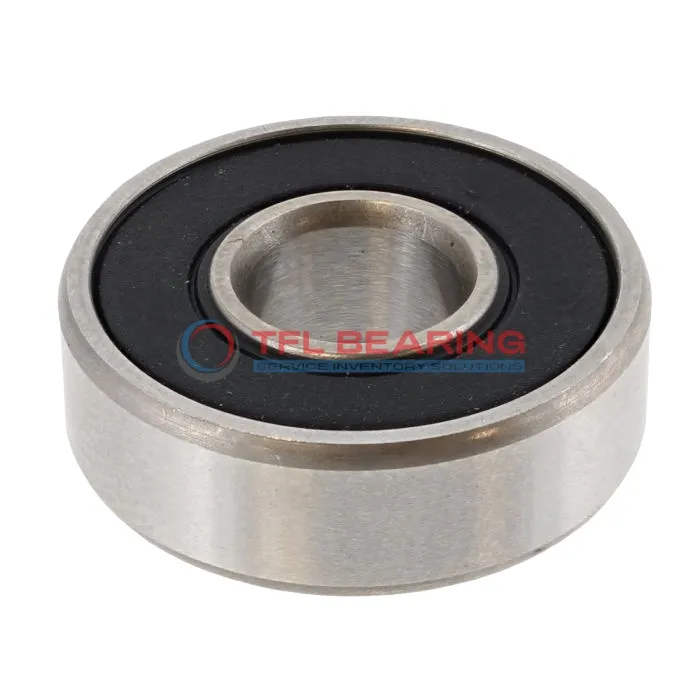

Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64F

Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64F

The 6211-2RS1/C3W64F is a single-row deep groove ball bearing with a 55mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 9757 lbf and runs smoothly at speeds up to 6300 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Perfect for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 599g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6211-2RS1/C3W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 21 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 9757 lbf
  • Static Radial Load 6609 lbf
  • Max Speed 6300 rpm
  • Weight 599 g
  • price（$） 25.515
Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6211-2RS1/C3W64F Bearing

6211-2RS1/C3W64F Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 9757 lbf, making it suitable for demanding applications.

The sealed design of 6211-2RS1/C3W64F Bearing protects against dust and moisture, enhancing durability.
Solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.

6211-2RS1/C3W64F Bearing operates efficiently within a temperature range of -30°C to 120°C.
With a maximum speed of 6,300 rpm, it balances performance and reliability in various conditions.

Application

Common Applications of 6211-2RS1/C3W64F Bearing
6211-2RS1/C3W64F Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 6211-2RS1/C3W64F Bearing is often found in wheel hubs and alternators, providing reliable radial load support. Its chrome steel construction offers durability for long-term use in demanding conditions.

For automation systems, 6211-2RS1/C3W64F Bearing works well in conveyor belts and robotic arms, where its C3 clearance allows for slight misalignments. The sealed design also reduces maintenance needs in high-speed operations.

In household appliances like washing machines, 6211-2RS1/C3W64F Bearing ensures quiet and efficient performance. Its solid oil lubrication means less frequent servicing, making it a practical choice for everyday use.
