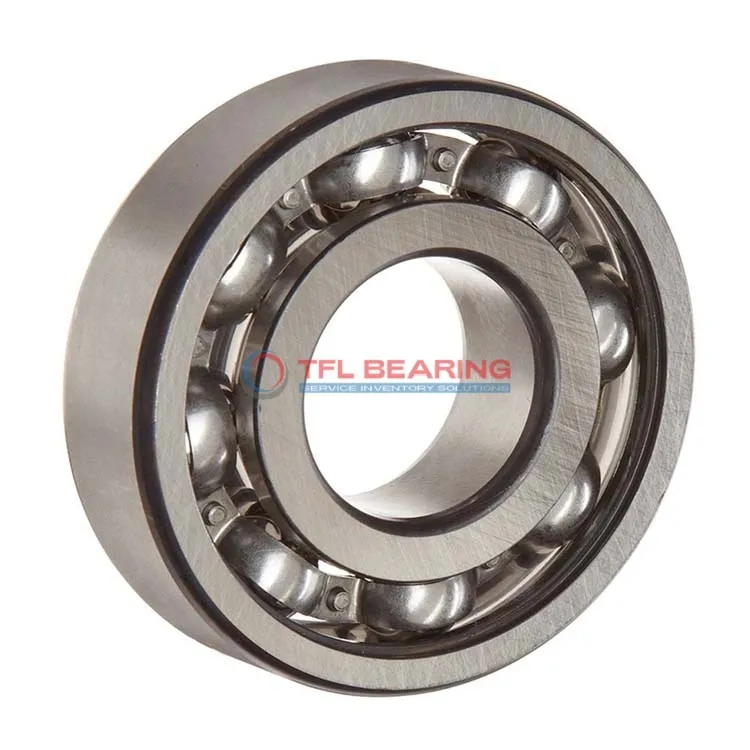

Single Row Deep Groove Ball Bearings 6210/C3W64

Single Row Deep Groove Ball Bearings 6210/C3W64

The 6210/C3W64 is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7891 lbf and spins smoothly at speeds up to 7100 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

With a C3 radial clearance, it’s suited for applications where slight expansion or misalignment might occur. Ideal for electric motors, pumps, or industrial gearboxes needing reliable radial load support.

Weighing 463g, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Max Speed 7100 rpm
  • Weight 463 g
  • price（$） 17.244
Single Row Deep Groove Ball Bearings 6210/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6210/C3W64 Bearing

6210/C3W64 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 7891 lbf, making it suitable for various industrial applications.

The solid oil lubrication ensures consistent performance, reducing the need for frequent maintenance.
With a maximum speed of 7,100 rpm, it delivers reliable operation in demanding conditions.

6210/C3W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The open design simplifies installation, saving time and effort during assembly.
Its durable construction ensures a long service life, reducing replacement costs.

Application

Industrial Uses of 6210/C3W64 Bearing
6210/C3W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

Where Is 6210/C3W64 Bearing Used?
You’ll often find 6210/C3W64 Bearing in automotive applications such as alternators and wheel hubs, thanks to its solid oil lubrication for long-lasting performance. Its chrome steel construction also handles high-speed rotations well.

Perfect Fit for Automation: 6210/C3W64 Bearing
In robotic arms and conveyor systems, 6210/C3W64 Bearing provides reliable radial support with minimal maintenance. The open design and ABEC 1 tolerance make it a versatile choice for precision equipment.

Medical vs Industrial: Where 6210/C3W64 Bearing Excels
While 6210/C3W64 Bearing works well in industrial gearboxes, it’s also found in medical devices like centrifuges due to its consistent performance. The solid oil lubrication ensures quiet operation in sensitive environments.
